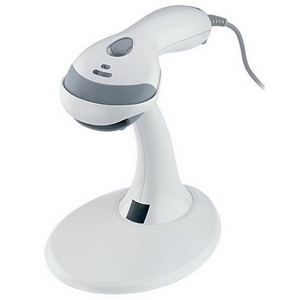

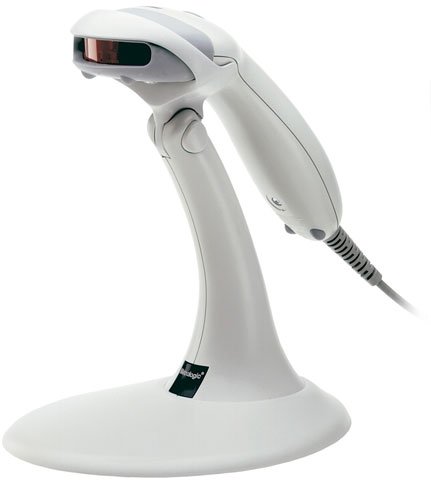

Honeywell MK9540-72A11 Barcode Scanner


0.0

(No reviews)

Be the first to

Write a Review
Metrologic MS9540 Voyager - IBM 468e/9e kit, 1D Laser. Includes IBM 468e/9e cable, power supply, and stand. Color: Gray. Non-Cancelable/Non-Returnable.
All of the features of the MS9540 Voyager, with the addition of Metrologic's exclusive CodeGate.

The MS9540 Voyager features Metrologic's proprietary CodeGate. CodeGate is an intuitive scanning system that is ideal for all scanning applications, including menu-scanning, Point-of-Sale, document processing, and inventory, just to name a few. All units feature a five year warranty.

Technical Information

  • Form Factor: Handheld Scanner
  • Barcode Dimension: 1D
  • Resolution: 5 mil(s)
  • Symbologies Supported:
    • All Standard Symbologies
    • RSS
  • Scanner Type: Laser
  • Scan Rate: 72 lps
  • Interface Options: IBM Port 9E
  • Interface Connectivity: Corded
  • Scan Pattern: Single Line
  • Depth of Field:
    • 0 - 2"@5.2mils
    • 0 - 5"@7.5mils
    • 0 - 7"@10.4mils
    • 0 - 8"@13mils
    • 1 - 10"@21mils

General Information

Physical Characteristics

  • Dimensions:
    • 7.8" (198.12mm) x 3.1" (78.74mm) x 1.6" (40.64mm)
    • 7.8" (198.12mm) x 3.1" (78.74mm) x x 1.6" (40.64mm)
  • Weight: 149 g
  • Color: Gray

Other

  • Package Contents:
    • VoyagerCG MS9540 Scanner
    • Mask Stand
    • Coiled 4-Pos SDL Connector Cable
    • MVC
    • Manuals
  • Cables Included: 4-Pos SDL

Agency Approvals

  • Agency Approvals:
    • Class 1 In accordance with IEC 60825-1:1993+A1:1997+A2:2001
    • Class 1 In accordance with EN 60825-1:1994+A11:1996+A2:2001
    • FCC
    • ICES-003
    • EN55022 Class B

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 40°C (104°F) Operating
    • -40°C (-40°F) to 60°C (140°F) Storage
  • Humidity: 5 to 95%

Warranty

  • Manufacturer Warranty: 5 Year(s)

Full specifications (PDF)

Full specifications (PDF)

Brand Metrologic
Model MS9540 Voyager
Scanner Capability 1D
Form Factor Handheld
Connectivity Corded
Scanner Type Laser
Scan Pattern Single Line, Single Dot
Ruggedness General Purpose


Customer Review Summary

Recommended Accessories for Model: Metrologic MS9540 Voyager Scanner
Honeywell Cable (53-53235-N-3)
USB, black, Type A, 2.9m (9.5'), coiled, host power
In Stock: Ships Same Day
$19.90
+ Add to Quote
Metrologic (46-46128-3)
Black Stand for the MS9540 and MS9520 series scanners
In Stock: Ships Same Day
$20.90
+ Add to Quote
Honeywell Cable (53-53000-3)
RS-232, black, DB-9 female, 2.9m (9.5'), coiled, 5V external power
In Stock: Ships Same Day
$16.70
+ Add to Quote
Metrologic (MX009-2MA7C)
USB HID Cable, Coiled, Dark Gray, for the MS9540/20, MS6520, MS7120 and MS7220. Made to order with 6-8 week lead time.
In Stock: Ships Same Day
$42.60
+ Add to Quote
Metrologic (46-46508)
Wall Mount Stand for Voyagers MS9540, MS9520, MS9544 and MS9524 scanners
In Stock: Ships Same Day
$20.90
+ Add to Quote

The Metrologic MK9540-72A11 is also known as Metrologic Instruments MET-MS954072A11 or MK954072A11 .
