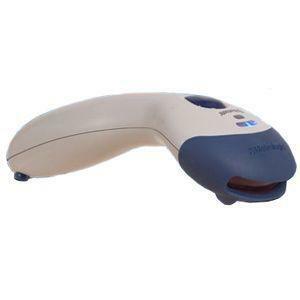

Metrologic MS9535 Voyager BT – Barcode Scanner – Cordless – 1D

Part Number: MK9535-79B5M38

Model: MS9535 Voyager BT

Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

Connectivity

Cordless

Form Factor

Handheld

Scanner Capability

Scanner Type

Laser

Product Description:

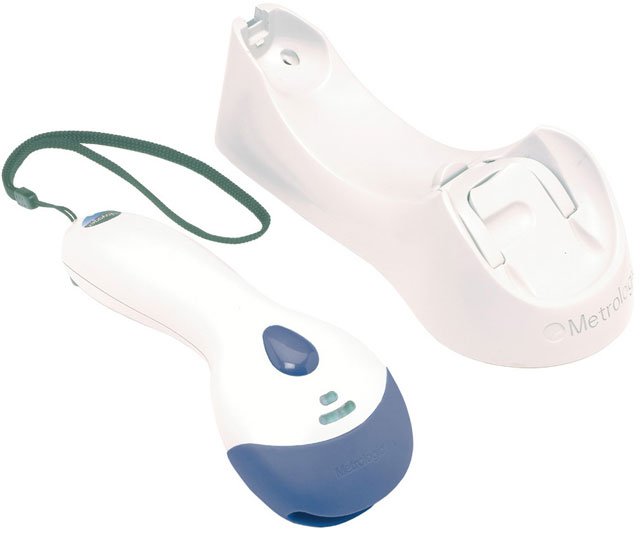

USB kit, 1D Laser, Cordless, Expanded Memory. Includes scanner, cradle, RS-232 cradle to host cable, power supply, and battery. Color: White.

Explore all Metrologic MS9535 Voyager BT Barcode Scanners

Add to Quote

Metrologic MK9535-79B5M38 Barcode Scanner

Overview

Full specifications (PDF)

Metrologic MS9535 Voyager BT Barcode Scanner Model Overview

The MS9535 Voyager BT is a wireless handheld scanner and is among the first of its kind to employ the emerging Bluetooth wireless technology standard. Designed for use in POS or light warehousing applications, VoyagerBT can communicate with its own base station or with other already-equipped Bluetooth devices such as PC's, laptops and barcode printers.

Metrologic MK9535-79B5M38 Barcode Scanner Overview

Metrologic VoyagerBT MS9535 is a wireless, laser bar code scanner designed for low to medium throughput Point of Sale (POS) or light warehouse applications where the convenience of a wireless hand held scanner is needed.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Wireless

Scanning Capability:

Barcode Symbology Supported:

All Standard 1D Symbologies
RSS-14
RSS-Expanded
RSS-Limited

Light Source:

Laser

Maximum Scan Resolution:

5 mil

Depth of Field:

0" - 2"@5.2mil
0" - 5"@7.5mil
0" - 7"@10.4mil
0" - 8"@13mil
1" - 10"@21mil

Scan Pattern:

Single Line

Scanning Distance:

32.81 ft

Cable Type Included:

USB

Network & Communication

Bluetooth:

Yes

Interfaces/Ports

Host Interface:

Multi-interface

Power Description

Input Voltage:

5 V DC

Power Supply Included:

Yes

Physical Characteristics

Color:

Gray

Height:

7.8"

Width:

1.8"

Depth:

1.6"

Weight (Approximate):

7 oz

Miscellaneous

Package Contents:

VoyagerBT MS9535 Bar Code Reader
USB Cable
Power Supply

Additional Information:

Supported Interfaces:

Keyboard Wedge
Serial
IBM 468X/469X
USB

USB Cable separate

Certifications & Standards:

CE
cULus
RoHS

EMC:

FCC
ICES-003
EN55022 Class B

Laser Class 1:

IEC 60825-1:1993+A1:1997+A2:2001
EN 60825-1:1994+A11:1996+A2:2001

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0777786902957

UPC: 777786902957

EAN: 0777786902957

UNSPSC: 43211701
