Metrologic MS9535 Voyager BT – Barcode Scanner – Cordless – 1D

Part Number: MK9535-79B547
Model: MS9535 Voyager BT
Add to My Shopping List Add to Compare
Discontinued See Replacement
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Connectivity
Cordless
Scanner Capability
1D
Scanner Type
Laser

Product Description:

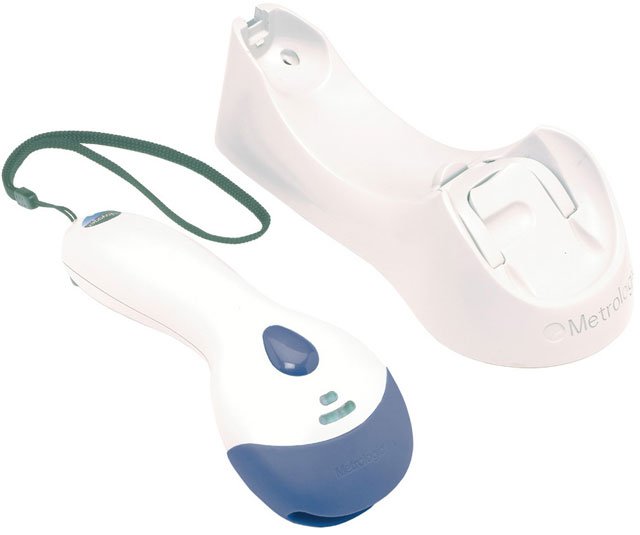

  PS/2 kit, 1D Laser, Cordless. Includes scanner, cradle, PS/2 cradle to host cable, power supply, and battery. Color: White.
Explore all Honeywell Voyager Series Barcode Scanners
Add to Quote
Metrologic MK9535-79B547 Barcode Scanner
Metrologic MK9535-79B547 Barcode Scanner
Metrologic MK9535-79B547 Barcode Scanner
Metrologic MK9535-79B547 Barcode Scanner Metrologic MK9535-79B547 Barcode Scanner Metrologic MK9535-79B547 Barcode Scanner
Full specifications (PDF)

Honeywell Voyager Series Barcode Scanner Model Overview

The Honeywell Voyager Series offers high performance scanning, a futuristic design and a more intuitive scanning system than other scanners. Choose the Voyager Series for the extensive connectivity options, the ease-of-use friendly to both beginners and experienced users, the sturdy construction, the variety of programming options and more!
Metrologic MK9535-79B547 Barcode Scanner Overview

VoyagerBT MS9535 is a wireless, laser Bar Code Reader designed for low to medium throughput Point of Sale (POS) or light warehouse applications where the convenience of a wireless hand held scanner is needed.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
1D
Barcode Symbology Supported:
  • All Standard Symbologies
  • RSS
Light Source:
Laser
Scan Rate:
72 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0" - 2"@5.2mil
  • 0" - 5"@7.5mil
  • 0" - 7"@10.4mil
  • 0" - 8"@13mil
  • 1" - 10"@21mil
Scan Pattern:
Single Line
Scanning Distance:
33 ft
Stand Included:
Yes
Network & Communication
Bluetooth:
Yes
Interfaces/Ports
Host Interface:
Keyboard Wedge
Power Description
Input Voltage:
110 V AC
Power Supply Included:
Yes
Physical Characteristics
Color:
Gray
Height:
7.8"
Width:
3.1"
Depth:
1.6"
Weight (Approximate):
7.02 oz
Miscellaneous
Package Contents:
  • VoyagerBT MS9535 Bar Code Reader
  • 110V Power Supply
  • Footprint Stand
  • Straight Cable
  • Cradle
  • Manuals
Additional Information:
  • Roll, Pitch, Yaw: 42°, 68°, 52°
  • Profile Support: Serial Port Profile (SPP)
  • Bluetooth Version: v1.1 compliant
  • Termination: Base 10 pin modular RJ45
  • Cable: Base 7 ft straight
  • Input Voltage: Base
  • DC Transformers: Scanner: none; Base: Class 2; 5.2 VDC @ 2 A
  • Current Charging: 2 A
  • Recharge Time: 2.5 hours
  • Battery Capacity: 12,000 scans (max)
  • Radio Range: 33 ft
  • Frequency: 2.4 - 2.48 GHz (frequency hopping)

System Interfaces:

  • PC Keyboard Wedge
  • RS232
  • Light Pen Emulation
  • Stand Alone Keyboard
  • USB (low speed and full speed)

USB Cable separate

Platform Supported:
PC
Certifications & Standards:

Laser Class:

  • Class 1 In accordance with IEC 60825-1:1993+A1:1997+A2:2001
  • Class 1 In accordance with EN 60825-1:1994+A11:1996+A2:2001

EMC:

  • FCC
  • ICES-003
  • EN55022 Class B
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43211701
