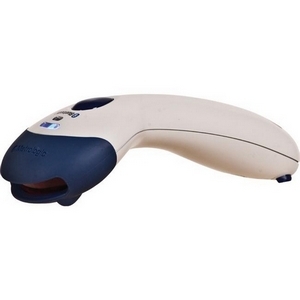

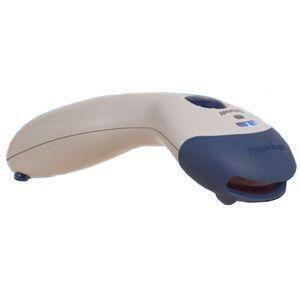

Metrologic MS9535 Voyager BT – Barcode Scanner – Cordless – 1D

Part Number: MK9535-39B5M38

Model: MS9535 Voyager BT

Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

Connectivity

Cordless

Form Factor

Handheld

Scanner Capability

Scanner Type

Laser

Product Description:

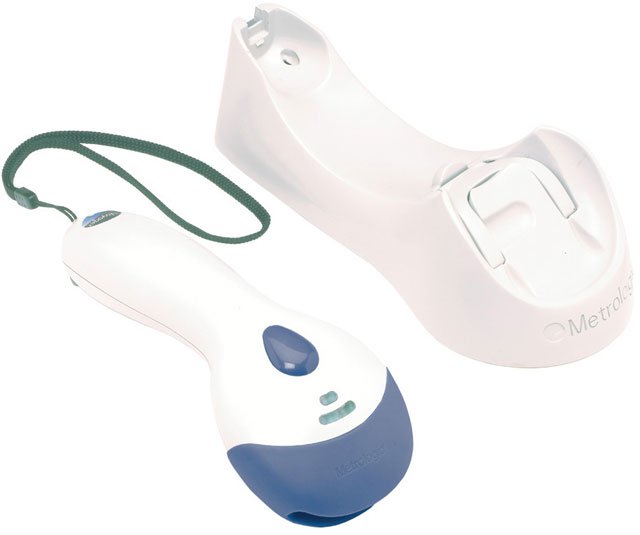

USB kit, 1D Laser,Cordless, Expanded Memory. Includes scanner, cradle, USB cradle to host cable, power supply, and battery. Color: Black.

Explore all Metrologic MS9535 Voyager BT Barcode Scanners

Add to Quote

Metrologic MK9535-39B5M38 Barcode Scanner

Overview

Full specifications (PDF)

Metrologic MS9535 Voyager BT Barcode Scanner Model Overview

The MS9535 Voyager BT is a wireless handheld scanner and is among the first of its kind to employ the emerging Bluetooth wireless technology standard. Designed for use in POS or light warehousing applications, VoyagerBT can communicate with its own base station or with other already-equipped Bluetooth devices such as PC's, laptops and barcode printers.

Metrologic MK9535-39B5M38 Barcode Scanner Overview

The Metrologic VoyagerBT MS9535 Bar Code Reader combine the freedom of Bluetooth technology with many of the outstanding features found in all Voyager series hand-held, single-line scanner the industry benchmark for value and performance. In addition to automatic infrared activation for bar code detection, model come equipped with Metrologic patented CodeGate and RangeGate technology.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Wireless

Scanning Capability:

Barcode Symbology Supported:

All Standard Symbologies

Light Source:

Laser

Maximum Scan Resolution:

5 mil

Depth of Field:

0" - 2"@5.2mil
0" - 5"@7.5mil
0" - 7"@10.4mil
0" - 8"@13mil
1" - 10"@21mil

Scan Pattern:

Single Line

Scanning Distance:

32.81 ft

Network & Communication

Bluetooth:

Yes

Interfaces/Ports

Host Interface:

Multi-interface

Power Description

Input Voltage:

5.2 V DC

Physical Characteristics

Color:

Black

Height:

7.8"

Width:

1.8"

Depth:

1.6"

Weight (Approximate):

7.02 oz

Miscellaneous

Package Contents:

VoyagerBT MS9535 Bar Code Reader
Cable
Memory
Power Suply

Additional Information:

Interface Option:

Keyboard Wedge
USB

USB Cable separate

Certifications & Standards:

LED Class:

Class 1; IEC60825-1:1993+A1:1997+A2:2001
Class 1; EN60825-1:1994/A11:1996+A2:2001

EMC:

FCC
ICES-003 & EN55022 Class B
FCC
ICES-003 & EN55022 Class A for FS USB
IBM

Warranty

Limited Warranty:

2 Year

Item Numbers

UNSPSC: 43211701
