Metrologic MK9520-77A38 Barcode Scanner

Honeywell MK9540-77A38 Barcode Scanner A newer version of this item is available.
It is replaced by the Honeywell MK9540-77A38 Barcode Scanner.
Metrologic MS9520 Voyager - USB kit, 1D Laser. Inlcudes USB cable, hard mount, and stand. Color: Gray.
  • Minimizes your manual entry and provides reliable scanning in a durable form factor
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
  • Scan barcodes with a staggering speed of 72 scan/s
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

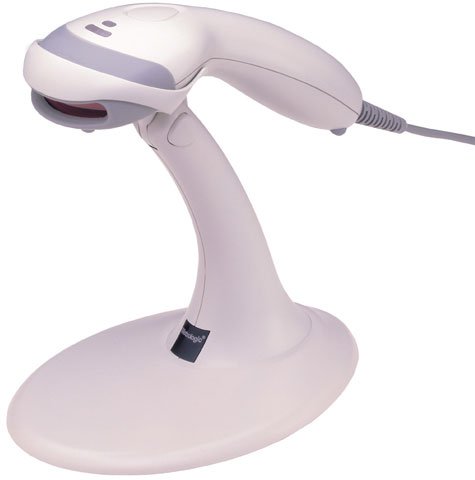

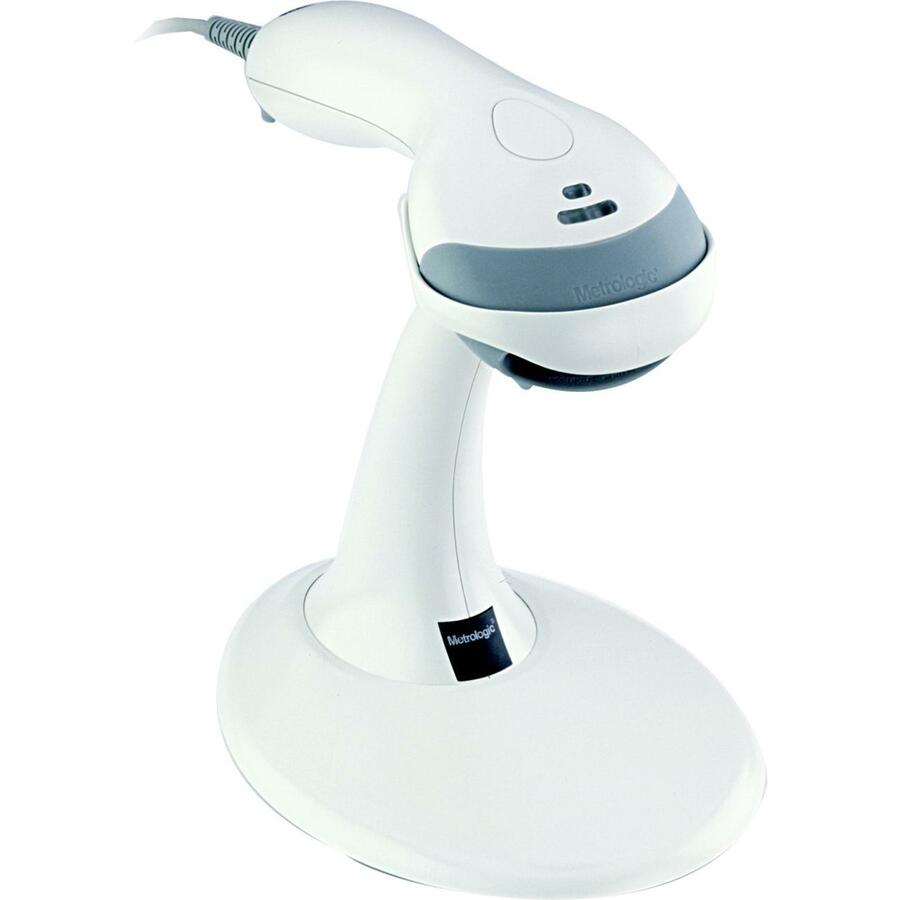

Metrologic MS9520 Voyager Barcode Scanner Model Overview
The MS9520 Voyager can be used as both a handheld and fixed projection scanner. The MS9520 Voyager is packed with all of the same features as the MS9540, with the exception of CodeGate. All units feature a five year warranty.
Metrologic MK9520-77A38 Barcode Scanner Overview

The Metrologic Voyager MS9520 Bar Code Reader is a hand-held, single-line scanners have united form with function to become the industry benchmark for value and performance. These sleek scanners feature a patented automatic infrared activation and decode all standard 1D bar codes, including RSS codes.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • All Standard 1D Symbologies
Light Source:
Laser
Scan Rate:
72 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0" - 2"@5.2mil
  • 0" - 5"@7.5mil
  • 0" - 7"@10.4mil
  • 0" - 8"@13mil
  • 1" - 10"@21mil
Scan Pattern:
Single Line
Cable Type Included:
USB
Stand Included:
Yes
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
White
Height:
7.8"
Width:
4"
Depth:
1.6"
Weight (Approximate):
5.26 oz
Miscellaneous
Package Contents:
  • Voyager MS9520 Bar Code Reader
  • USB Cable
  • Stand
Additional Information:

Supported Interfaces:

  • Serial
  • USB
  • Keyboard Wedge
  • OCIA
  • IBM 468X/469X
  • Light Pen Emulation
  • Laser Emulation
  • Certifications & Standards:

    Laser Class 1:

    • Class 1; IEC60825-1:1993/A1:1997+A2:2001
    • Class 1; EN60825-1:1994/A11:1996+A2:2001

    EMC:

    • FCC Class B
    Environmentally Friendly:
    Yes
    Environmental Certification:
    • WEEE
    • RoHS
    Item Numbers
    GTIN: 2002502100002, 4016138604948, 4250204911121, 5711045296116
    EAN: 2002502100002, 4016138604948, 4250204911121, 5711045296116
    UNSPSC: 43211701
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Metrologic MK9520-77A38 Barcode Scanner is also known as MET-MK952077A38 or MK952077A38.
