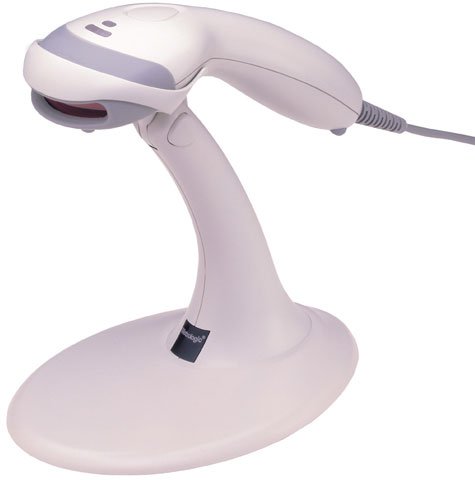

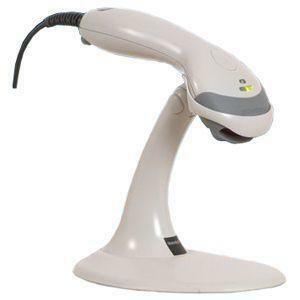

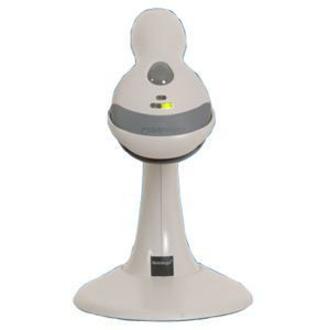

Metrologic MK9520-72B47 Barcode Scanner

Metrologic MK9540-72B47 Barcode Scanner A newer version of this item is available.
It is replaced by the Metrologic MK9540-72B47 Barcode Scanner.
Metrologic MS9520 Voyager - PS/2 kit, 1D Laser. Includes PS/2 cable, PS/2 to AT/XT adapter, and stand. Color: Gray.
Connectivity
Corded
Form Factor
Handheld
Interface Options
PS/2 Keyboard Wedge
Scanner Capability
1D
Scanner Type
Laser
  • Minimizes your manual entry and provides reliable scanning in a durable form factor
  • Perfect for applications that require direct association with a workstation or a notebook
  • Powerful laser scan source provides 72 scan/s decode rate
  • Scan barcodes with a staggering speed of 72 scan/s
Read More
Metrologic MS9520 Voyager Barcode Scanner Model Overview
The MS9520 Voyager can be used as both a handheld and fixed projection scanner. The MS9520 Voyager is packed with all of the same features as the MS9540, with the exception of CodeGate. All units feature a five year warranty.
Metrologic MK9520-72B47 Barcode Scanner Overview

Voyager MS9520 is auto-trigger, single-line laser Bar Code Reader designed for decoding all standard 1D bar codes, including RSS codes. Its sleek, futuristic design certainly catch your attention. But looks get you only so far, its performance and value that really count. It is here that Voyager excels and sets new industry standards.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • All Standard Symbologies
  • RSS
Light Source:
Laser
Scan Rate:
72 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0" - 2"@5.2mil
  • 0" - 5"@7.5mil
  • 0" - 7"@10.4mil
  • 0" - 8"@13mil
  • 1" - 10"@21mil
Scan Pattern:
Single Line
Scanning Distance:
8"
Interfaces/Ports
Host Interface:
Keyboard Wedge
Power Description
Input Voltage:
5 V DC
Power Supply Included:
Yes
Physical Characteristics
Color:
White
Height:
7.8"
Width:
1.8"
Depth:
1.6"
Weight (Approximate):
5.26 oz
Miscellaneous
Package Contents:
  • Voyager MS9520 Bar Code Reader
  • Power Supply
  • Keyboard Wedge Cable
Additional Information:
  • Laser Power: 0.96 mW (peak)
  • Scan Pattern: Single scan line
  • Roll, Pitch, Yaw: 42°, 68°, 52°
  • Termination: 10 pin modular RJ45
  • DC Transformers: Class 2; 5.2 VDC @ 650 mA

System Interfaces:

  • PC Keyboard Wedge
  • RS232
  • OCIA
  • Light Pen Emulation
  • Non-decode Emulation
  • IBM 468X/469X
  • Stand Alone Keyboard
  • USB (low speed and full speed)

USB Cable separate

Platform Supported:
PC
Certifications & Standards:

Laser Class:

  • Class 1 In accordance with IEC 60825-1:1993+A1:1997+A2:2001
  • Class 1 In accordance with EN 60825-1:1994+A11:1996+A2:2001

EMC:

  • FCC Class B
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0000004523611, 0132017635255, 0778889978528, 0783555046012
UPC: 000004523611, 132017635255, 778889978528, 783555046012
EAN: 0000004523611, 0132017635255, 0778889978528, 0783555046012
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Metrologic MK9520-72B47 Barcode Scanner is also known as MET-MK952072B47 or MK952072B47.
