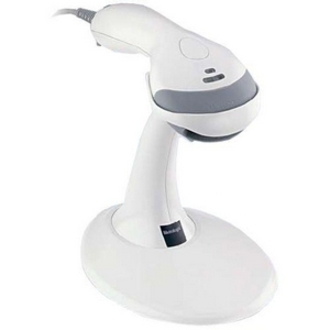

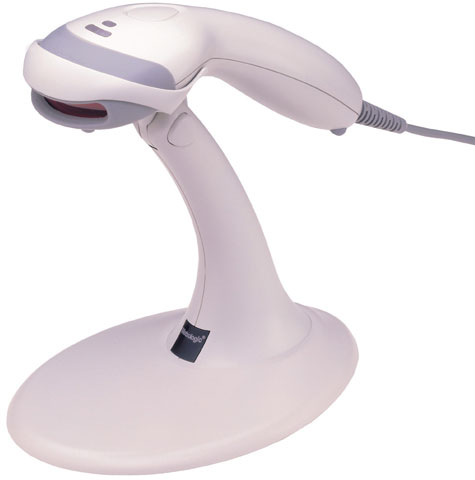

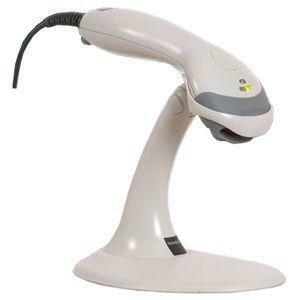

Metrologic MS9520 Voyager – Barcode Scanner – Corded – 1D

Part Number: MK9520-37A38
Model: MS9520 Voyager
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Corded
Form Factor
Handheld
Interface Options
USB
Scanner Capability
1D

Product Description:

  USB kit, 1D Laser, Hardmount Plate. Includes USB cable and stand. Color: Black.
Explore all Metrologic MS9520 Voyager Barcode Scanners
Add to Quote
Metrologic MK9520-37A38 Barcode Scanner
Metrologic MK9520-37A38 Barcode Scanner
Metrologic MK9520-37A38 Barcode Scanner
Metrologic MK9520-37A38 Barcode Scanner
Metrologic MK9520-37A38 Barcode Scanner Metrologic MK9520-37A38 Barcode Scanner Metrologic MK9520-37A38 Barcode Scanner Metrologic MK9520-37A38 Barcode Scanner
Full specifications (PDF)

Metrologic MS9520 Voyager Barcode Scanner Model Overview

The MS9520 Voyager can be used as both a handheld and fixed projection scanner. The MS9520 Voyager is packed with all of the same features as the MS9540, with the exception of CodeGate. All units feature a five year warranty.
Metrologic MK9520-37A38 Barcode Scanner Overview

Voyager MS9520 is a high performance single line laser Bar Code Reader with automatic activation and sophisticated data transmission. It works auto trigger operation. It decodes all standard 1D, RSS-14, RSS Limited, and RSS expanded bar codes

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • All Standard 1D Symbologies
  • RSS
Light Source:
Laser
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0" - 8"@13mil
Scan Pattern:
Single Line
Interfaces/Ports
Host Interface:
USB
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
Black
Height:
7.8"
Width:
1.8"
Depth:
1.6"
Weight (Approximate):
5.25 oz
Miscellaneous
Package Contents:
  • Voyager MS9520 Bar Code Reader
  • MetroSelect Single-Line Configuration Guide
  • MS9500 Voyager Series Single-Line Hand Held Laser Scanner User's Guide
Additional Information:

USB Cable

USB Cable separate

Certifications & Standards:

Laser Class:

  • Laser Class 1 In accordance with IEC 60825-1:1993+A1:1997+A2:2001
  • Laser Class 1 In accordance with EN 60825-1:1994+A11:1996+A2:2001

EMC:

  • FCC
  • ICES-003
  • EN55022 Class B
Item Numbers
GTIN: 0132017655017, 0650361191468, 0682017457628, 0783555037195, 4016138604931, 5052461709126, 5711045226694, 8437014323061
UPC: 132017655017, 650361191468, 682017457628, 783555037195
EAN: 0132017655017, 0650361191468, 0682017457628, 0783555037195, 4016138604931, 5052461709126, 5711045226694, 8437014323061
UNSPSC: 43211701
