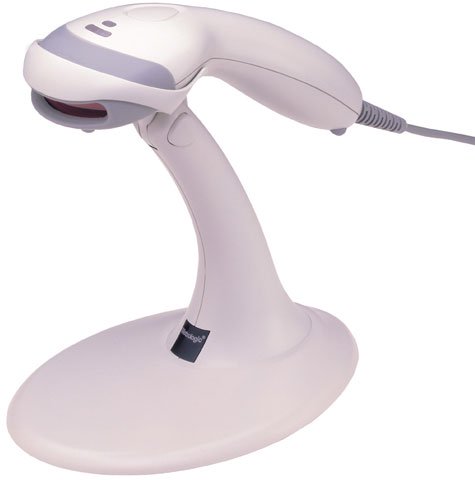

Metrologic MS9520 Voyager – Barcode Scanner – Corded – 1D

Part Number: MK9520-32B47
Model: MS9520 Voyager
Add to My Shopping List Add to Compare
Discontinued See Replacement
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Corded
Form Factor
Handheld
Interface Options
PS/2 Keyboard Wedge
Scanner Capability
1D

Product Description:

  PS/2 kit, 1D Laser. Includes PS/2 cable, PS/2 to AT/XT adapter, and stand. Color: Black.
Explore all Metrologic MS9520 Voyager Barcode Scanners
Add to Quote
Metrologic MK9520-32B47 Barcode Scanner
Metrologic MK9520-32B47 Barcode Scanner
Metrologic MK9520-32B47 Barcode Scanner
Metrologic MK9520-32B47 Barcode Scanner
Metrologic MK9520-32B47 Barcode Scanner Metrologic MK9520-32B47 Barcode Scanner Metrologic MK9520-32B47 Barcode Scanner Metrologic MK9520-32B47 Barcode Scanner
Full specifications (PDF)

Metrologic MS9520 Voyager Barcode Scanner Model Overview

The MS9520 Voyager can be used as both a handheld and fixed projection scanner. The MS9520 Voyager is packed with all of the same features as the MS9540, with the exception of CodeGate. All units feature a five year warranty.
Metrologic MK9520-32B47 Barcode Scanner Overview

The Metrologic Voyager MS9520 hand-held, single-line scanner have united form with function to become the industry benchmark for value and performance. This sleek scanner feature a patented automatic infrared activation and decode all standard 1D bar codes, including RSS codes.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • All Standard 1D Symbologies
Light Source:
Laser
Scan Rate:
72 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0" - 2"@5.2mil
  • 0" - 5"@7.5mil
  • 0" - 7"@10.4mil
  • 0" - 8"@13mil
  • 1" - 10"@21mil
Scan Pattern:
Single Line
Scanning Distance:
8"
Interfaces/Ports
Host Interface:
Keyboard Wedge
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
Black
Height:
7.8"
Width:
3.1"
Depth:
1.6"
Weight (Approximate):
5.26 oz
Miscellaneous
Package Contents:
  • Voyager MS9520 Bar Code Reader
  • MetroSelect Single-Line Configuration Guide
  • MS9500 Voyager Series Single-Line Hand Held Laser Scanner User's Guide
Platform Supported:
PC
Certifications & Standards:

Laser Class:

  • CDRH: Class II
  • EN60825-1:1994/A11:1996 Class 1

EMC:

  • FCC
  • ICES-003 Class B
  • EN55022 Class B
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0000004243045, 0132017635002
UPC: 000004243045, 132017635002
EAN: 0000004243045, 0132017635002
UNSPSC: 43211701

Recommended Accessories

Category

  • Cables, Connectors, and Adapters (7)
  • Computer Accessories (7)
  • Mounting Hardware and Stands (6)
  • Power Device (1)
  • Scanner Accessories (21)

Recommended Accessories for Model: Metrologic MK9520-32B47 Barcode Scanner

Top Cables, Connectors, and Adapters Purchased With Metrologic MK9520-32B47

See All Cables, Connectors, and Adapters for Metrologic MK9520-32B47 Barcode Scanner >

Top Computer Accessories Purchased With Metrologic MK9520-32B47

  • Metrologic 53-53000F-3 Accessory
    Metrologic 53-53000F-3 Accessory
    Cable (RS232, 9 POSTN, Female D, Black) for the MS7120, MS9520 and MS9540. See MX009-3MA7S or MX009-3MA7C for USB keyboard emulation or MX009-3MA8S or MX009-3MA8C for USB Serial emulation. Call for details.
    Item on backorder — chat for lead time
    $21.86
    Add to Quote
  • Honeywell 53-53002-N-3 Accessory
    Honeywell 53-53002-N-3 Accessory
    Keyboard Wedge, black, 2.9m (9.5'), coiled, host power. Non-Cancelable/Non-Returnable.
    Item on backorder — chat for lead time
    $30.09
    Add to Quote
  • Honeywell 53-53020-3 Accessory
    Honeywell 53-53020-3 Accessory
    Single keyboard cable, black, 2.9m (9.5'), coiled, 5V external power. Non-Cancelable/Non-Returnable.
    Item on backorder — chat for lead time
    $24.29
    Add to Quote
See All Computer Accessories for Metrologic MK9520-32B47 Barcode Scanner >

Top Mounting Hardware and Stands Purchased With Metrologic MK9520-32B47

See All Mounting Hardware and Stands for Metrologic MK9520-32B47 Barcode Scanner >

Top Power Device Purchased With Metrologic MK9520-32B47

  • Honeywell 46-00525-6 Power Device
    Honeywell 46-00525-6 Power Device
    Accessory, Honeywell Power Supply, 1A Output Current, 90 to 255 AC Input Voltage, North American Plug, Compatible with Select Honeywell Scanners.
    In Stock
    $53.38
    Add to Quote

Top Scanner Accessories Purchased With Metrologic MK9520-32B47

  • Metrologic 45-45988 Accessory
    Metrologic 45-45988 Accessory
    Adapter Cable (AT/XT to PS2) for the MS9520, MS9540 and MS6720 printers
    Item on backorder — chat for lead time
    Please Call for Pricing or to Purchase
  • Honeywell 46-00525 Accessory
    Honeywell 46-00525 Accessory
    Power supply, North American plug, 1A output current, 90 to 255 AC input voltage, 50-60 Hz, 5.2 VDC
    Item on backorder — chat for lead time
    Please Call for Pricing or to Purchase
  • Honeywell 46-46128 Accessory
    Honeywell 46-46128 Accessory
    Mask Stand for the Voyagers - MS9540, MS9520, MS9544 and MS9524 series scanners. Color : Light Gray
    Item on backorder — chat for lead time
    $35.40
    Add to Quote
See All Scanner Accessories for Metrologic MK9520-32B47 Barcode Scanner >
The Metrologic MK9520-32B47 Barcode Scanner is also known as MET-MK952032B47 or MK952032B47.
