Metrologic MS9520 Voyager – Barcode Scanner – Corded – 1D

Part Number: MK9520-32B41

Model: MS9520 Voyager

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Connectivity

Corded

Form Factor

Handheld

Interface Options

Serial

Scanner Capability

Product Description:

RS-232 kit, 1D Laser. Includes RS-232 cable, power supply, and stand. Color: Black.

Explore all Metrologic MS9520 Voyager Barcode Scanners

Add to Quote

Overview

Full specifications (PDF)

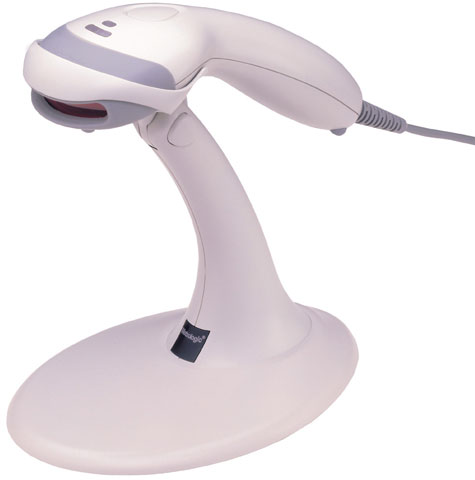

Metrologic MS9520 Voyager Barcode Scanner Model Overview

The MS9520 Voyager can be used as both a handheld and fixed projection scanner. The MS9520 Voyager is packed with all of the same features as the MS9540, with the exception of CodeGate. All units feature a five year warranty.

Metrologic MK9520-32B41 Barcode Scanner Overview

Voyager MS9520 is auto-trigger, single-line laser Bar Code Reader designed for decoding all standard 1D bar codes, including RSS codes. Its sleek, futuristic design certainly catch your attention. But looks get you only so far, its performance and value that really count. It is here that Voyager excels and sets new industry standards.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

All Standard Symbologies
RSS

Light Source:

Laser

Maximum Scan Resolution:

5 mil

Depth of Field:

0" - 8"@13mil
0" - 2"@5.2mil
0" - 7"@10.4mil

Scan Pattern:

Single Line

Stand Included:

Yes

Interfaces/Ports

Host Interface:

Serial

Power Description

Input Voltage:

110 V AC

Power Supply Included:

Yes

Physical Characteristics

Color:

Black

Height:

7.8"

Width:

3.1"

Depth:

1.6"

Weight (Approximate):

5.26 oz

Miscellaneous

Package Contents:

Voyager MS9520 Bar Code Reader
110V Power Supply
Mask Stand
Coiled 9-pin Female Connector Cable
Manuals

Additional Information:

USB Cable separate

Certifications & Standards:

Laser Class:

Class 1 In accordance with IEC 60825-1:1993+A1:1997+A2:2001
Class 1 In accordance with EN 60825-1:1994+A11:1996+A2:2001

EMC:

FCC
ICES-003
EN55022 Class B

Warranty

Limited Warranty:

5 Year

Item Numbers

GTIN: 0132017635170, 0361122222702, 0682017452654, 0722868699478, 0783555036778, 0801096960953, 0853585489421, 4923773128930, 4923773137109

UPC: 132017635170, 361122222702, 682017452654, 722868699478, 783555036778, 801096960953, 853585489421

EAN: 0132017635170, 0361122222702, 0682017452654, 0722868699478, 0783555036778, 0801096960953, 0853585489421, 4923773128930, 4923773137109

UNSPSC: 43211701
