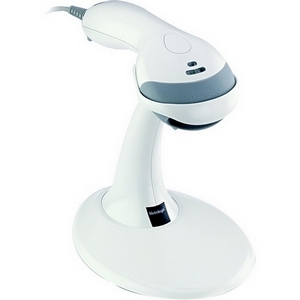

Metrologic MS9520 Voyager – Barcode Scanner – Corded – 1D

Part Number: MK9520-32A62
Model: MS9520 Voyager
Add to My Shopping List Add to Compare
Discontinued See Replacement
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Corded
Form Factor
Handheld
Interface Options
Verifone Ruby
Scanner Capability
1D

Product Description:

  Verifone Ruby kit, 1D Laser. Includes Verifone Ruby cable and stand. Color: Black.
Explore all Metrologic MS9520 Voyager Barcode Scanners
Add to Quote
Metrologic MK9520-32A62 Barcode Scanner
Metrologic MK9520-32A62 Barcode Scanner
Metrologic MK9520-32A62 Barcode Scanner
Metrologic MK9520-32A62 Barcode Scanner
Metrologic MK9520-32A62 Barcode Scanner Metrologic MK9520-32A62 Barcode Scanner Metrologic MK9520-32A62 Barcode Scanner Metrologic MK9520-32A62 Barcode Scanner
Full specifications (PDF)

Metrologic MS9520 Voyager Barcode Scanner Model Overview

The MS9520 Voyager can be used as both a handheld and fixed projection scanner. The MS9520 Voyager is packed with all of the same features as the MS9540, with the exception of CodeGate. All units feature a five year warranty.
Metrologic MK9520-32A62 Barcode Scanner Overview

Voyager MS9520 Bar Code Reader is a high performance single line laser Bar Code Reader. It is designed for decoding all standard 1D bar codes, including RSS codes. It's sleek, futuristic designs certainly catch your attention. But looks get you only so far, it's performance and value that really count. It is here that Voyager excels and sets new industry standards.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • All Standard 1D Symbologies
  • RSS-14
  • RSS-Limited
  • RSS-Expanded
Light Source:
Laser
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0" - 2"@5.2mil
  • 0" - 5"@7.5mil
  • 0" - 7"@10.4mil
  • 0" - 8"@13mil
  • 1" - 10"@21mil
Scan Pattern:
Single Line
Stand Included:
Yes
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
Black
Height:
7.8"
Width:
3.1"
Depth:
1.6"
Weight (Approximate):
5.25 oz
Miscellaneous
Package Contents:
  • Voyager MS9520 Bar Code Reader
  • Mask Stand
  • Coiled Cable
  • MVC
  • Manuals
Additional Information:

Supported Interfaces:

  • Keyboard Wedge
  • RS232
  • IBM 468X/469X
  • USB

USB Cable separate

Certifications & Standards:

Laser:

  • Class 1 IEC 60825-1:1993+A1:1997+A2:2001
  • EN 60825-1:1994+A11:1996+A2:2001

EMC:

  • FCC
  • EN55022 ClassB
  • ICES-003
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0024606616465
UPC: 024606616465
EAN: 0024606616465
UNSPSC: 43211701
