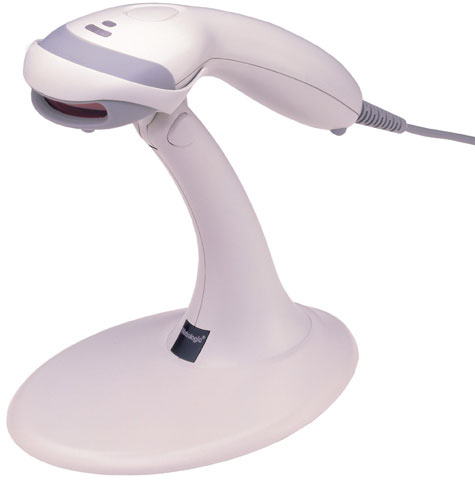

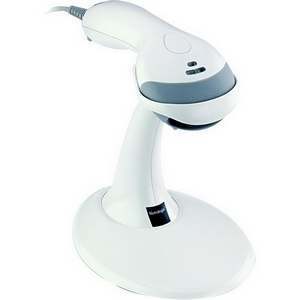

Metrologic MS9520 Voyager – Barcode Scanner – Corded – 1D

Part Number: MK9520-32A47
Model: MS9520 Voyager
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Corded
Form Factor
Handheld
Interface Options
PS/2 Keyboard Wedge
Scanner Capability
1D

Product Description:

  PS/2 kit, 1D Laser. Includes PS/2 coiled cable and stand. Color: Black.
Explore all Metrologic MS9520 Voyager Barcode Scanners
Add to Quote
Metrologic MK9520-32A47 Barcode Scanner
Metrologic MK9520-32A47 Barcode Scanner
Metrologic MK9520-32A47 Barcode Scanner
Metrologic MK9520-32A47 Barcode Scanner
Metrologic MK9520-32A47 Barcode Scanner Metrologic MK9520-32A47 Barcode Scanner Metrologic MK9520-32A47 Barcode Scanner Metrologic MK9520-32A47 Barcode Scanner
Full specifications (PDF)

Metrologic MS9520 Voyager Barcode Scanner Model Overview

The MS9520 Voyager can be used as both a handheld and fixed projection scanner. The MS9520 Voyager is packed with all of the same features as the MS9540, with the exception of CodeGate. All units feature a five year warranty.
Metrologic MK9520-32A47 Barcode Scanner Overview

The Metrologic's Voyager MS9520 Bar Code Reader is a hand-held, single line reader that has united form with function in becoming the industry benchmark for value and performance. This sleek retail scanner features patented automatic infrared activation and decodes all standard 1D bar codes, including RSS codes. Standard features include EAS antenna integration for tag deactivation, power save mode, data editing, OPOS/JPOS compatibility for easy installation and user-replaceable cables.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • All Standard 1D Symbologies
  • RSS
Light Source:
Laser
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0" - 2"@5.2mil
  • 0" - 5"@7.5mil
  • 0" - 7"@10.4mil
  • 0" - 8"@13mil
  • 1" - 10"@21mil
Scan Pattern:
Single Line
Stand Included:
Yes
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
Black
Height:
7.8"
Width:
1.8"
Depth:
1.6"
Weight (Approximate):
5.26 oz
Miscellaneous
Package Contents:
  • Voyager MS9520 Bar Code Reader
  • Cable
  • Stand
Additional Information:

Supported Interfaces:

  • Serial
  • Keyboard Wedge
  • OCIA
  • IBM 468X/469X
  • USB

USB Cable separate

Certifications & Standards:
  • RoHS Compliant

Laser Class:

  • Class 1; IEC60825-1:1993/A1:1997+A2:2001
  • Class 1; EN60825-1:1994/A11:1996+A2:2001

EMC:

  • FCC Class B
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
UNSPSC: 43211701
