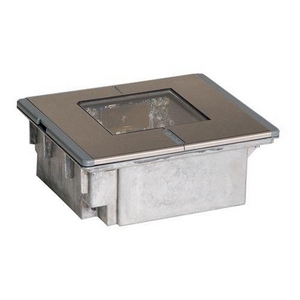

Metrologic MK7625-71B41 Barcode Scanner

A newer version of this item is available.
It is replaced by the Honeywell MK7625-71B41-6 Barcode Scanner.

Metrologic MS7600 - RS-232 kit. Includes RS-232 cable, power supply, stainless steel top & standard glass. Non-Cancelable/Non-Returnable.

Connectivity

Corded

Form Factor

In Counter

Interface Options

Serial

Scanner Capability

Scanner Type

Laser, Omnidirectional

Perfect for applications that require direct association with a workstation or a notebook
Powerful laser scan source provides 2000 scan/s decode rate
Scan barcodes with a staggering speed of 2000 scan/s

Need a different version? See all Metrologic Horizon 7600 Barcode Scanners

Discontinued See Replacement

Chat Now for Qty Discount

Add to Quote

Overview

Full specifications (PDF)

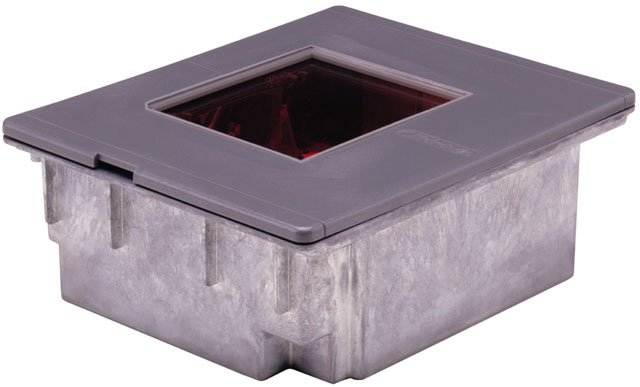

Metrologic Horizon 7600 Barcode Scanner Model Overview

Horizon 7600 is Metrologic's next generation in-counter laser barcode scanner. The compact, hands-free Horizon 7600 scanner is designed with a dense 20-line omnidirectional scan pattern that helps provide fast, efficient throughput with a high first-pass read rate. The Horizon 7600 laser scanner is durable with die-cast construction to withstand even the harshest environments.

Metrologic MK7625-71B41 Barcode Scanner Overview

Horizon MS7625 is an in-counter laser Bar Code Reader. This compact, hands-free scanner is designed with a dense 20-line omnidirectional scan pattern that helps provide fast, efficient throughput with a high first-pass read rate. MS7625's top plate is of stainless steel and the glass used is standard.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

All Standard 1D Symbologies
RSS-14
RSS-Limited
RSS-Expanded

Light Source:

Laser

Scan Rate:

2000 scan/s

Maximum Scan Resolution:

5 mil

Depth of Field:

0" - 1.5"@5.2mil
0" - 4.5"@7.5mil
0" - 7"@10.4mil
0" - 8"@13mil
0" - 9"@19.5mil

Scan Pattern:

Omni-directional

Scanning Distance:

Interfaces/Ports

Host Interface:

Serial

Power Description

Input Voltage:

5.2 V DC

Power Supply Included:

Yes

Physical Characteristics

Color:

Gray

Height:

7.6"

Width:

Depth:

3.5"

Weight (Approximate):

6.35 lb

Miscellaneous

Package Contents:

Horizon MS7625 Bar Code Reader
110V Power Supply
9-pin Female Straight Cable
Manuals

Additional Information:

Laser Power: 1.1 mW (peak)
Scan Pattern: 5 fields of 4 parallel lines (omnidirectional)
Number of Scan Lines: 20
Roll, Pitch, Yaw: 360°, 60°, 60°
Termination: Three 10-pin modular RJ45
DC Transformers: Class II; 5.2 VDC @ 1 A

System Interfaces:

PC Keyboard Wedge
RS232
OCIA
Light Pen Emulation
IBM 468x/469x
Stand Alone PC Keyboard
USB (low speed and full speed)

USB Cable separate

Compatibility:

OPOS and JPOS system

Certifications & Standards:

Laser Class:

IEC 60825-1:1993 + A1:1997 + A2:2001 Class 1

EMC:

FCC
ICES-003 & EN55022 Class A

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0097914461027

UPC: 097914461027

EAN: 0097914461027

UNSPSC: 43211701
