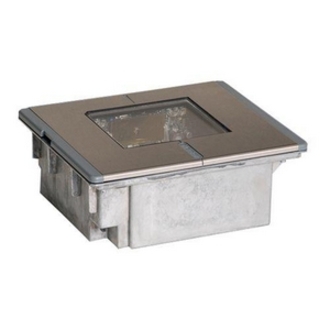

Metrologic MK7620-71B41 Barcode Scanner

The Metrologic MK7620-71B41 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Metrologic MS7600 - RS-232 kit. Includes RS-232 cable, power supply, high impact plastic top & standard glass.

Metes out excellent operation and rugged structure with smart retailing features which is an ideal choice for bundling terminals, businesses, supermarkets and grocery stores
Wired connectivity makes this scanner ideal for retail and desktop applications
Laser scan engine guarantees rapid error free data entry

Need a different version? See all Metrologic Horizon 7600 Barcode Scanners

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

Metrologic Horizon 7600 Barcode Scanner Model Overview

Horizon 7600 is Metrologic's next generation in-counter laser barcode scanner. The compact, hands-free Horizon 7600 scanner is designed with a dense 20-line omnidirectional scan pattern that helps provide fast, efficient throughput with a high first-pass read rate. The Horizon 7600 laser scanner is durable with die-cast construction to withstand even the harshest environments.

Metrologic MK7620-71B41 Barcode Scanner Overview

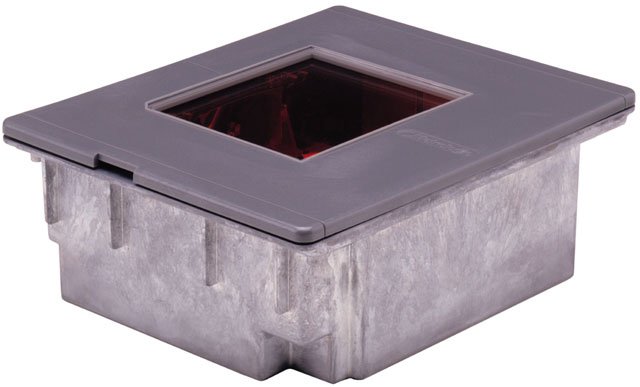

Horizon MS7620 is a compact in-counter hands free laser Bar Code Reader designed with a

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

All Standard Symbologies

Light Source:

Laser

Maximum Scan Resolution:

5 mil

Depth of Field:

0" - 1.5"@5.2mil
0" - 4.5"@7.5mil
0" - 7"@10.4mil
0" - 8"@13mil
0" - 9"@19.5mil

Scan Pattern:

Omni-directional

Cable Type Included:

Serial

Interfaces/Ports

Host Interface:

Multi-interface

Power Description

Input Voltage:

5.2 V DC

Power Supply Included:

Yes

Physical Characteristics

Color:

Gray

Height:

7.6"

Width:

Depth:

3.5"

Weight (Approximate):

6.35 lb

Miscellaneous

Package Contents:

Horizon MS7620 Bar Code Reader
110V Power Supply
RS-232 Cable

Additional Information:

Supported Interfaces:

Keyboard Wedge

Serial

OCIA

IBM 468X/469X

USB

Certifications & Standards:

Laser Class:

IEC 60825-1:1993 + A1:1997 + A2:2001 Class 1

EMC:

FCC
ICES-003
EN55022 Class A

Warranty

Limited Warranty:

2 Year

Item Numbers

UNSPSC: 43211701

Reviews

Q&A

Accessories

Service Contracts

Get help from a Barcoding Expert!

The Metrologic MK7620-71B41 Barcode Scanner is also known as MET-MS7620-71B41 or MK762071B41.
