Metrologic MK7320-71C41 Barcode Scanner

The Metrologic MK7320-71C41 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

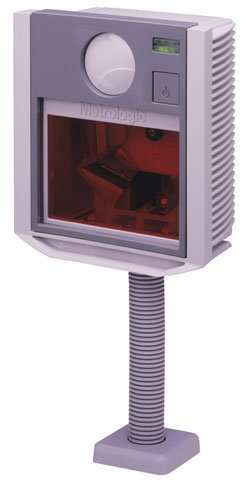

Metrologic MS7320 InVista - MS7320 InVista Scanner (Omnidirectional, RS232 Interface, 220V and Flex Stand)
Scanner Capability
1D
Scanner Type
Omnidirectional
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
Read More
Metrologic MS7320 InVista Barcode Scanner Model Overview
The Metrologic MS7320 InVista offers an outstanding combination of features, versatility, performance, and durability. This fixed mount laser barcode scanner provides ease of use and high throughput speeds by featuring a large, dynamic, and aggressive scan volume. Each MS7320 InVista is shipped with an integrated EAS deactivation antenna that provides simultaneous scanning and deactivation of security tags, which are used to reduce shrink in retail applications. The small footprint takes up minimal counter space while maximizing flexibility with the use of the multi-positioning stand. The setup and integration are simplified by using barcode menus or Windows based software. Supporting multiple interfaces, MS7320 InVista is compatible with almost every POS system currently on the market. The RS232 auxiliary port allows for handheld scanners or other peripherals to be connected quickly and easily.

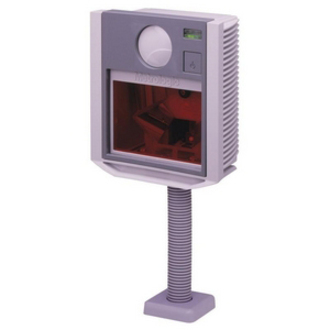

Metrologic MK7320-71C41 Barcode Scanner Overview

Metrologic's InVista MS7320 Bar Code Reader offers an outstanding combination of features, versatility, performance, and durability. This fixed mount laser Bar Code Reader provides ease of use and high throughput speeds by featuring a large, dynamic, and aggressive scan volume.

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • Autodiscriminates all standard bar codes
  • RSS-14
  • RSS-Limited
  • RSS-Expanded
Light Source:
Laser
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0" - 8.5"@13mil
  • 0" - 1"@5.2mil
  • 0" - 5"@7.5mil
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Serial
Power Description
Input Voltage:
220 V AC
Physical Characteristics
Form Factor:
Desktop
Color:
Gray
Height:
7.3"
Width:
6.6"
Depth:
3.9"
Weight (Approximate):
2.65 lb
Miscellaneous
Additional Information:

USB Cable separate

Certifications & Standards:

Laser Class:

  • CDRH: Class IIa
  • EN60825-1:1994/A11:1996 Class 1

EMC:

  • FCC
  • ICES-003
  • EN55022 Class A
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Metrologic MK7320-71C41 Barcode Scanner is also known as MET-MS732071C41 or MK732071C41.
