Metrologic MK6720-73A07 Barcode Scanner

The Metrologic MK6720-73A07 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Metrologic MS6720 - USB kit. Includes USB cable & adjustable stand.
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
Read More

Need a different version? See all Metrologic MS6720 Barcode Scanners

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Metrologic MK6720-73A07 Barcode Scanner
Metrologic MK6720-73A07 Barcode Scanner Metrologic MK6720-73A07 Barcode Scanner Metrologic MK6720-73A07 Barcode Scanner Metrologic MK6720-73A07 Barcode Scanner
Metrologic MK6720-73A07 Barcode Scanner
Metrologic MK6720-73A07 Barcode Scanner
Metrologic MK6720-73A07 Barcode Scanner
Metrologic MK6720-73A07 Barcode Scanner
Full specifications (PDF)
Metrologic MS6720 Barcode Scanner Model Overview
MS6720 Omni-Directional: The MS6720 features both short-range and long-range activation, user-friendly programming, reliability and versatility. Operators are sure to appreciate the convenience and flexibility.
Metrologic MK6720-73A07 Barcode Scanner Overview

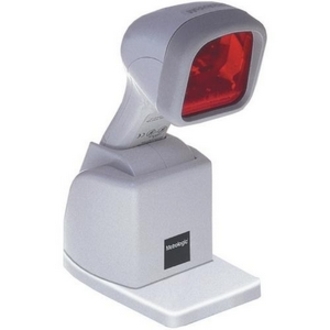

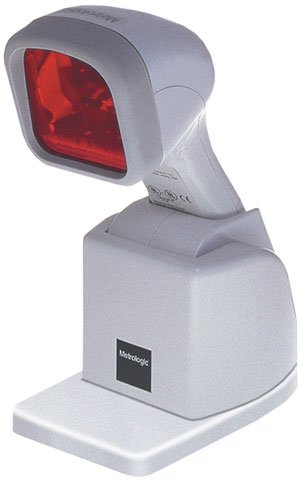

MS6720 is an omnidirectional hand-held and fixed projection scanner. It incorporates a 20-line scan pattern into a comfortable, ergonomic style.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • All Standard Symbologies
  • RSS
Light Source:
Laser
Maximum Scan Resolution:
5.70 mil
Depth of Field:
  • 0" - 8"@13mil
  • 0" - 4"@5.7mil
  • 0" - 6"@7.5mil
Scan Pattern:
Omni-directional
Stand Included:
Yes
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Color:
Gray
Height:
8.6"
Width:
3"
Depth:
2.9"
Weight (Approximate):
13.40 oz
Miscellaneous
Package Contents:
  • MS6720 Bar Code Reader
  • Adjustable Stand
  • Coiled Type A Connector Cable
  • Manuals
  • Clip
Additional Information:

Supported Interfaces:

  • Keyboard Wedge
  • RS232
  • IBM 468X/469X

USB Cable separate

Certifications & Standards:

Laser Class:

  • IEC 60825-1:1993+A1:1997+A2:2001 Class 1

EMC:

  • FCC
  • ICES-003
  • EN55022 Class B
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Metrologic MK6720-73A07 Barcode Scanner is also known as MET-MS672073A07 or MK672073A07.
