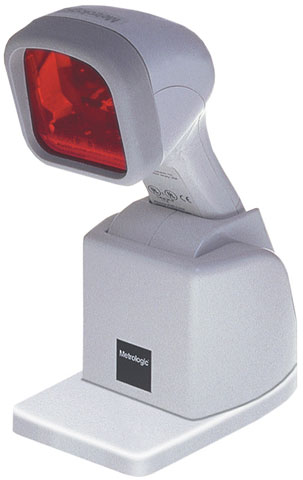

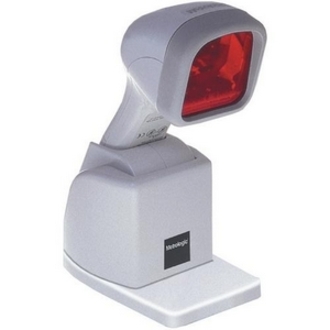

Honeywell MK6720-72B47 Barcode Scanner


(No reviews)

Be the first to

Write a Review
Metrologic MS6720 - Keyboard wedge kit. Includes PS/2 cable, PS/2 to AT/XT adapter & adjustable stand. Color: light gray.
The first laser barcode scanner to bridge the gap between omnidirectional fixed projection and handheld scanners.

MS6720 Omnidirectional: The MS6720 features both short-range and long-range activation, user-friendly programming, reliability and versatility. Operators are sure to appreciate the convenience and flexibility.

Technical Information

  • Form Factor: Handheld Scanner
  • Barcode Dimension: 1D
  • Resolution: 5.7 mil(s)
  • Symbologies Supported:
    • All Standard Symbologies
    • RSS
  • Scanner Type: Laser
  • Scan Rate: 1000 lps
  • Interface Options: Keyboard Wedge
  • Interface Connectivity: Corded
  • Scan Pattern: Omnidirectional
  • Input Voltage: 110 V AC
  • Power Supply: Included
  • Depth of Field:
    • 0 - 8"@13mils
    • 0 - 4"@5.7mils
    • 0 - 6"@7.5mils

General Information

  • Manufacturer: Metrologic
  • Product Name: MS6720 Barcode Scanner

Physical Characteristics

  • Dimensions: 8.6" (218.44mm) x 3.0" (76.2mm) x 2.9" (73.66mm)
  • Weight: 380 g
  • Color: Gray


  • Package Contents:
    • MS6720 Barcode Scanner
    • 110V Power Supply
    • Adjustable Stand
    • Coiled Dual Din Connector Cable
    • Manuals
    • Wall Clip
  • Cables Included: Keyboard Wedge

Agency Approvals

  • Agency Approvals:
    • IEC 60825-1:1993+A1:1997+A2:2001 Class 1
    • FCC
    • ICES-003
    • EN55022 Class B

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 40°C (104°F) Operating
    • -40°C (-40°F) to 60°C (140°F) Storage
  • Humidity: 5 to 95%


  • Manufacturer Warranty: 2 Year(s)

Full specifications (PDF)


Customer Review Summary

Recommended Accessories for Model: Metrologic MS6720 Scanner
Protect Your Product

The Metrologic MK6720-72B47 is also known as Metrologic Instruments MET-MS672047 or MK672072B47 .
