Metrologic MS6520 Cubit – Barcode Scanner – 1D

Part Number: MK6520-72B47
Model: MS6520 Cubit
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  keyboard wedge kit. Includes PS/2 cable & PS/2 to AT/XT adapter. Color: light gray.
Explore all Metrologic MS6520 Cubit Barcode Scanners
Add to Quote
Metrologic MK6520-72B47 Barcode Scanner
Metrologic MK6520-72B47 Barcode Scanner
Metrologic MK6520-72B47 Barcode Scanner
Metrologic MK6520-72B47 Barcode Scanner Metrologic MK6520-72B47 Barcode Scanner Metrologic MK6520-72B47 Barcode Scanner
Full specifications (PDF)

Metrologic MS6520 Cubit Barcode Scanner Model Overview

The Metrologic MS6520 Cubit is a compact, omnidirectional scanning engine for use in OEM applications. The simple, yet rugged design of MS6520 Cubit is ideal for applications including reverse vending machines, kiosk, time/attendance, and price-lookup systems.
Metrologic MK6520-72B47 Barcode Scanner Overview

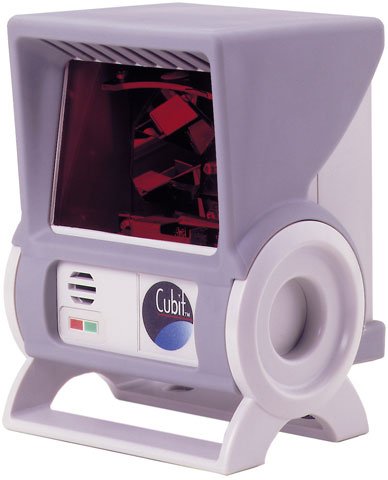

Cubit is a compact, omnidirectional bar code scanner with a mounting bracket for counter top or wall mount scanning in a variety of retail applications.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • Autodiscriminates all standard bar codes, including RSS
Light Source:
Laser
Scan Rate:
1000 scan/s
Scanning Distance:
7"
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Height:
3.3"
Width:
4.1"
Depth:
5.3"
Weight (Approximate):
1.01 lb
Miscellaneous
Additional Information:
  • Laser Power: 0.674 mW (peak)
  • Scan Pattern: 5 fields of 4 parallel lines (omnidirectional)
  • Number of Scan Lines: 20
  • Termination: 10 position modular RJ45 connector
  • Roll, Pitch, Yaw: 360°, 60°, 60°
  • Cable: Optional 9' coiled

System Interfaces:

  • RS232
  • Light Pen Emulation
  • Keyboard Wedge
  • Stand Alone Keyboard
  • USB (low speed and full speed)

USB Cable separate

Platform Supported:
PC
Certifications & Standards:

Laser Class:

  • CDRH: Class IIa
  • EN60825-1:1994/A11:1996 Class 1

EMC:

  • FCC
  • ICES-003
  • EN55022 Class A
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43211701
