Metrologic MK3780-71A47 Barcode Scanner

The Metrologic MK3780-71A47 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Metrologic MS3780 Fusion - PS/2 Kit. Omni-Directional Laser. Includes PS/2 cable and stand. Power supply not included. Color: Light Gray. Non-Cancelable/Non-Returnable.
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
Read More
Discontinued Need Assistance?
Add to Quote

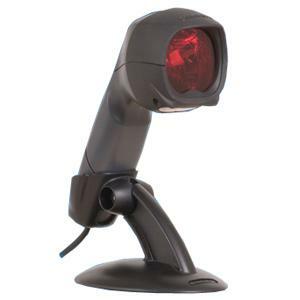

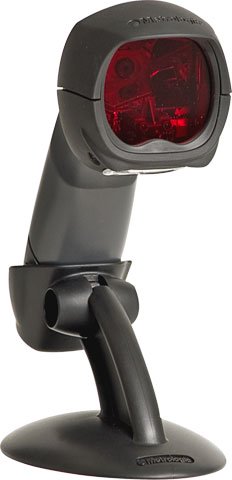

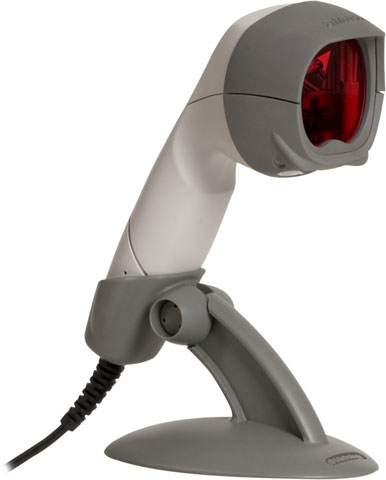

Metrologic Fusion 3780 Barcode Scanner Model Overview
The Metrologic Fusion 3780 Handheld/Hands-Free Scanner has a primary 20-line omnidirectional scan pattern that allows for aggressive scanning of barcodes in any orientation or with a push of a button can switch to a targeted single line for menu scanning. This feature of the Fusion 3780 provides the ability to pass over other barcodes, selecting only the required code. No other scanner offer quite as much control as the Fusion 3780. Hands free operation in the stand for presentation scanning reduces operator fatigue and multiple sleep modes reduce power consumption. The Fusion 3780's optional EAS integration allows users to deactivate and EAS tag and decode a barcode in a single scan.
Metrologic MK3780-71A47 Barcode Scanner Overview

Metrologic Fusion combines omnidirectional and single-line laser bar code scanning into a lightweight, ergonomic hand-held form factor. The 20-line scan pattern provides superior scanning over existing single-line scanners making Fusion ideal for medium-volume retailers including specialty stores, pharmacies, liquor stores, and convenience stores. An adjustable stand with three locking positions provides flexibility for the user to position the scanner for individual comfort and optimal performance. Stabilized with a weighted metal base, the stand may also be hard-mounted to counters or walls.

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • Autodiscriminates all standard 1D bar codes
  • RSS-Expanded
  • RSS-14
  • RSS-14 Limited
Light Source:
Laser
Maximum Scan Resolution:
5 mil
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Color:
Light Gray
Height:
2.9"
Width:
2.6"
Depth:
7.4"
Weight (Approximate):
6.90 oz
Miscellaneous
Package Contents:
  • Fusion MS3780 Barcode Scanner
  • MS3780 User's Guide
  • MetroSelect Configuration Guide
Additional Information:

Interfaces Supported:

  • RS-232
  • Keyboard Wedge
  • Stand Alone Keyboard
  • IBM 468x/469x
  • USB
  • OCIA

USB Cable separate

Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 4054318749461
EAN: 4054318749461
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Metrologic MK3780-71A47 Barcode Scanner is also known as MET-MK3780-71A47 or MK378071A47.
