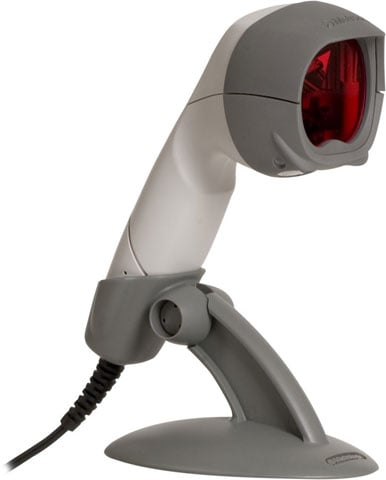

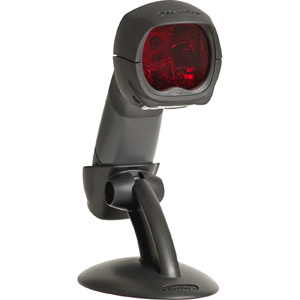

Honeywell MK3780-71A38 Barcode Scanner

Metrologic MS3780 Fusion - Corded Scanner, Metrologic MS3780 Fusion, 1D Laser/Omnidirectional, General Purpose, USB, Presentation, USB Cable/Stand, Gray
  • At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
  • Perfect for applications that require direct association with a workstation or a notebook
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
Read More
$313.00
Temporarily out of stock; available to order

Full specifications (PDF)

Handheld laser scanner increases retail checkout system efficiency!
The Metrologic Fusion 3780 Handheld/Hands-Free Scanner has a primary 20-line omnidirectional scan pattern that allows for aggressive scanning of barcodes in any orientation or with a push of a button can switch to a targeted single line for menu scanning. This feature of the Fusion 3780 provides the ability to pass over other barcodes, selecting only the required code. No other scanner offer quite as much control as the Fusion 3780. Hands free operation in the stand for presentation scanning reduces operator fatigue and multiple sleep modes reduce power consumption. The Fusion 3780's optional EAS integration allows users to deactivate and EAS tag and decode a barcode in a single scan.
Metrologic MK3780-71A38 Overview

Fusion MS3780 Bar Code Reader is an affordable hand-held omni directional laser scanner with single-line capability that increases retail checkout system efficiency with its automatic in-stand operation, optionally integrated EAS, and industry-leading scan performance.

Full specifications (PDF)

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • All Standard 1D Symbologies
  • RSS-Expanded
  • RSS-14
  • RSS-14 Limited
Light Source:
Laser
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 1.5" - 4"@5.2mil
  • 1" - 7.5"@7.5mil
  • 1" - 9.5"@10.4mil
  • 1" - 11"@13mil
  • 1" - 12"@19.5mil
Scan Pattern:
Omni-directional
Cable Type Included:
USB
Stand Included:
Yes
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
Gray
Height:
2.9"
Width:
2.6"
Depth:
7.4"
Weight (Approximate):
6.88 oz
Miscellaneous
Package Contents:
  • Fusion MS3780 Bar Code Reader
  • USB Cable
  • Stand
Additional Information:

Supported Interfaces:

  • Serial
  • Keyboard Wedge
  • IBM 468X/469X
  • USB
  • OCIA
  • Certifications & Standards:

    Laser Class:

    • Class 1; IEC60825-1:1993/A1:1997+A2:2001
    • Class 1; EN60825-1:1994/A11:1996+A2:2001

    EMC:

    • FCC
    • ICES-003
    • EN55022 Class A
    Environmentally Friendly:
    Yes
    Environmental Certification:
    WEEE
    Item Numbers
    GTIN: 0000886562166, 0132017661056, 0682276410334, 0783555037034, 4054318749454, 5712505723791
    UPC: 000886562166, 132017661056, 682276410334, 783555037034
    EAN: 0000886562166, 0132017661056, 0682276410334, 0783555037034, 4054318749454, 5712505723791
    UNSPSC: 43211701

    Recommended Accessories for Model: Metrologic Fusion 3780 Scanner
    Honeywell Cable (53-53235-N-3)
    USB, black, Type A, 2.9m (9.5'), coiled, host power
    In Stock
    $22.80
    + Add to Quote
    Honeywell 1400g Accessories (46-00525-6)
    Accessory, Honeywell Power supply, 1A Output Current, 90 to 255 AC Input Voltage, North American Plug, Compatible with Select Honeywell Scanners.
    In Stock
    $35.70
    + Add to Quote
    Honeywell Cable (53-53000-3)
    RS-232, black, DB-9 female, 2.9m (9.5'), coiled, 5V external power
    In Stock
    $18.80
    + Add to Quote
    Honeywell MS3780 Accessories (46-00225-3)
    Stand: black, presentation scanning with weighted base for MS3780 Fusion
    In Stock
    $23.80
    + Add to Quote
    Honeywell Cable (53-53213-N-3)
    USB, black, 12V locking, 2.9m (9.5'), coiled, host power. Non-Cancelable/Non-Returnable.
    In Stock
    $38.00
    + Add to Quote

    The Metrologic MK3780-71A38 is also known as Metrologic Instruments MET-MK3780-71A38 or MK378071A38 .
