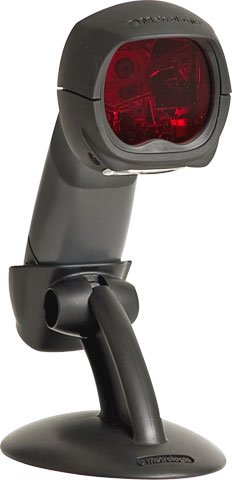

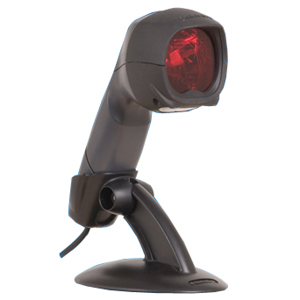

Metrologic MS3780 Fusion – Barcode Scanner – Corded – 1D

Part Number: MK3780-61B47
Model: MS3780 Fusion
Discontinued See Replacement
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Corded
Form Factor
Handheld, Presentation
Interface Options
PS/2 Keyboard Wedge
Scanner Capability
1D

Product Description:

  PS/2 kit. Omni-Directional Laser. Includes PS/2 cable, power supply, and stand. Color: Dark Gray. Non-Cancelable/Non-Returnable.

Honeywell MS3780 Fusion Barcode Scanner Model Overview

Experience unparalleled efficiency in your retail operations with the Fusion™ M 3780 Omnidirectional Laser Scanner by Honeywell. This compact, hand-held scanner combines advanced omnidirectional and single-line scanning capabilities, making it a versatile addition to medium-volume retail environments such as specialty stores and pharmacies. With features like an automatic in-stand operation and a user-friendly design, the Fusion 3780 enhances checkout speeds while reducing operator fatigue, helping you streamline your workflow like never before.


Key Features:

  • Omnidirectional Scan Pattern: Aggressive scanning from any angle for increased throughput.
  • Single-Line Scan Mode: Switch to a targeted single line for precise scanning with a button press.
  • Automatic In-Stand Detection: Enables hands-free operation, significantly reducing operator fatigue.
  • Integrated IR Sensor: Powers up the scanner only when a barcode is detected, conserving energy.
  • Optional RF EAS Integration: Simultaneously deactivates RF tags while scanning barcodes for heightened efficiency.

Specifications:

  • Mechanical Dimensions: 189 mm x 65 mm x 73 mm (7.4" x 2.6" x 2.9")
  • Weight: 195 g (6.9 oz)
  • Electrical:
    • Input Voltage: 5 VDC ± 0.25 V
    • Operating Power: 1.4 W (275 mA @ 5 V)
    • Standby Power: 1.0 W (200 mA @ 5 V)
    • Host System Interfaces: USB, RS232, Keyboard Wedge, IBM 46xx (RS485), OCIA
  • Environmental:
    • Operating Temperature: -20°C to 40°C (-4°F to 104°F)
    • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
    • Humidity: 5% to 95% relative humidity, non-condensing
    • Drop: Designed to withstand multiple 1.5 m (5') drops
    • Environmental Sealing: Sealed to resist airborne particulate contaminants
    • Light Levels: 4842 Lux
  • Scan Performance:
    • Scan Pattern: Omnidirectional with 5 fields of 4 parallel lines; single line activated by button
    • Scan Speed: 1,333 scan lines per second (omnidirectional); 67 scan lines per second (single line)
    • Print Contrast: 35% minimum reflectance difference
    • Pitch, Skew: 60°, 60°
    • Decode Capability: Reads standard 1D and GS1 DataBar symbologies
  • Warranty: 3-year factory warranty
Metrologic MK3780-61B47 Barcode Scanner Overview

Fusion MS3780 Bar Code Reader is an affordable hand-held omni directional laser scanner with single-line capability that increases retail checkout system efficiency with its automatic in-stand operation, optionally integrated EAS, and industry-leading scan performance.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:

Autodiscriminates all standard 1D bar codes, including RSS-Expanded,RSS-14 and RSS-14 Limited.

Light Source:
Laser
Maximum Scan Resolution:
5 mil
Scan Pattern:
  • Omni-directional
  • Single Line
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Power Supply Included:
Yes
Physical Characteristics
Color:
Dark Gray
Height:
2.9"
Width:
2.6"
Depth:
7.4"
Weight (Approximate):
6.90 oz
Miscellaneous
Package Contents:
  • Fusion MS3780 Bar Code Reader
  • 110 VAC Power Supply
Additional Information:

Supported Interfaces:

  • Serial
  • Keyboard Wedge
  • IBM 468X/469X
  • USB
  • OCIA
  • Certifications & Standards:
    • WEEE

    Laser Class:

    • Class 1; IEC60825-1:1993/A1:1997+A2:2001
    • Class 1; EN60825-1:1994/A11:1996+A2:2001

    EMC:

    • FCC
    • ICES-003
    • EN55022 Class A
    Environmental Certification:
    WEEE
    Warranty
    Limited Warranty:
    3 Year
    Item Numbers
    UNSPSC: 43211701
