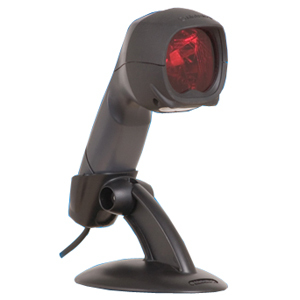

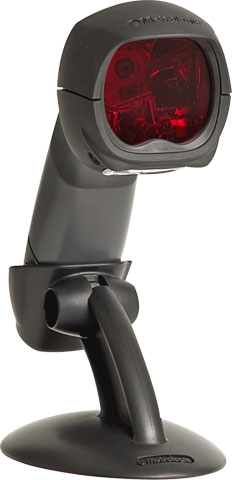

Honeywell MK3780-31A62 Barcode Scanner
The MS3780 Fusion has a primary 20-line omnidirectional scan pattern that allows for aggressive scanning of barcodes in any orientation or with a push of a button can switch to a targeted single line for menu scanning. This feature of the MS3780 Fusion provides the ability to pass over other barcodes, selecting only the required code. No other scanner offers this much control. Hands free operation in the stand for presentation scanning reduces operator fatigue and multiple sleep modes reduce power consumption. The optional EAS integration allows users to deactivate and EAS tag and decode a barcode in a single scan.
Technical Information
- Barcode Dimension: 1D
- Scan Pattern:
- Omni-directional
- Single Line
- Connectivity Technology: Cable
- Light Source: Laser
- Barcode Symbology Supported:
- All Standard 1D Symbologies
- RSS-Expanded
- RSS-14
- RSS-14 Limited
- All Standard 1D Symbologies
- RSS-Expanded
- RSS-14
- RSS-14 Limited
- Maximum Scan Resolution: 5 mil
- Depth of Field: 1" - 11"@13 mil
General Information
- Product Type: Handheld Barcode Scanner
- Brand Name: Honeywell
- Manufacturer: Honeywell International, Inc
- Product Model: MS3780
- Product Name: Fusion MS3780 Barcode Reader
- Product Line: Fusion
Physical Characteristics
- Height: 2.9"
- Width: 2.6"
- Depth: 7.4"
- Color: Black
- Weight (Approximate): 6.90 oz
Other
- Certifications & Standards:
- Laser Class:
- Class 1;IEC60825-1:1993/A1:1997+A2:2001
- Class 1; EN60825-1:1994/A11:1996+A2:2001
- EMC:
- FCC
- ICES-003 Class B
- EN55022 Class B
Power Description
- Input Voltage: 5 V DC
Brand | Metrologic |
Model | MS3780 Fusion |
Scanner Capability | 1D |
Form Factor | Presentation |
Scan Pattern | Area |
Scanner Type | Laser, Omnidirectional |
Color | Gray, Black |
Included Cables | Ruby VeriFone |
Connectivity | Corded |
Connection | Verifone Ruby |
Ruggedness | General Purpose |
Honeywell Cable (53-53235-N-3)
USB, black, Type A, 2.9m (9.5'), coiled, host power
: |
$21.70 + Add to Quote |
|
Honeywell Cable (53-53000-3)
RS-232, black, DB-9 female, 2.9m (9.5'), coiled, 5V external power
: |
$17.80 + Add to Quote |
|
Honeywell MS3780 Accessories (46-00225-3)
Stand: black, presentation scanning with weighted base for MS3780 Fusion
: |
$22.70 + Add to Quote |
|
Honeywell Cable (53-53002-N-3)
Keyboard wedge, black, 2.9m (9.5'), coiled, host power. Non-Cancelable/Non-Returnable.
: |
$18.50 + Add to Quote |
|
Honeywell Cable (53-53020-3)
Single keyboard cable, black, 2.9m (9.5'), coiled, 5V external power. Non-Cancelable/Non-Returnable.
Ships in 3-5 Days
|
$22.80 + Add to Quote |
Honeywell Service Contracts (SVC3780-5LC5)
3780, Limited Comprehensive, 5 Day Turn Around, 5 year DayOne
Ships in 3-5 Days
|
$28.90 + Add to Quote |
|
Honeywell Service Contracts (SVC3780-1LC5)
3780, Limited Comprehensive, 1 Day Turn, 5 year DayOne
Ships in 3-5 Days
|
$33.50 + Add to Quote |
|
Honeywell Service Contract - 1 year (HSVC3780-W)
3780 Fusion Extended Warranty
Ships in 3-5 Days
|
$13.00 + Add to Quote |
|
Honeywell Service Contract - 1 year (E-HSVC9535K-W)
9535 VoyagerBT with Base, Extended Warranty, Post Sale
Ships in 3-5 Days
|
$45.00 + Add to Quote |
|
Honeywell Service Contract - 1 year (E-HSVC3780-W)
3780 Fusion, Extended Warranty, Post Sale
Ships in 3-5 Days
|
$20.00 + Add to Quote |
The Metrologic MK3780-31A62 is also known as Metrologic Instruments MET-MK3780-31A62 or MK378031A62 .
