Honeywell MS3580 QuantumT – Barcode Scanner – Corded – 1D

Part Number: MK3580-33A38
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Corded
Form Factor
Presentation
Interface Options
USB
Scanner Capability
1D

Product Description:

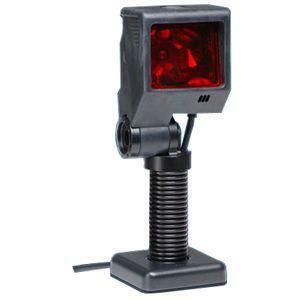

  Corded Scanner, Metrologic MS3580 QuantumT, 1D Laser/Omni-directional, General Purpose, USB, Presentation, 6' Flex Stand/9.2' Straight USB Type A Cable, Black
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • All Standard 1D Symbologies
  • RSS-Expanded
  • RSS-14 Limited
  • RSS-14
Light Source:
Laser
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 2" - 4"@5.2mil
  • 1" - 8"@7.5mil
  • 1" - 10"@10.4mil
  • 1" - 11"@13mil
  • 1" - 12"@19.5mil
Scan Pattern:
  • Omni-directional
  • 2D Raster
  • Single Line
Stand Included:
Yes
Interfaces/Ports
Host Interface:
USB
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
In-counter
Product Color:
Black
Height:
4.3"
Width:
2.7"
Depth:
2.6"
Weight (Approximate):
6 oz
Miscellaneous
Package Contents:
  • QuantumT MS3580 Bar Code Reader
  • 6 ft. Pole Rubber Boot with non weighted Flexible Stand
  • Mountable Plastic Base
  • USB Type A Cable
Certifications & Standards:

Laser Class:

  • Class 1
  • IEC60825-1:1993/A1:1997+A2:2001
  • Class 1
  • EN60825-1:1994/A11:1996+A2:2001

EMC:

  • FCC Class B
  • RoHS
  • WEEE
Environmentally Friendly:
Yes
Item Numbers
GTIN: 0024606615796, 0080479928821, 0132017649481, 0883585831289
UPC: 024606615796, 080479928821, 132017649481, 883585831289
EAN: 0024606615796, 0080479928821, 0132017649481, 0883585831289
UNSPSC: 43211701

Recommended Accessories

Category

  • Cables, Connectors, and Adapters (3)
  • Computer Accessories (1)
  • Mounting Hardware and Stands (2)
  • Power Device (1)
  • Scanner Accessories (7)

Recommended Accessories for Model: Honeywell MK3580-33A38 Barcode Scanner

Top Cables, Connectors, and Adapters Purchased With Honeywell MK3580-33A38

Top Computer Accessories Purchased With Honeywell MK3580-33A38

Top Mounting Hardware and Stands Purchased With Honeywell MK3580-33A38

  • Honeywell 46-00289 Accessory
    Honeywell 46-00289 Accessory

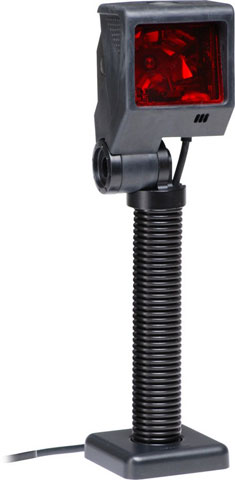

    Flex Stand for the QuantumT MS3580. 15cm (6") flex pole with mountable base for MS3580 QuantumT. This item is Non-Cancelable/Non-Returnable.
