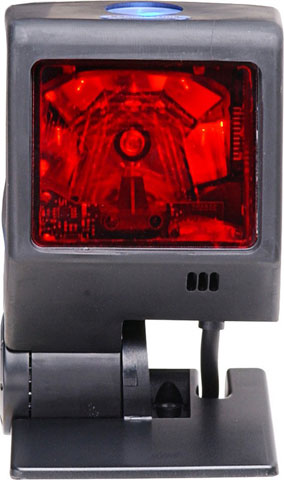

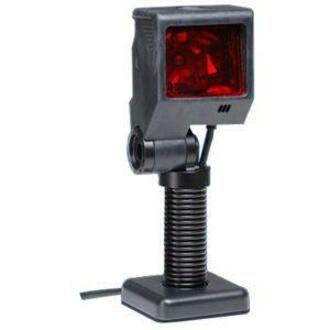

Metrologic QuantumT 3580 Barcode Scanner Model Overview
Honeywell's QuantumT® 3580 Omnidirectional Laser Scanner is the ultimate solution for retailers seeking efficient scanning in a compact design. With an impressive scan speed of 1,650 scans per second, this scanner enhances customer satisfaction and staff productivity by ensuring quick and accurate product scanning. Its customizable scan pattern, allowing for hand-held or hands-free operation, makes it versatile for various retail environments such as convenience stores and pharmacies. Built with rugged rubber housing, the QuantumT provides outstanding durability while minimizing counter space with its small footprint, creating more room for merchandise displays. Key Features
Omnidirectional/Single-Line Mode: Alternate between 20 scan lines and a single line for tailored scanning.
Sleep Mode with IR Wake-Up: Reduces power consumption to extend life and lower operational costs.
Small Footprint: Efficient design conserves valuable counter space.
Optional Stands: Customize scanner height to fit unique applications.
System Compatibility: OPOS and JPOS compatible for seamless integration.
Specifications
Mechanical:
Dimensions: 66 mm x 67 mm x 108 mm (2.6" x 2.7" x 4.3")
Weight: 170 g (6 oz)
Electrical:
Input Voltage: 5 VDC ± 0.25 V
Operating Power: 1.4 W (275 mA @ 5 V)
Standby Power: 1.2 W (230 mA @ 5 V)
Host Interfaces: USB, RS232, Keyboard Wedge, IBM 46xx (RS485), OCIA
Environmental:
Operating Temperature: -20°C to 40°C (-4°F to 104°F)
Storage Temperature: -40°C to 60°C (-40°F to 140°F)
Humidity: 5% to 95% relative, non-condensing
Drop: Designed to withstand drops from 1.5 m (5 ft)
Environmental Sealing: Sealed to resist airborne contaminants
Scan Performance:
Scan Pattern: Omnidirectional with 5 fields of 4 parallel lines
The QuantumT MS3580 Bar Code Reader is ideal for presentation scanning in moderatevolume retail environments such as convenience stores, liquor stores and pharmacies, end users can individually customize the scan pattern and operate the scanner in either a hand-held or hands-free fashion. In addition, its rugged, rubber housing provides the necessary protection against daily operational use.
What wireless standards does the Cisco AIR-CAP1702I-Z-K9 support?
The Cisco AIR-CAP1702I-Z-K9 is an 802.11ac access point with 3x3:2 spatial streams and internal antennas, delivering modern wireless performance for enterprise deployments. This model supports the latest Wi-Fi standards required for high-density wireless environments. Contact us today to verify specific standard compatibility for your network requirements.
What is the print speed of the HP LaserJet Enterprise M507n?
The HP LaserJet Enterprise M507n delivers up to 43 pages per minute for black printing on A4 paper, with first page out as fast as 5.9 seconds from ready mode. This high-speed output helps your team maintain productivity without sacrificing quality, making it ideal for growing business environments.
Is the Cisco AIR-CAP1702I-Z-K9 suitable for warehouse and logistics environments?
Yes, this Cisco wireless access point is designed for enterprise deployments including warehouse and logistics operations where reliable connectivity is critical. The internal antenna design and 802.11ac capabilities make it suitable for coverage in industrial settings. We offer this model as part of our comprehensive AIDC solutions—visit barcodesinc.com to explore how it integrates with your mobile computing and scanning infrastructure.
Does the HP M507n support mobile printing?
Yes, the HP LaserJet Enterprise M507n supports multiple mobile printing solutions including Apple AirPrint™, Google Cloud Print™, and HP ePrint, allowing you to submit and release print jobs from anywhere using HP Roam. This flexibility ensures your team can print securely from mobile devices without being tied to a desk.
What are the physical dimensions and weight of this Cisco access point?
Based on Cisco's standard access point specifications, compact models in this series typically measure approximately 8.7 x 8.7 x 1.84 inches and weigh around 2.3 lbs, making them easy to mount in various warehouse and facility locations. The exact specifications for the AIR-CAP1702I-Z-K9 are available in the detailed product documentation. Contact us today for complete technical specifications and mounting options.
What connectivity options are available on the M507n?
The M507n includes USB 2.0 and Gigabit Ethernet as standard connectivity, with optional dual-band Wi-Fi available for added flexibility. These multiple connection options allow seamless integration into diverse network environments and support both wired and wireless printing workflows.
What network connectivity does the Cisco AIR-CAP1702I-Z-K9 provide?
This access point features 10/100/1000BASE-T autosensing Ethernet connectivity via RJ-45 ports, plus a management console port for network administration. The gigabit Ethernet interface ensures high-speed backhaul connectivity for your wireless network. We offer comprehensive support and integration services—visit barcodesinc.com or contact us today for deployment guidance.
How does the HP M507n help reduce operational costs?
The M507n features HP EcoSmart black toner and Auto-on/Auto-off technology that delivers up to 29% energy savings without compromising performance. Additionally, optional high-yield toner cartridges are available to extend print runs and reduce interruptions, helping lower your total cost of ownership.
Which wireless controllers are compatible with the Cisco AIR-CAP1702I-Z-K9?
The Cisco AIR-CAP1702I-Z-K9 works with Cisco Catalyst 9800 Series Wireless Controllers (physical or virtual) and supports modern Cisco IOS XE software releases. This ensures compatibility with current enterprise wireless management platforms and security frameworks. Our team can help you design a complete wireless infrastructure—contact us today to discuss your controller requirements.
What security features does the HP LaserJet Enterprise M507n offer?
The M507n is engineered with world-class security capabilities including continuous monitoring and automatic self-repair capabilities that protect against cyber threats. These advanced security measures ensure your printing infrastructure remains protected while maintaining reliable business operations.
What regulatory domain is the 'Z' designation in the AIR-CAP1702I-Z-K9 model number?
The 'Z' in the model number indicates a specific regulatory domain for international compliance. Customers are responsible for verifying approval for use in their individual countries, and Cisco provides a compliance tool at cisco.com/go/aironet/compliance to identify the correct regulatory domain for your location. We recommend confirming regulatory approval before deployment—contact us today to ensure you have the correct model for your region.
Can the HP M507n be managed across multiple printers?
Yes, the M507n supports centralized fleet management through HP Web Jetadmin software, allowing IT teams to monitor and control multiple printers from a single interface. This centralized approach simplifies printer administration and helps optimize your printing infrastructure across your organization.
The Metrologic MK3580-31B47 Barcode Scanner is also known as
MET-MK3580-31B47
or MK358031B47.
Full specifications (PDF)
