Honeywell
MK3480-30B41 Barcode Scanner
Honeywell MK3480-30B41 Barcode Scanner
Metrologic IS3480 QuantumE -
RS-232 serial kit with omnidirectional and single line modes. Includes RS-232LP cable, user's manual and US power supply
Full specifications (PDF)Fully automatic scanning operation

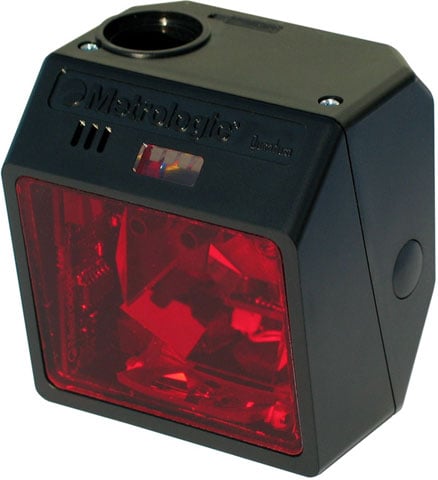

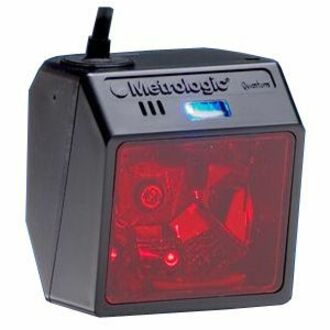

The Metrologic IS3480 QuantumE is a combination omnidirectional and single-line laser barcode scanner. The omnidirectional scan pattern offers outstanding scan performance on all standard 1D barcode symbologies, including RSS. The IS3480 QuantumE's button-activated single line mode aids in scanning items that contain multiple barcodes or when selecting barcodes from menu-style price sheets.
Metrologic MK3480-30B41 Overview
The Metrologic IS3480 is a combination omnidirectional and single-line laser Bar Code Reader. The omnidirectional scan pattern offers outstanding scan performance on all standard 1D bar code symbologies, including RSS. The IS3480's button-activated single line mode aids in scanning items that contain multiple bar codes or when selecting bar codes from menu-style price sheets.
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
- RSS-14
- RSS
- RSS-Expanded
Light Source:
Laser
Maximum Scan Resolution:
5 mil
Depth of Field:
- 1" - 11"@13mil
Scan Pattern:
- Omni-directional
- Single Line
Interfaces/Ports
Host Interface:
Serial
Power Description
Input Voltage:
5 V DC
Power Supply Included:
Yes
Physical Characteristics
Form Factor:
In-counter
Color:
Black
Height:
2.7"
Width:
2.5"
Depth:
2"
Weight (Approximate):
6.08 oz
Miscellaneous
Package Contents:
- Quantum E IS3480 Bar Code Reader
- 110V AC Power Supply
Additional Information:
USB Cable separate
Certifications & Standards:
Laser Class
- Class 1; IEC60825-1:1993/A1:1997+A2:2001
- Class 1; EN60825-1:1994/A11:1996+A2:2001
EMC
- FCC
- ICES-003
- EN55022 Class A
Item Numbers
UNSPSC:
43211701
Loading...
The Metrologic MK3480-30B41 is also known as Metrologic Instruments MET-MK3480-30B41 or MK348030B41 .
