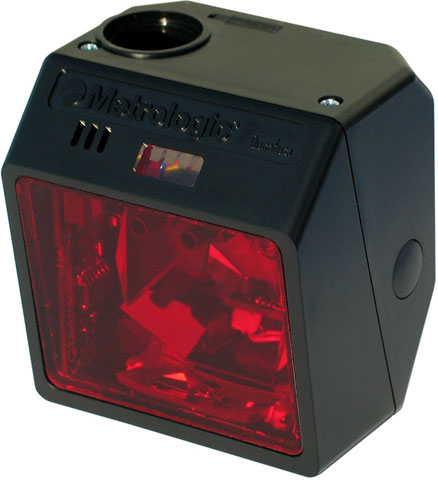

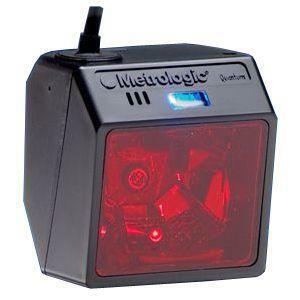

Metrologic MK3480-30A41 Barcode Scanner

The Metrologic MK3480-30A41 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Metrologic IS3480 QuantumE - RS-232 serial kit with omnidirectional and single line modes. Includes RS-232LP cable, user's manual and no power supply
  • Metes out excellent operation and rugged structure with smart retailing features which is an ideal choice for bundling terminals, businesses, supermarkets and grocery stores
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
Read More

Need a different version? See all Metrologic IS3480 QuantumE Barcode Scanners

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Metrologic MK3480-30A41 Barcode Scanner
Metrologic MK3480-30A41 Barcode Scanner Metrologic MK3480-30A41 Barcode Scanner Metrologic MK3480-30A41 Barcode Scanner
Metrologic MK3480-30A41 Barcode Scanner
Metrologic MK3480-30A41 Barcode Scanner
Metrologic MK3480-30A41 Barcode Scanner
Full specifications (PDF)
Metrologic IS3480 QuantumE Barcode Scanner Model Overview
The Metrologic IS3480 QuantumE is a combination omnidirectional and single-line laser bar code scanner. The omnidirectional scan pattern offers outstanding scan performance on all standard 1D bar code symbologies, including RSS. The IS3480 QuantumE's button-activated single line mode aids in scanning items that contain multiple bar codes or when selecting bar codes from menu-style price sheets.
Metrologic MK3480-30A41 Barcode Scanner Overview

Quantum E IS3480 Bar Code Reader is a combination omnidirectional and single-line laser Bar Code Reader. The omnidirectional scan pattern offers outstanding scan performance on all standard 1D bar code symbologies, including RSS. The button-activated single line mode aids in scanning items that contain multiple bar codes or when selecting bar codes from menu-style price sheets.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • All Standard 1D Symbologies
  • RSS-Expanded
  • RSS-14
  • RSS-14 Limited
Light Source:
Laser
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 1.5" - 4.5"@5.2mil
  • 1" - 7.5"@7.5mil
  • 1" - 9.5"@10.4mil
  • 1" - 11.5"@13mil
  • 1" - 12"@26mil
Scan Pattern:
  • Omni-directional
  • Single Line
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
Black
Height:
2.7"
Width:
2.5"
Depth:
2"
Weight (Approximate):
6 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • Serial
  • Light Pen Emulation

USB Cable separate

Certifications & Standards:

Laser Class:

  • Class 1; IEC60825-1:1993/A1:1997+A2:2001
  • Class 1; EN60825-1:1994/A11:1996+A2:2001

EMC:

  • FCC
  • ICES-003
  • EN55022 Class A
Item Numbers
GTIN: 5052461756250
EAN: 5052461756250
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Metrologic MK3480-30A41 Barcode Scanner is also known as MET-MK3480-30A41 or MK348030A41.
