Metrologic IS3480 QuantumE – Barcode Scanner – 1D

Part Number: MK3480-30A39
Model: IS3480 QuantumE
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D
Scanner Type
Omnidirectional

Product Description:

  Quantum E Omnidirectional Bar Code Scanner, OMNI and Single USB, POS, Cables, Manuals and No Power Supply
Explore all Metrologic IS3480 QuantumE Barcode Scanners
Add to Quote
Metrologic MK3480-30A39 Barcode Scanner
Metrologic MK3480-30A39 Barcode Scanner
Metrologic MK3480-30A39 Barcode Scanner
Metrologic MK3480-30A39 Barcode Scanner Metrologic MK3480-30A39 Barcode Scanner Metrologic MK3480-30A39 Barcode Scanner
Full specifications (PDF)

Metrologic IS3480 QuantumE Barcode Scanner Model Overview

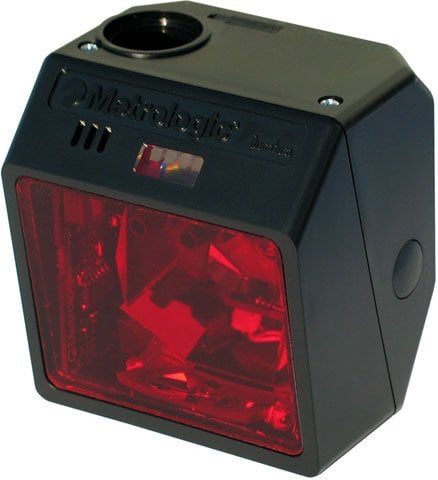

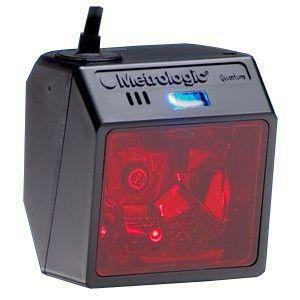

The Metrologic IS3480 QuantumE is a combination omnidirectional and single-line laser bar code scanner. The omnidirectional scan pattern offers outstanding scan performance on all standard 1D bar code symbologies, including RSS. The IS3480 QuantumE's button-activated single line mode aids in scanning items that contain multiple bar codes or when selecting bar codes from menu-style price sheets.
Metrologic MK3480-30A39 Barcode Scanner Overview

Quantum E IS3480 Bar Code Reader is designed for integration with a variety of applications including interactive kiosks, price lookup systems, ATMs, reverse vending machines, controlled access, or a host of other Original Equipment Manufacturer (OEM) devices. The scanner s main cable connector is located at the top of the unit to facilitate mounting and the auxiliary connector gives users access to several of the I/O signals, providing the flexibility for external hookup of the beeper, button and LEDs.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • 1D Bar Codes
  • RSS-Expanded
  • RSS-14
  • RSS-14 Limited
Light Source:
Laser
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 2.5" - 5"@5.2mil
  • 1" - 7.5"@7.5mil
  • 1" - 9.5"@10.4mil
  • 1" - 11.5"@13mil
  • 1" - 12"@19mil
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Color:
Black
Height:
2.7"
Width:
2.5"
Depth:
2"
Weight (Approximate):
6 oz
Miscellaneous
Additional Information:

USB Cable separate

Certifications & Standards:

Laser Class:

  • Class 1; IEC60825-1:1993/A1:1997+A2:2001 Class 1; EN60825-1:1994/A11:1996+A2:2001

EMC:

  • FCC
  • ICES-003
  • EN55022 Class A
Item Numbers
UNSPSC: 43211701
