Metrologic MK1890-50A38 Barcode Scanner

The Metrologic MK1890-50A38 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

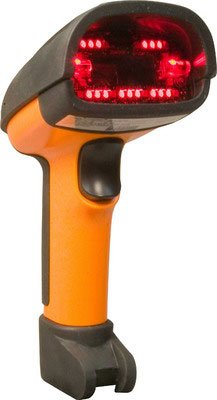

Metrologic MS1890 Focus - Area Imager (Industrial Focus - Orange LS USB-Direct Connect and No Stand)
  • Minimizes your manual entry and provides reliable scanning in a durable form factor
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
  • LED aimer is a perfect choice for patient-facing applications
Read More
Discontinued Need Assistance?
Add to Quote
Metrologic MS1890 Focus Barcode Scanner Model Overview
Metrologic's MS1890 Focus maximizes productivity with a set of features previously unavailable in rugged area imagers. Engineered to withstand two-meter falls, this IP54-rated hand-held omnidirectional imager precisely executes retail back-of-store, manufacturing and transportation and logistics applications. By combining FirstFlash with Omniplanar's industry-leading SwiftDecoder software, the MS1890 Focus outperforms the field in decoding standard barcodes, with minimal concern for orientation or print quality. The MS1890 Focus even reads codes damaged, worn or wrapped in clear plastic.
Metrologic MK1890-50A38 Barcode Scanner Overview

Metrologic's Focus MS1890 Industrial Bar Code Reader maximizes productivity with a set of features previously unavailable in rugged area imagers. Engineered to withstand two-meter falls, this IP54-rated hand-held omnidirectional imager precisely executes retail back-of-store, manufacturing and transportation and logistics applications. By combining FirstFlash with Omniplanar's industry-leading SwiftDecoder software, the Focus MS1890 outperforms the field in decoding standard bar codes, with minimal concern for orientation or print quality. The Focus MS1890 even reads codes damaged, worn or wrapped in clear plastic.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • All Standard 1D Symbologies
  • GS1 Databar
  • PDF 417
  • Micro PDF
  • MaxiCode
  • DataMatrix
  • QR Code
  • UCC/EAN Composite Codes
  • Postal Code
  • Aztec
Light Source:
LED
Image Sensor Type:
Imager
Maximum Scan Resolution:
10 mil
Depth of Field:
  • 2.5" - 5"@5.2mil - 1D
  • 1.5" - 7.5"@7.5mil - 1D
  • 1.2" - 9.8"@10.4mil - 1D
  • 0" - 10.2"@13mil - 1D
  • 0" - 16"@21mil - 1D
  • 0" - 9.3"@10mil - PDF417
  • 0" - 11.2"@15.9mil - PDF417
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
  • Orange
  • Black
Height:
7.2"
Width:
1.2"
Depth:
4.4"
Weight (Approximate):
10.02 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • Keyboard Wedge
  • Serial
  • USB
  • Certifications & Standards:
    • IP54
    • RoHS Compliant

    LED Class:

    • Class 1; IEC60825-1:1993/A1:1997+A2:2001
    • Class 1; EN60825-1:1994/A11:1996+A2:2001

    EMC:

    • FCC Class A
    • IEC60825-1 LED Safety
    Environmentally Friendly:
    Yes
    Environmental Certification:
    • RoHS
    • WEEE
    Item Numbers
    UNSPSC: 43211701
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Metrologic MK1890-50A38 Barcode Scanner is also known as MET-MK1890-50A38 or MK189050A38.
