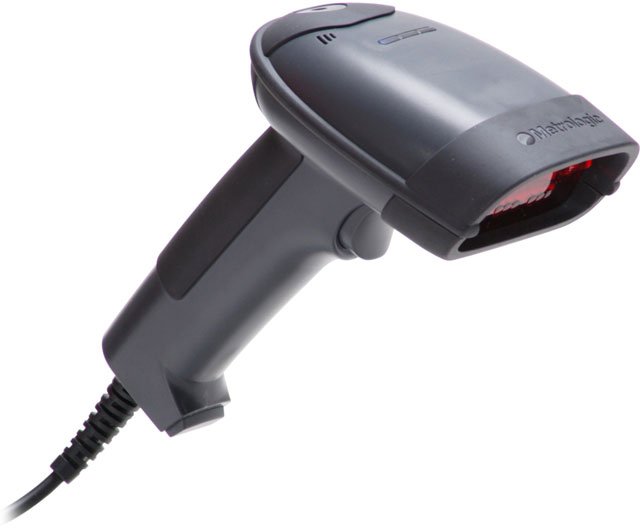

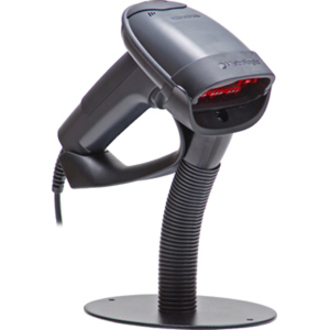

Metrologic MK1691-60A38-02-A Barcode Scanner

The Metrologic MK1691-60A38-02-A Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Metrologic MS1690 Focus - MS1690 Focus, SCANNER ONLY. 2D Imager, USB interface, Color: Dark Gray. Cables and accessories must be purchased separately. These include USB (Part# 53-53235-N-3-FR)
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
  • Laser-free design provides high-performance scanning without the risk of eye injury
Read More

Need a different version? See all Metrologic MS1690 Focus Barcode Scanners

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Metrologic MK1691-60A38-02-A Barcode Scanner
Metrologic MK1691-60A38-02-A Barcode Scanner Metrologic MK1691-60A38-02-A Barcode Scanner
Metrologic MK1691-60A38-02-A Barcode Scanner
Metrologic MK1691-60A38-02-A Barcode Scanner
Full specifications (PDF)
Metrologic MS1690 Focus Barcode Scanner Model Overview
The Metrologic MS1690 Focus is a high performance hand held area imager. This omnidirectional scanner decodes virtually all of today's standard barcodes including 1D, RSS, PDF417, microPDF, EAN/UCC Composite, Matrix and Postal Codes regardless of orientation.
Metrologic MK1691-60A38-02-A Barcode Scanner Overview

The MS1691 Focus is ideal for applications that require high-density scanning. The MS1691 delivers quick and accurate scanning of 1D bar codes as small as 3.5 mil and 2D bar codes as small as 5 mil.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

Linear:

  • ABC Codabar (American Blood Commission)
  • China Post
  • Codabar
  • Code 11
  • Code 128
  • Code 32 Pharmaceutical (PARAF)
  • Code 39
  • Code 93 and 93i
  • EAN-13 (including Bookland EAN)
  • EAN-13 with Add-On
  • EAN-13 with Extended Coupon Code
  • EAN-8
  • EAN-8 with Add-On
  • GS1 Databar Expanded
  • GS1 Databar Limited
  • GS1 DataBar Omnidirectional
  • GS1 Databar Truncated
  • GS1-128
  • Interleaved 2 of 5
  • ISBT 128
  • ITF-14
  • Matrix 2 of 5
  • MSI-Plessey
  • UK Plessey Code
  • Straight 2 of 5 IATA
  • Straight 2 of 5 Industrial
  • Telepen
  • Trioptic Code
  • UPC-A
  • UPC-A with Add-On
  • UPC-A with Extended Coupon Code
  • UPC-E
  • UPC-E with Add-On
  • UPC-E1 (obsolete)

Stacked:

  • Codablock F
  • GS1 Composite
  • GS1 Databar Expanded Stacked
  • GS1 Databar Stacked
  • GS1 Databar Stacked Omnidirectional
  • MicroPDF417
  • PDF417

Matrix:

  • Aztec Code
  • Chinese Sensible Code (Han Xin Code)
  • Data Matrix
  • MaxiCode
  • QR Code and Micro QR Code

Postal:

  • Australian Post
  • British Post
  • Canadian Post
  • ID-tag (UPU 4-State)
  • Infomail Barcode A
  • Intelligent Mail Barcode
  • Japanese Post
  • Netherlands (KIX) Post
  • Korea Post
  • Planet Code
  • Postnet

OCR:

  • OCR MICR (E 13 B)
  • OCR-A
  • OCR-B
Light Source:
LED
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 2" - 3.5"@4mil - 1D
  • 2.2" - 3.9"@5.2mil - 1D
  • 0" - 6.1"@13mil - 1D
  • 2" - 3.5"@5mil - 2D
  • 1.8" - 3.9"@7.5mil - 2D
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
  • Keyboard Wedge
  • USB
Physical Characteristics
Color:
Dark Gray
Height:
3.1"
Width:
4.4"
Depth:
7.2"
Weight (Approximate):
8 oz
Miscellaneous
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Metrologic MK1691-60A38-02-A Barcode Scanner is also known as MET-MK169160A3802A or MK169160A3802A.
