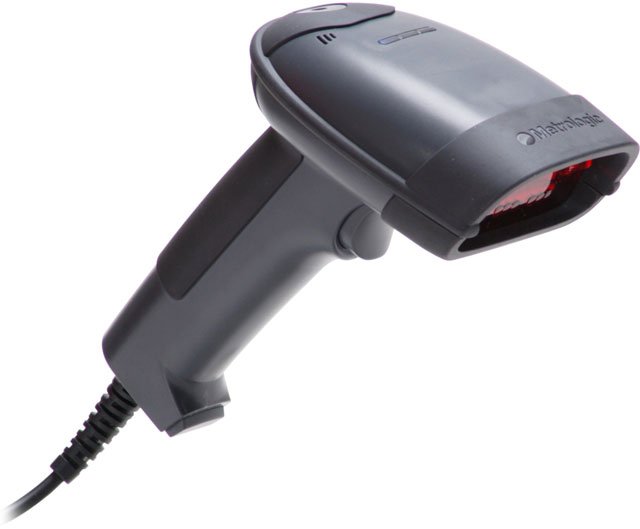

Metrologic MK1690-61B47 Barcode Scanner

The Metrologic MK1690-61B47 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

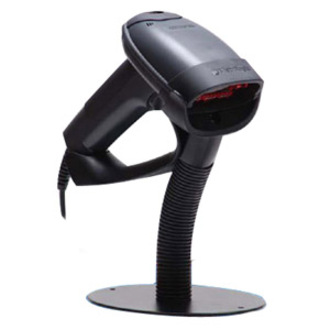

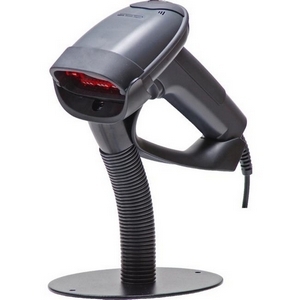

Metrologic MS1690 Focus - keyboard wedge kit. Includes stand, PS/2 cable, power supply and user's manual.
  • Speed up customer's checkout experience
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • Incredible and responsive 2D scanning even on curved or translucent surfaces
Read More

Need a different version? See all Metrologic MS1690 Focus Barcode Scanners

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Metrologic MK1690-61B47 Barcode Scanner
Metrologic MK1690-61B47 Barcode Scanner Metrologic MK1690-61B47 Barcode Scanner Metrologic MK1690-61B47 Barcode Scanner Metrologic MK1690-61B47 Barcode Scanner
Metrologic MK1690-61B47 Barcode Scanner
Metrologic MK1690-61B47 Barcode Scanner
Metrologic MK1690-61B47 Barcode Scanner
Metrologic MK1690-61B47 Barcode Scanner
Full specifications (PDF)
Metrologic MS1690 Focus Barcode Scanner Model Overview
The Metrologic MS1690 Focus is a high performance hand held area imager. This omnidirectional scanner decodes virtually all of today's standard barcodes including 1D, RSS, PDF417, microPDF, EAN/UCC Composite, Matrix and Postal Codes regardless of orientation.
Metrologic MK1690-61B47 Barcode Scanner Overview

MS1690 Focus Bar Code Reader provides users with increased throughput for virtually all 1D and 2D bar code reading applications - including poorly printed or damaged bar codes - by incorporating high resolution imaging, FirstFlash scanning technology, and true contact reading into an affordable solution.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • All Standard 1D Symbologies
  • RSS
  • PDF 417
  • Micro PDF-417
  • MaxiCode
  • DataMatrix
  • QR Code
  • EAN-UCC Composite
  • Aztec
Image Sensor Type:
Imager
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0" - 10"@13mil
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
Black
Height:
7.2"
Width:
3.1"
Depth:
4.9"
Weight (Approximate):
8 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • Keyboard Wedge
  • Serial
  • USB

USB Cable separate

Certifications & Standards:
  • Sunrise 2005
  • RoHS

LED Class:

  • Class 1 IEC60825-1:1993/A1:1997+A2:2001
  • Class 1 EN60825-1:1994/A11:1996+A2:2001

EMC:

  • FCC Class A
  • IEC60825-1
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Metrologic MK1690-61B47 Barcode Scanner is also known as MET-MK169061B47 or MK169061B47.
