Metrologic MS1690 Focus – Barcode Scanner – 1D

Part Number: MK1690-61B14
Model: MS1690 Focus
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

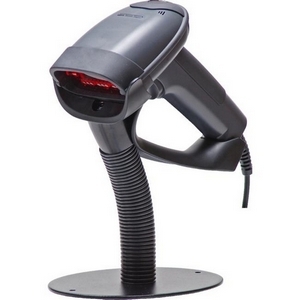

  RS-232 kit. Includes stand, serial cable, power supply and user's manual.
Explore all Metrologic MS1690 Focus Barcode Scanners
Add to Quote
Metrologic MK1690-61B14 Barcode Scanner
Metrologic MK1690-61B14 Barcode Scanner
Metrologic MK1690-61B14 Barcode Scanner
Metrologic MK1690-61B14 Barcode Scanner
Metrologic MK1690-61B14 Barcode Scanner Metrologic MK1690-61B14 Barcode Scanner Metrologic MK1690-61B14 Barcode Scanner Metrologic MK1690-61B14 Barcode Scanner
Full specifications (PDF)

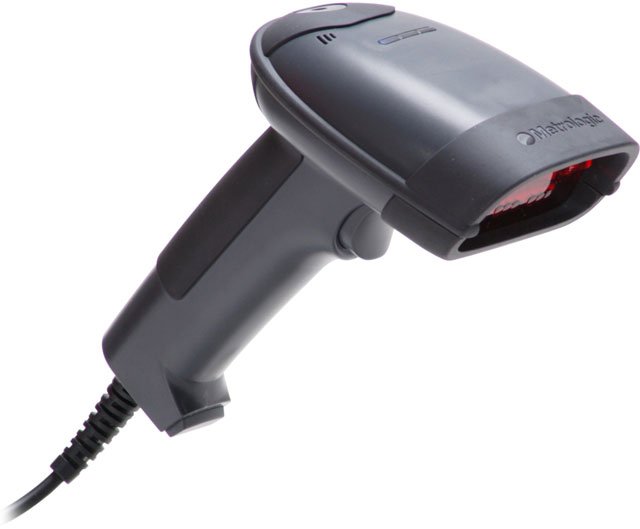

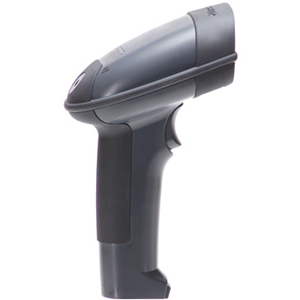

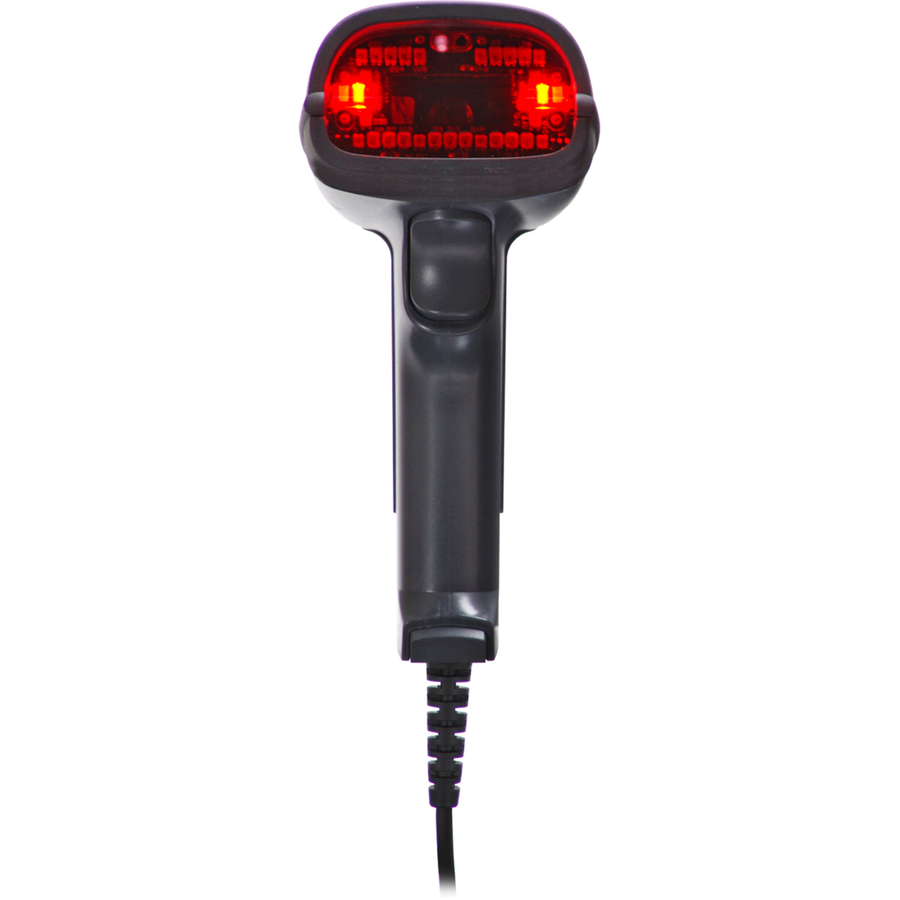

Metrologic MS1690 Focus Barcode Scanner Model Overview

The Metrologic MS1690 Focus is a high performance hand held area imager. This omnidirectional scanner decodes virtually all of today's standard barcodes including 1D, RSS, PDF417, microPDF, EAN/UCC Composite, Matrix and Postal Codes regardless of orientation.
Metrologic MK1690-61B14 Barcode Scanner Overview

Metrologic Focus MS1690 Bar Code Reader is a high performance hand-held area imager that decodes all of today standard bar codes including 1D, RSS, PDF417, microPDF, EAN/UCC Composite, Matrix and Postal Codes regardless of orientation. Focus laser like reading of 1D codes and omni-directional reading of 2D codes combined with a competitive price make it the obvious solution to a broad array of applications such as retail, healthcare, shipping/receiving and supply chain management.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • All Standard 1D Symbologies
  • RSS
  • PDF 417
  • Micro PDF
  • MaxiCode
  • DataMatrix
  • QR Code
  • UCC/EAN Composite Codes
  • Postal Code
  • Aztec
Light Source:
LED
Image Sensor Type:
Imager
Maximum Scan Resolution:
10 mil
Depth of Field:
  • 2.5" - 5"@5.2mil
  • 1.5" - 8"@7.5mil
  • 1" - 9.5"@10.4mil
  • 0" - 10"@13mil
  • 0" - 16"@21mil
  • 0" - 9.5"@10mil
  • 0" - 13.2"@15.9mil
Scan Pattern:
Omni-directional
Stand Included:
Yes
Interfaces/Ports
Host Interface:
Serial
Power Description
Input Voltage:
5 V DC
Power Supply Included:
Yes
Physical Characteristics
Color:
Black
Height:
7.2"
Width:
1.2"
Depth:
4.9"
Weight (Approximate):
8 oz
Miscellaneous
Package Contents:
  • Focus MS1690 Bar Code Reader
  • Stand
  • Cables
  • 110V Power Supply
  • User Manual
Additional Information:

RS-232 serial cable

USB Cable separate

Certifications & Standards:

EMC:

  • FCC Class A
  • IEC60825-1 LED Safety

LED Class:

  • Class 1; IEC60825-1:1993/A1:1997+A2:2001
  • Class 1; EN60825-1:1994/A11:1996+A2:2001
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Warranty
Limited Warranty:
5 Year
