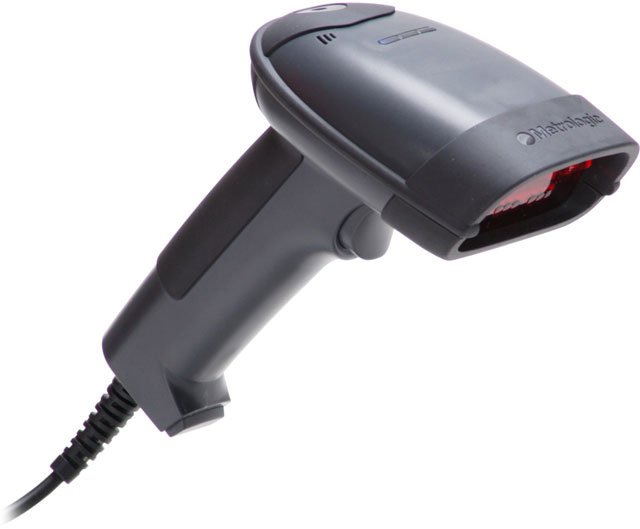

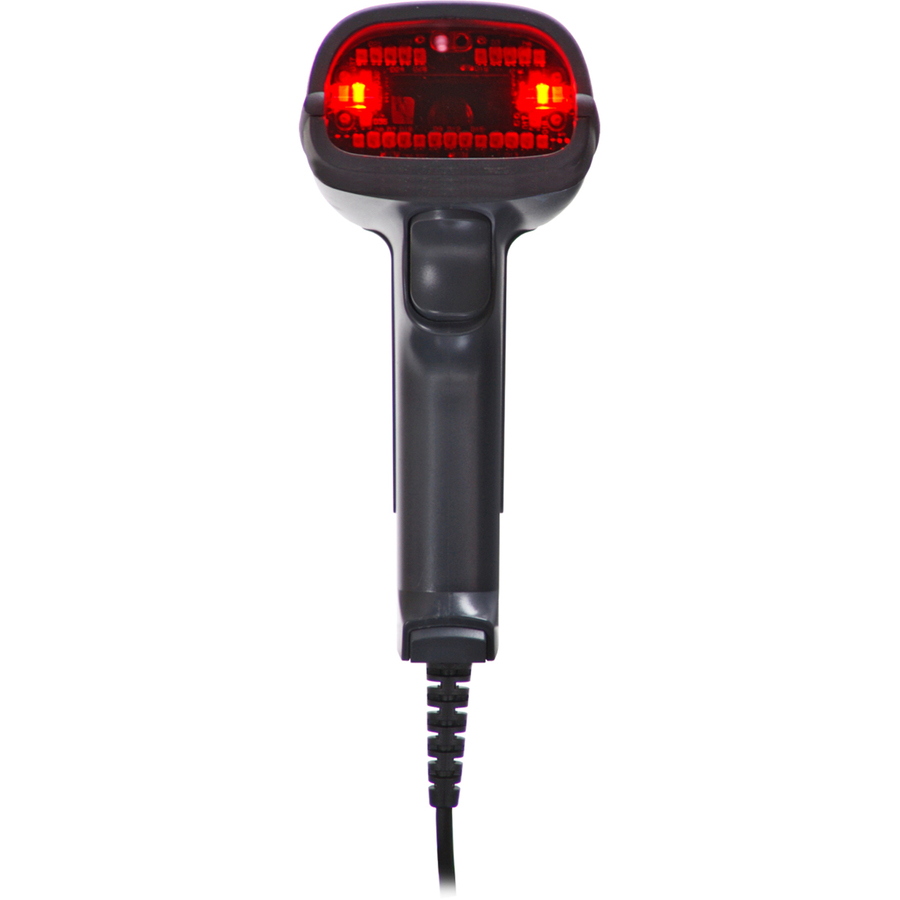

Metrologic MK1690-61A62 Barcode Scanner

The Metrologic MK1690-61A62 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Metrologic MS1690 Focus - Area Imager, Verifone Ruby, Stand, Cable and No Power Supply, Color : Dark Gray

Minimizes your manual entry and provides reliable scanning in a durable form factor
Perfect for applications that require direct association with a workstation or a notebook
Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
LED aimer is a perfect choice for patient-facing applications

Need a different version? See all Metrologic MS1690 Focus Barcode Scanners

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

Metrologic MS1690 Focus Barcode Scanner Model Overview

The Metrologic MS1690 Focus is a high performance hand held area imager. This omnidirectional scanner decodes virtually all of today's standard barcodes including 1D, RSS, PDF417, microPDF, EAN/UCC Composite, Matrix and Postal Codes regardless of orientation.

Metrologic MK1690-61A62 Barcode Scanner Overview

Honeywell's MS1690 Focus provides users with increased throughput for virtually all 1D and 2D bar code reading applications including poorly printed or damaged bar codes by incorporating high resolution imaging and true contact reading into an affordable solution.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

Linear:

ABC Codabar (American Blood Commission)
China Post
Codabar
Code 11
Code 128
Code 32 Pharmaceutical (PARAF)
Code 39
Code 93 and 93i
EAN-13 (including Bookland EAN)
EAN-13 with Add-On
EAN-13 with Extended Coupon Code
EAN-8
EAN-8 with Add-On
GS1 Databar Expanded
GS1 Databar Limited
GS1 DataBar Omnidirectional
GS1 Databar Truncated
GS1-128
Interleaved 2 of 5
ISBT 128
ITF-14
Matrix 2 of 5
MSI-Plessey
UK Plessey Code
Straight 2 of 5 IATA
Straight 2 of 5 Industrial
Telepen
Trioptic Code
UPC-A
UPC-A With Add-On
UPC-A With Extended Coupon Code
UPC-E
UPC-E With Add-On
UPC-E1 (Obsolete)

Stacked:

Codablock F
GS1 Composite
GS1 Databar Expanded Stacked
GS1 Databar Stacked
GS1 Databar Stacked Omnidirectional
MicroPDF417
PDF417

Matrix:

Aztec Code
Chinese Sensible Code (Han Xin Code)
Data Matrix
MaxiCode
QR Code And Micro QR Code

Postal:

Australian Post
British Post
Canadian Post
ID-tag (UPU 4-State)
Infomail Barcode A
Intelligent Mail Barcode
Japanese Post
Netherlands (KIX) Post
Korea Post
Planet Code
Postnet

OCR:

OCR MICR (E 13 B)
OCR-A
OCR-B

Light Source:

LED

Maximum Scan Resolution:

7.50 mil

Depth of Field:

1.5" - 5.8"@5.2mil - 1D
1" - 9"@7.5mil - 1D
0" - 13"@13mil - 1D
0" - 13"@10mil - PDF
0" - 17"@15mil - PDF

Scan Pattern:

Omni-directional

Physical Characteristics

Color:

Dark Gray

Height:

25.1 ft

Width:

4.4"

Depth:

7.2"

Weight (Approximate):

8 oz

Miscellaneous

Additional Information:

Supported Interfaces:

USB
RS232
Keyboard Wedge
IBM 46xx (RS485)

USB Cable separate

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE

Warranty

Limited Warranty:

5 Year

Item Numbers

UNSPSC: 43211701

Reviews

Q&A

Accessories

Service Contracts

Get help from a Barcoding Expert!

The Metrologic MK1690-61A62 Barcode Scanner is also known as MET-MK169061A62 or MK169061A62.
