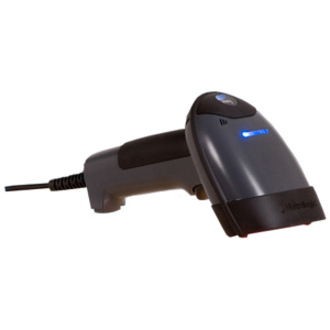

Honeywell MK1690-61A38 Barcode Scanner

Metrologic MS1690 Focus - USB kit. Includes stand, USB cable and user's manual.
  • Minimizes your manual entry and provides reliable scanning in a durable form factor
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
  • Laser-free design provides high-performance scanning without the risk of eye injury
Read More

Full specifications (PDF)

Omnidirectional scanning of all standard barcodes

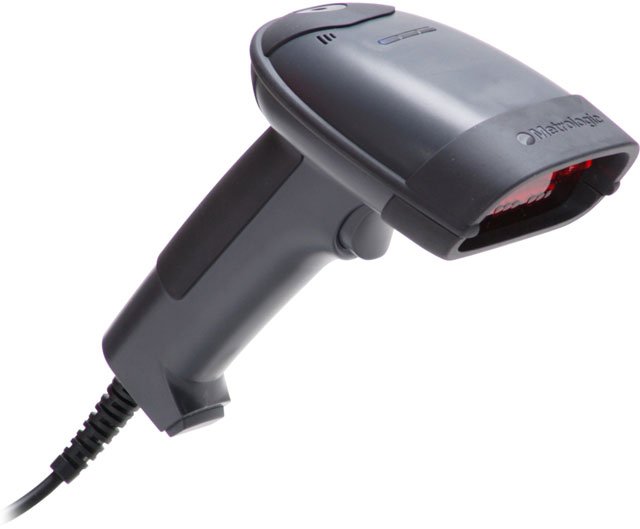

The Metrologic MS1690 Focus is a high performance handheld area imager. This omnidirectional scanner decodes virtually all of today's standard barcodes including 1D, RSS, PDF417, MicroPDF, EAN/UCC Composite, Matrix and Postal Codes regardless of orientation.
Metrologic MK1690-61A38 Overview

Metrologic Focus MS1690 Bar Code Reader is a high performance hand-held area imager that decodes all of today standard bar codes including 1D, RSS, PDF417, microPDF, EAN/UCC Composite, Matrix and Postal Codes regardless of orientation. Focus laser like reading of 1D codes and omni-directional reading of 2D codes combined with a competitive price make it the obvious solution to a broad array of applications such as retail, healthcare, shipping/receiving and supply chain management.

Full specifications (PDF)

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • All Standard 1D Symbologies
  • RSS
  • PDF 417
  • Micro PDF
  • MaxiCode
  • DataMatrix
  • QR Code
  • UCC/EAN Composite Codes
  • Postal Code
  • Aztec
Light Source:
LED
Image Sensor Type:
Imager
Maximum Scan Resolution:
10 mil
Depth of Field:
  • 0.5" - 3"@5.2mil
Scan Pattern:
Omni-directional
Stand Included:
Yes
Interfaces/Ports
Host Interface:
USB
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
  • Black
  • Dark Gray
Height:
7.2"
Width:
1.2"
Depth:
4.9"
Weight (Approximate):
8 oz
Miscellaneous
Package Contents:
  • Focus MS1690 Bar Code Reader
  • USB HID Keyboard Type A Cable
  • Flex Stand
  • Manuals
Additional Information:

Supported Interfaces:

  • Keyboard Wedge
  • Serial
  • USB
  • IBM 46XX
  • Certifications & Standards:
    • RoHS Compliant

    EMC:

    • FCC Class A
    • IEC60825-1 LED Safety

    LED Class:

    • Class 1; IEC60825-1:1993/A1:1997+A2:2001
    • Class 1; EN60825-1:1994/A11:1996+A2:2001
    Environmentally Friendly:
    Yes
    Environmental Certification:
    RoHS
    Item Numbers
    GTIN: 5052217226563
    EAN: 5052217226563
    UNSPSC: 43211701
