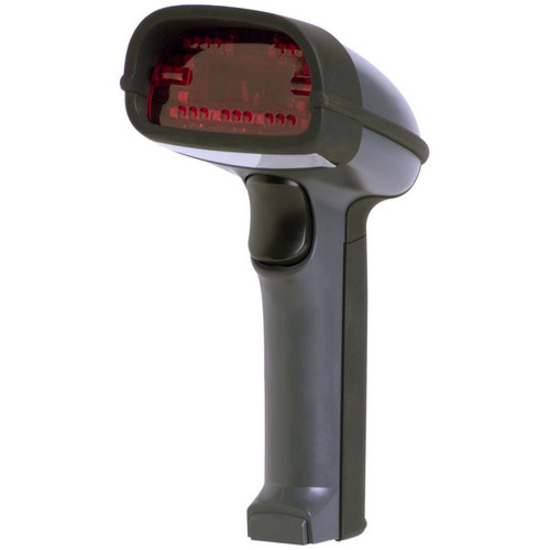

Metrologic MK1633-61B538-HA Barcode Scanner

The Metrologic MK1633-61B538-HA Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Metrologic MS1633 FocusBT - MS1633 FocusBT Scanner (Access PT, USB, Power Supply, Stand and Healthcare Software Loaded)

Minimizes your manual entry and provides reliable scanning in a durable form factor
Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
LED aimer is a perfect choice for patient-facing applications
With Bluetooth technology, you can scan barcodes and then transmit data from the base

Need a different version? See all Metrologic MS1633 FocusBT Barcode Scanners

Discontinued Need Assistance?

Add to Quote

Metrologic MK1633-61B538-HA Barcode Scanner

Overview

Full specifications (PDF)

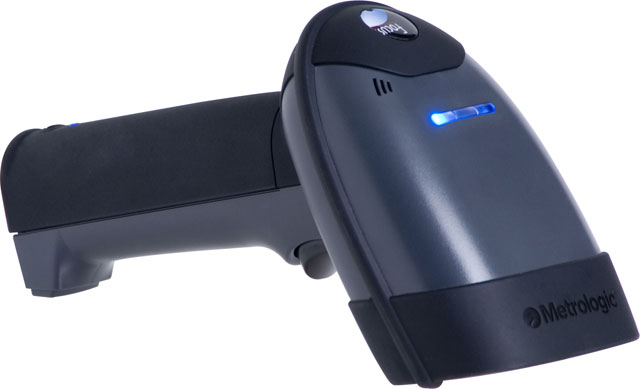

Metrologic MS1633 FocusBT Barcode Scanner Model Overview

The Metrologic MS1633 FocusBT is the most powerful cordless imager on the market. The MS1633 FocusBT is improving applications in a wide variety of industries, including retail, healthcare, warehousing, and manufacturing. Not only does the scanner deliver the convenience of Bluetooth cordless technology, it even stores data scanned while travelling beyond the range of its Bluetooth radio. As soon as you return to the area, the scanner automatically transfers its stored information. Omnidirectional "Firstflash" scanning means that you will pick up codes instantaneously from any angle or orientation, whether they be 1D, 2D, RSS, PDF417, microPDF, EAN/UCC Composite, Matrix or Postal Codes.

Metrologic MK1633-61B538-HA Barcode Scanner Overview

The MS1633 FocusBT wireless area-imaging scanner combines the freedom of Bluetooth® wireless technology with features found in the popular MS1690 Focus. Patented RangeGate technology allows the FocusBT to scan and store bar codes when out of range of a host system. Stored scans are automatically downloaded to the host when the connection is re-established

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Wireless

Scanning Capability:

Barcode Symbology Supported:

Linear:

ABC Codabar (American Blood Commission)
China Post
Codabar
Code 11
Code 128
Code 32 Pharmaceutical (PARAF)
Code 39
Code 93 and 93i
EAN-13 (including Bookland EAN)
EAN-13 with Add-On
EAN-13 with Extended Coupon Code
EAN-8
EAN-8 with Add-On
GS1 Databar Expanded
GS1 Databar Limited
GS1 DataBar Omnidirectional
GS1 Databar Truncated
GS1-128
Interleaved 2 of 5
ISBT 128
ITF-14
Matrix 2 of 5
MSI-Plessey
UK Plessey Code
Straight 2 of 5 IATA
Straight 2 of 5 Industrial
Telepen
Trioptic Code
UPC-A
UPC-A with Add-On
UPC-A with Extended Coupon Code
UPC-E
UPC-E with Add-On
UPC-E1 (obsolete)

Stacked:

Codablock F
GS1 Composite
GS1 Databar Expanded Stacked
GS1 Databar Stacked
GS1 Databar Stacked Omnidirectional
MicroPDF417
PDF417

Matrix:

Aztec Code
Chinese Sensible Code (Han Xin Code)
Data Matrix
MaxiCode
QR Code and Micro QR Code

Postal:

Australian Post
British Post
Canadian Post
ID-tag (UPU 4-State)
Infomail Barcode A
Intelligent Mail Barcode
Japanese Post
Netherlands (KIX) Post
Korea Post
Planet Code
Postnet

OCR:

OCR MICR (E 13 B)
OCR-A
OCR-B

Light Source:

LED

Image Sensor Type:

CMOS

Maximum Scan Resolution:

7.50 mil

Depth of Field:

2" - 4.3"@5.2mil - 1D
1.3" - 7.3"@7.5mil - 1D
0" - 13"@10mil - PDF
0" - 17"@15mil - PDF
0" - 13"@13mil - 1D

Scan Pattern:

Omni-directional

Network & Communication

Bluetooth:

Yes

Battery Information

Battery Chemistry:

Lithium Ion (Li-Ion)

Physical Characteristics

Height:

4.9"

Width:

3.1"

Depth:

7.2"

Weight (Approximate):

10.20 oz

Miscellaneous

Additional Information:

USB Cable separate

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE

Warranty

Limited Warranty:

2 Year

Item Numbers

UNSPSC: 43211701

Reviews

Q&A

Accessories

Service Contracts

Get help from a Barcoding Expert!

The Metrologic MK1633-61B538-HA Barcode Scanner is also known as MET-MK1633-61B538-HA or MK163361B538HA.
