Meru OAP433E Data Networking

Part Number: OAP433E

Model: MC-Series

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Wireless LAN Standard

IEEE 802.11n

ISM Band

Yes

UNII Band

Yes

ISM Minimum Frequency

2.41 GHz

Product Description:

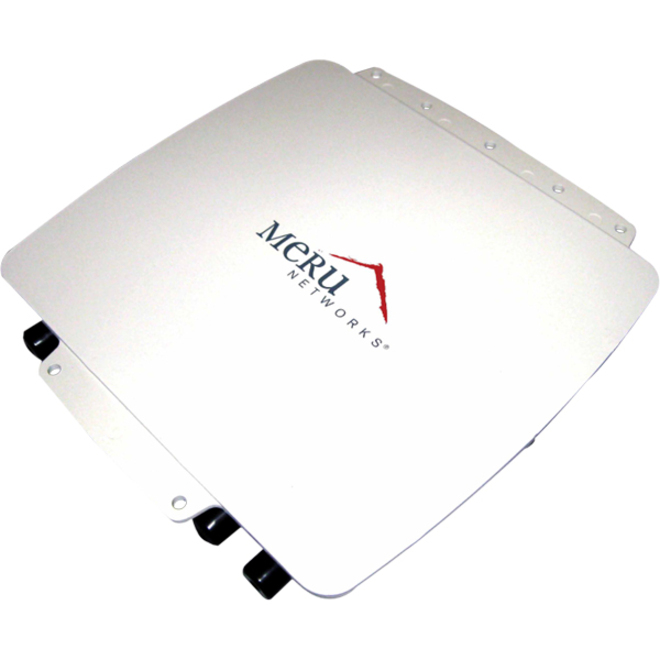

Meru OAP433e IEEE 802.11n 800 Mbit/s Wireless Access Point - 1 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - PoE Ports - Wall Mountable, Pole-mountable

Explore all Meru MC-Series Accessories

Add to Quote

Detailed Specs

Technical Information

Wireless LAN Standard:

IEEE 802.11n

ISM Band:

Yes

UNII Band:

Yes

ISM Minimum Frequency:

2.41 GHz

ISM Maximum Frequency:

2.47 GHz

UNII Minimum Frequency:

5.18 GHz

UNII Maximum Frequency:

5.83 GHz

Total Number of Antennas:

Antenna Gain:

6 dBi
8 dBi

Antenna Type:

Omnidirectional Antenna

Antenna Connector:

N-Type

Wireless Transmission Speed:

800 Mbit/s

Wireless Security:

WPA
WPA2
IEEE 802.1x
40/128-bit WEP
TKIP
AES
RADIUS
MAC Filtering
EAP-TLS
EAP-TTLS
EAP-PEAP
MSCHAPv2
EAP-LEAP
EAP-FAST
EAP-MD5
SSH
IEEE 802.11i

Features:

Quality of Service (QoS)

Interfaces/Ports

Ethernet Technology:

Ethernet
Fast Ethernet
Gigabit Ethernet

Number of Network (RJ-45) Ports:

Network (RJ-11):

PoE (RJ-45) Port:

Yes

VGA:

HDMI:

Audio Line Out:

Serial Port:

Yes

USB:

Yes

Powerline:

Management Port:

Yes

Management & Protocols

Management:

Web Based Management
SNMP
CLI
Telnet
E(z)RF Management Suite
VLAN

Physical Characteristics

Form Factor:

Wall Mountable
Pole-mountable

Height:

10.3"

Width:

9.9"

Depth:

2.9"

Weight (Approximate):

4 lb

Miscellaneous

Package Contents:

OAP433e Wireless Access Point
Diameter Pole Bracket
Wall-Mounting Bracket

Certifications & Standards:

IEEE Standards:

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3af
IEEE 802.1x
IEEE 802.11i

Radio:

FCC Part 15.247
FCC Part 15.407 (US)
RSS-210 (Canada)
EN 300 328
ARIB STD-T66
IDA
RCR STD-33
ARIB STD-T71 (Japan)
EN 301 893(EU)

Safety:

UL 60950-1
IEC 60950-1
EN 60950-1
CAN/CSA-C22.2
No. 60950-1

Emissions:

EN 55022 Class B
EN 55024
EN 60601-1-2
EN 301 489-1
EN 301 489-17
ICES-003 Class B
FCC Part 15, Class B

Item Numbers

UNSPSC: 43222631
