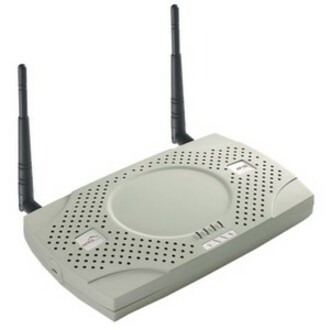

Meru AP150-CB Access Point

The Meru AP150-CB Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Meru AP150-CB - Meru AP150-CB Wireless Workgroup Bridge - IEEE 802.11a/b/g 54Mbps - 1 x 10/100Base-TX

For devices that do not have a wireless client adapter, use this wireless workgroup bridge to provide wireless access connectivity to wired client
Build a reliable home or business network with this Wireless Workgroup Bridge, that features IEEE 802.11a/b/g technology and speeds up to 54 Mbit/s
Link your Wi-Fi traffic to your wired network with Fast Ethernet port
With PoE Port, transfer data and power from a single cable to places where a power outlet is not present

Need a different version? See all Meru AP150-CB Access Points

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

Meru AP150-CB Access Point Model Overview

The Meru AP150-CB workgroup bridge can be utilized as an access point, enabled by a software upgrade, as needs change for the ultimate in deployment flexibility. AP150-CB bridge supports all 2.4 GHz or 5GHz channels available within each supported regulatory domain. High output power and antenna diversity ensure the best possible range and throughput, with connectors to attach high-gain antennas for specialized applications.

Meru AP150-CB Access Point Overview

AP150-CB Wireless Workgroup Bridge is to deliver a secure, high performance wireless connectivity for enterprise wired equipment. This access point is provide a superior performance over most embedded WLAN adapters. It includes support for all 2.4 GHz or 5GHz channels available within each supported regulatory domain.

Detailed Specs

Full specifications (PDF)

Technical Information

Wireless LAN Standard:

IEEE 802.11a/b/g

ISM Band:

Yes

UNII Band:

Yes

ISM Maximum Frequency:

2.40 GHz

UNII Minimum Frequency:

5.18 GHz

UNII Maximum Frequency:

5.83 GHz

Antenna Gain:

2.2 dBi

Antenna Type:

Dipole Antenna

Antenna Connector:

RP-SMA Connector

Wireless Transmission Speed:

54 Mbit/s

Wireless Security:

WPA
WPA2
AES
SSH
TKIP
64/128-bit WEP

Interfaces/Ports

Ethernet Technology:

Fast Ethernet

Number of Network (RJ-45) Ports:

PoE (RJ-45) Port:

Yes

Management Port:

Yes

Management & Protocols

Management:

Telnet
DHCP

Physical Characteristics

Height:

1.3"

Depth:

5.5"

Weight (Approximate):

15.20 oz

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 43222631
