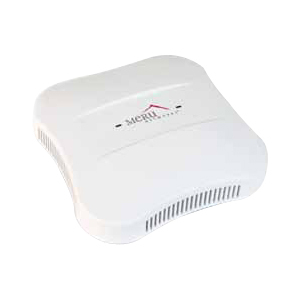

Meru AP1020i Access Point

The Meru AP1020i Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Meru AP1000i Series - Meru AP1020i IEEE 802.11n 300 Mbit/s Wireless Access Point - 2 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - PoE Ports - Wall Mountable, Ceiling Mountable
  • Provide your business with a wireless solution that ensures a speedy and steady data transfer rate
  • With IEEE 802.11n network technology and data transfer rate of up to 300 Mbit/s, enjoy superior HD media playback and lag-free gaming
  • Gigabit Ethernet port for ultra-fast wired network speeds
  • Its management capability provides efficient control over setup and configuration of your network
Read More

Need a different version? See all Meru AP1000i Series Access Points

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Meru AP1020i Access Point
Meru AP1020i Access Point Meru AP1020i Access Point Meru AP1020i Access Point
Meru AP1020i Access Point
Meru AP1020i Access Point
Meru AP1020i Access Point
Full specifications (PDF)
Meru AP1000i Series Access Point Model Overview
Businesses need to rely on connectivity and the Meru AP1000i Series is engineered to provide the world's most reliable mobile connectivity. Supporting both the 2.4GHz and the 5GHz spectrum and backwards compatible with 802.11a, 802.11b and 802.11g, the AP1000i Series is an ideal solution to transition your network to 802.11n without leaving your legacy clients behind.
Meru AP1020i Access Point Overview

With the AP-1000i 802.11n wireless access point, Meru redefnes what's possible in the extended enterprise by taking an uncompromising approach to designing world-class connectivity and performance and meeting aggressive budget requirements.

Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.47 GHz
UNII Minimum Frequency:
5.18 GHz
UNII Maximum Frequency:
5.83 GHz
Antenna Gain:
  • 4 dBi
  • 5 dBi
Antenna Type:
Omnidirectional Antenna
Wireless Transmission Speed:
300 Mbit/s
Wireless Security:
  • WEP 40/128 bit
  • TKIP
  • AES
  • MAC Filtering
  • RADIUS
  • IEEE 802.1x
  • WPA
  • WPA2
Features:
MIMO Technology
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
2
PoE (RJ-45) Port:
Yes
Serial Port:
Yes
USB:
Yes
Management Port:
Yes
Management & Protocols
Management:
  • HTTPS
  • CLI
  • Web Based GUI
  • SNMP
  • Telnet
  • E(z)RF Management Suite
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Ceiling Mountable
Height:
2.2"
Width:
6.7"
Depth:
6.7"
Weight (Approximate):
1 lb
Miscellaneous
Certifications & Standards:
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
  • IEEE 802.3
  • IEEE 802.3u
  • UL 60950-1
  • CAN/CSA-C22.2 No. 60950-1
  • IEC 60950-1
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 5054484996163
EAN: 5054484996163
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Meru AP1020i Access Point is also known as MER-AP1020I
