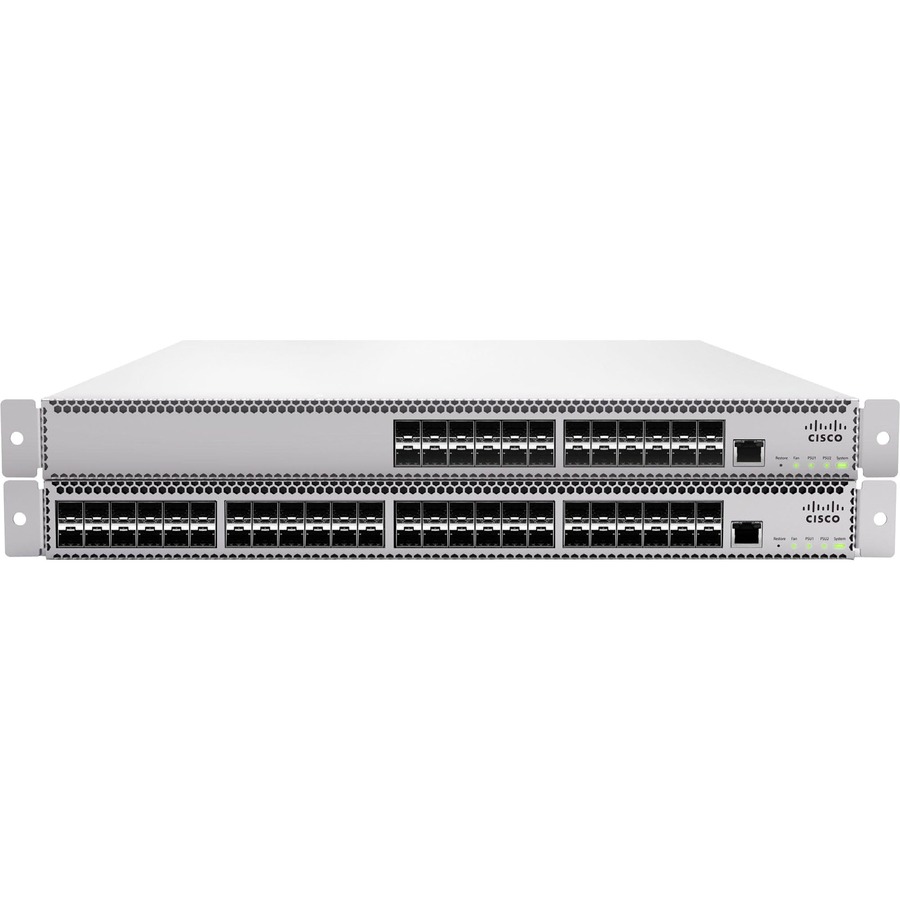

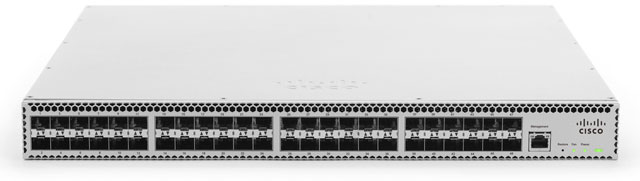

Cisco Meraki MS420-48-HW Network Switch

Part Number: MS420-48-HW
Model: MS420-48
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Token Ring Port
No
LRE Port
No
Uplink Port
No
Bypass
No

Product Description:

  Cloud-managed 48 port 10 GbE aggregation switch
Explore all Cisco Meraki MS420-48 Network Switches
Add to Quote
Cisco Meraki MS420-48-HW Network Switch
Cisco Meraki MS420-48-HW Network Switch
Cisco Meraki MS420-48-HW Network Switch Cisco Meraki MS420-48-HW Network Switch
Full specifications (PDF)

Cisco Meraki MS420-48 Network Switch Model Overview

The Cisco Meraki MS420 is the world’s first cloud-managed 10 Gigabit Ethernet aggregation switch bringing the benefits of the cloud: simplified management, reduced complexity, network wide visibility and control, and lower cost for campus deployments. Cisco Meraki aggregation switches extend Meraki’s cloud management to campus deployments. Just like our access switches, these 10 Gigabit Ethernet aggregation switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches
Cisco Meraki MS420-48-HW Network Switch Overview
The Cisco Meraki MS is the world's first cloud-managed 10 Gigabit Ethernet aggregation switch bringing the benefits of the cloud: simplified management, reduced complexity, network wide visibility and control, and lower cost for campus deployments.

Expanding Cloud Management to the Campus

Cisco Meraki aggregation switches extend Meraki's cloud management to campus deployments. Just like our access switches, these 10 Gigabit Ethernet aggregation switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.
Full specifications (PDF)
Interfaces/Ports
Token Ring Port:
No
LRE Port:
No
Uplink Port:
No
Bypass:
No
Modular:
No
Management Port:
Yes
Port/Expansion Slot Details:
48 x Gigabit Ethernet Expansion Slot
Media & Performance
Ethernet Technology:
10 Gigabit Ethernet
Network Technology:
10GBase-X
I/O Expansions
Number of Total Expansion Slots:
48
Expansion Slot Type:
  • SFP
  • SFP+
Shared SFP Slot:
No
Number of SFP+ Slots:
48
Network & Communication
Layer Supported:
3
Management & Protocols
Manageable:
Yes
Management:
  • Web-based Management
  • DHCP
  • VLAN
  • CLI
  • QoS
Power Description
PoE (RJ-45) Port:
No
Power Source:
Power Supply
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
1.8"
Width:
17.3"
Depth:
18.6"
Weight (Approximate):
18.10 lb
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0710882829506, 0810979011804
UPC: 710882829506, 810979011804
EAN: 0710882829506, 0810979011804
UNSPSC: 43222612
