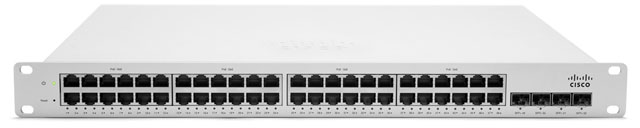

Cisco Meraki MS320-48LP-HW Network Switch

The Cisco Meraki MS320-48LP-HW Network Switch has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Cisco Meraki MS320-48 - Cloud-Managed L3 48 Port Gigabit 370W PoE Switch
  • Layer 3 Switch ensures productivity by providing an efficient, hassle-free connection
  • Lets you conveniently connect different networks to enable improved flexibility to your infrastructure
  • Electrical power is transmitted along with data in a single cable?to devices such as Access Points, IP cameras or IP phones
  • Features 48 networking ports to establish large network
  • Built-in power supply to ensure all components are being supplied with accurate voltage
  • Supports layer 3 switching for enhanced performance and usability
  • Rack-mountable form factor for your convenience and simplicity of usage
  • Managed switch provides a reliable foundation for your network
  • Gigabit Ethernet port for ultra-fast network speeds
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Read More

Need a different version? See all Cisco Meraki MS320-48 Network Switches

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Cisco Meraki MS320-48LP-HW Network Switch
Cisco Meraki MS320-48LP-HW Network Switch Cisco Meraki MS320-48LP-HW Network Switch
Cisco Meraki MS320-48LP-HW Network Switch
Cisco Meraki MS320-48LP-HW Network Switch
Full specifications (PDF)
Cisco Meraki MS320-48 Network Switch Model Overview
The MS320 is the flagship Meraki layer 3 access switch, designed for high-speed connectivity and high availability, with optional redundant power supplies. In addition, the MS320’s full-PoE models are ideal for next generation 802.11ac wireless AP, including the Meraki MR34 — with plenty of budget to spare for other PoE clients.
Cisco Meraki MS320-48LP-HW Network Switch Overview

The Cisco Meraki MS is the world's frst cloud-managed switch, bringing the benefts of the cloud to enterprise networks: simplifed management, reduced complexity, network wide visibility and con-trol, and lower cost for branch and campus deployments.

Cisco Meraki access switching is available in two product lines - the MS220 and MS320 families. Mission-critical features - like deep, Layer 7 application visibility, virtual stacking, QoS for business critical applications, 802.1X access control, and more - are present in both families.

Full specifications (PDF)
Interfaces/Ports
Total Number of Network Ports:
48
Token Ring Port:
No
LRE Port:
No
Uplink Port:
Yes
Bypass:
No
Modular:
No
Management Port:
No
USB:
No
Number of PoE (RJ-45) Ports:
48
Port/Expansion Slot Details:
  • 48 x Gigabit Ethernet Network
  • 4 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
Twisted Pair
Ethernet Technology:
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology:
10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots:
4
Expansion Slot Type:
SFP+
Shared SFP Slot:
No
Number of SFP+ Slots:
4
Network & Communication
Layer Supported:
3
Management & Protocols
Manageable:
Yes
Management:
  • Web-based Management
  • DHCP
  • SNMPD
  • VLAN
  • QoS
Reliability
MTBF:
282970 Hour
Power Description
PoE (RJ-45) Port:
No
Power Source:
Power Supply
Physical Characteristics
Form Factor:
  • Rack-mountable
  • Desktop
Height:
1.8"
Width:
19.1"
Depth:
17.3"
Weight (Approximate):
9.70 lb
Miscellaneous
Package Contents:
  • Cloud-Managed L3 48 Port Gigabit 370W PoE Switch
  • Rack Mount Hardware
  • Desktop-Mount Hardware
  • Modular power supply and a US power cord
Certifications & Standards:
  • CSA (US)
  • IC (Canada)
  • CE (Europe)
  • C-Tick (Australia/New Zealand)
IEEE Standards:
  • 802.3
  • 802.3u
  • 802.3ab
  • 802.1p
  • 802.1Q
  • 802.1D
  • 802.1ab
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0000011430193, 0710882829476, 0810979011774
UPC: 000011430193, 710882829476, 810979011774
EAN: 0000011430193, 0710882829476, 0810979011774
UNSPSC: 43222612
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Cisco Meraki MS320-48LP-HW Network Switch is also known as CSC-MS32048LPHW
