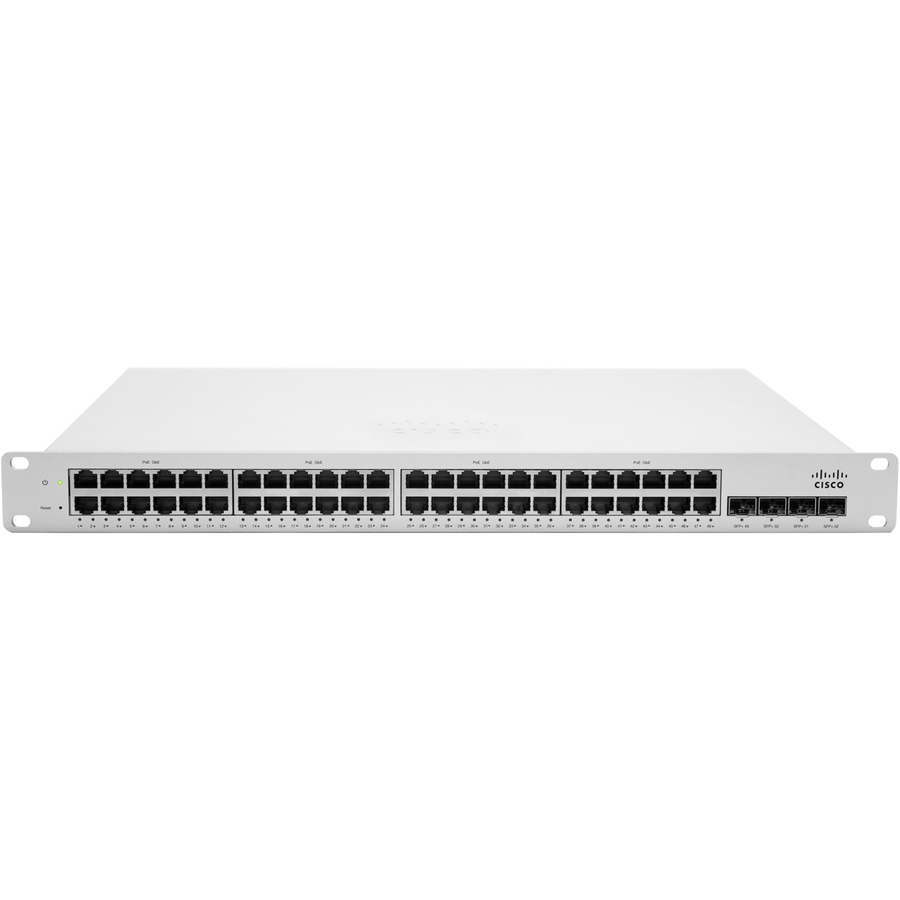

Cisco Meraki MS320-48FP-HW Network Switch

Part Number: MS320-48FP-HW
Model: MS320-48
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Total Number of Network Ports
48
Token Ring Port
No
LRE Port
No
Uplink Port
Yes

Product Description:

  Cloud-Managed L3 48 Port Gigabit 740W PoE Switch
Explore all Cisco Meraki MS320-48 Network Switches
Add to Quote
Cisco Meraki MS320-48FP-HW Network Switch
Cisco Meraki MS320-48FP-HW Network Switch
Cisco Meraki MS320-48FP-HW Network Switch Cisco Meraki MS320-48FP-HW Network Switch
Full specifications (PDF)

Cisco Meraki MS320-48 Network Switch Model Overview

The MS320 is the flagship Meraki layer 3 access switch, designed for high-speed connectivity and high availability, with optional redundant power supplies. In addition, the MS320’s full-PoE models are ideal for next generation 802.11ac wireless AP, including the Meraki MR34 — with plenty of budget to spare for other PoE clients.
Cisco Meraki MS320-48FP-HW Network Switch Overview

The Cisco Meraki MS is the world's frst cloud-managed switch, bringing the benefts of the cloud to enterprise networks: simplifed management, reduced complexity, network wide visibility and con-trol, and lower cost for branch and campus deployments.

Cisco Meraki access switching is available in two product lines - the MS220 and MS320 families. Mission-critical features - like deep, Layer 7 application visibility, virtual stacking, QoS for business critical applications, 802.1X access control, and more - are present in both families.

Full specifications (PDF)
Interfaces/Ports
Total Number of Network Ports:
48
Token Ring Port:
No
LRE Port:
No
Uplink Port:
Yes
Bypass:
No
Modular:
No
Management Port:
No
USB:
No
Number of PoE+ (RJ-45) Ports:
48
Port/Expansion Slot Details:
  • 48 x Gigabit Ethernet Network
  • 4 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
Twisted Pair
Ethernet Technology:
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology:
10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots:
4
Expansion Slot Type:
SFP+
Shared SFP Slot:
No
Number of SFP+ Slots:
4
Network & Communication
Layer Supported:
3
Management & Protocols
Manageable:
Yes
Management:
  • Web-based Management
  • DHCP
  • SNMPD
  • VLAN
  • QoS
Power Description
PoE (RJ-45) Port:
No
Power Source:
Power Supply
Redundant Power Supply Supported:
Yes
Physical Characteristics
Form Factor:
  • Rack-mountable
  • Desktop
Height:
1.8"
Width:
19.1"
Depth:
17.3"
Weight (Approximate):
9.70 lb
Miscellaneous
Package Contents:
  • Cloud-Managed L3 48 Port Gigabit 740W PoE Switch
  • Rack Mount Hardware
  • Desktop-Mount Hardware
Certifications & Standards:
  • CSA (US)
  • IC (Canada)
  • CE (Europe)
  • C-Tick (Australia/New Zealand)
IEEE Standards:
  • 802.3
  • 802.3u
  • 802.3ab
  • 802.1p
  • 802.1Q
  • 802.1D
  • 802.1ab
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0710882829483
UPC: 710882829483
EAN: 0710882829483
UNSPSC: 43222612
