Cisco Meraki MS225 Series Ethernet Switch Model Overview
The Cisco Meraki MS225 Series Switches are purpose-built for branch and campus environments, providing robust layer 2 access switching. Designed for seamless deployment, these stackable access switches come with 10G SFP+ uplinks on every model and support up to 740 watts of PoE+, allowing you to power devices such as access points, IP cameras, and phones effortlessly. Their cloud-managed architecture enables zero-touch provisioning, giving your IT teams the tools to monitor and manage thousands of switches via a centralized platform, ensuring remarkable reliability and scalability in network management.
Key Features

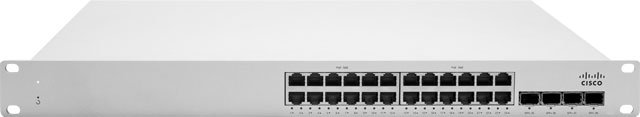

Available in 24 and 48 port models with optional PoE+ support
4 x 10G SFP+ uplink interfaces across all models
Centralized management with virtual stacking capabilities
Remote diagnostics including cable testing and packet capture
Automatic firmware updates and alerts for proactive network management
Specifications
Performance: Switching capacity of 128 Gbps (24-port) and 176 Gbps (48-port)
Power Options:
Power input: 100 - 240 VAC
Available PoE+ power: up to 740 watts
Features:
IEEE 802.1X and RADIUS support for security
DHCP snooping and port security features
Environmental: Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
Dimensions: Various models with specifications from 1.72" x 19.08"

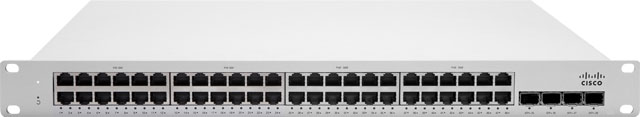

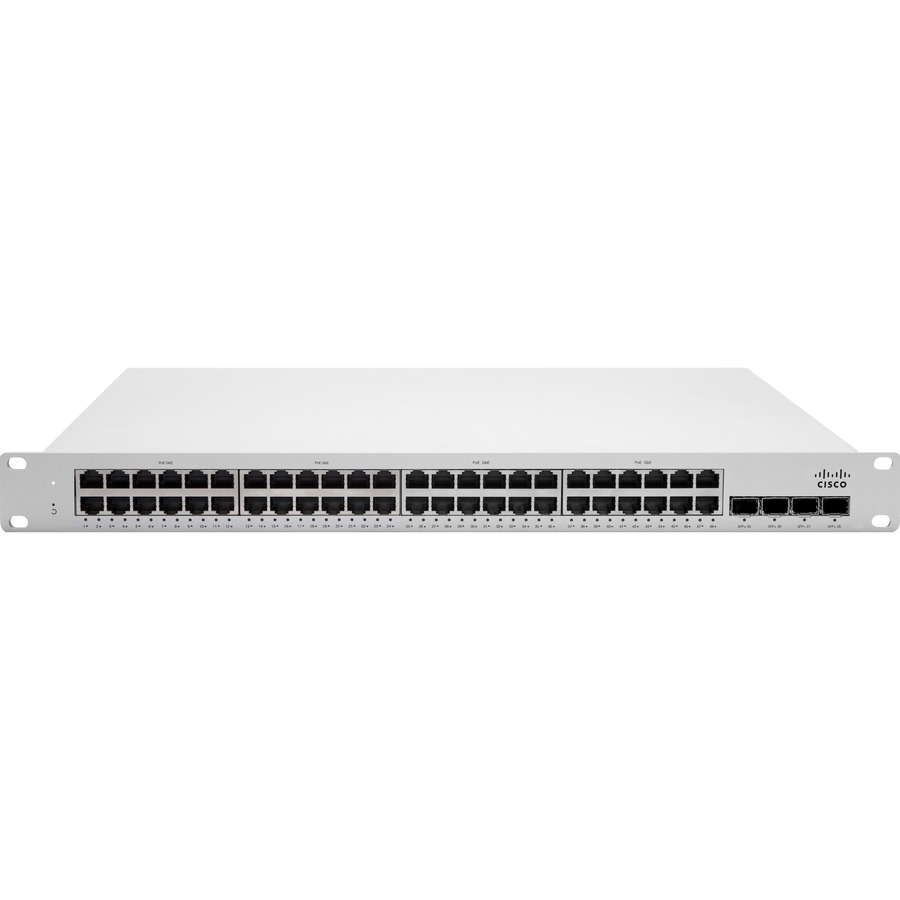

Cisco Meraki MS225-48-HW Ethernet Switch Overview
CLOUD MANAGED STACKABLE ACCESS SWITCHES
The Cisco Meraki MS225 series switches provide layer 2 access switching and are ideal for deploying to branch locations. With stacking capabilities and 10G SFP+ uplinks on every model, performance is guaranteed. This family also supports an optional, rack-mountable remote PSU (Cisco RPS-2300) for power redundancy requirements
Cisco Meraki switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.
The Meraki MS is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there's no need for complicated configuration files, or even direct physical access to the switch.
Meraki's centralized management gives administrators deep visibility into the network and how it's used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search. Stackable access switches with 10G SFP+ uplinks, designed for the branch and campus INDUSTRY LEADING CLOUD MANAGEMENT
Cloud management has a number of benefits that make it easier to build networks large and small:
True zero-touch device provisioning
Virtual stacking: manage up to thousands of ports from a singlepane of glass.
Application layer visibility with automatic operating system,client, and hostname fingerprinting.
Powerful Live Tools such as packet capture and cable test to isolate and troubleshoot network issues.
Alerts upon power loss, downtime, or configuration changes.
Role-based administration and automatic, scheduled firmware upgrades over the web.
Regular feature updates and enhancements delivered on demand from the Meraki cloud.
The Cisco Meraki MS225-48-HW Ethernet Switch is also known as
CSC-MS22548HW
IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.
Full specifications (PDF)
