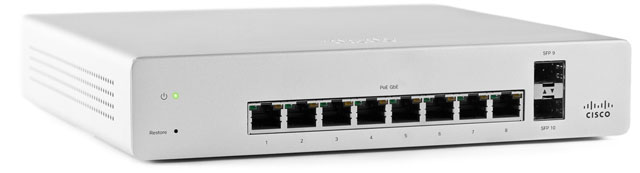

Cisco Meraki MS220-8-HW Network Switch

Part Number: MS220-8-HW
Model: MS220-8
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Total Number of Network Ports
8
Token Ring Port
No
LRE Port
No
Uplink Port
Yes

Product Description:

  Cloud-Managed L2 8 Port Gigabit Switch
Explore all Cisco Meraki MS220-8 Ethernet Switches
Add to Quote
Cisco Meraki MS220-8-HW Network Switch
Cisco Meraki MS220-8-HW Network Switch
Cisco Meraki MS220-8-HW Network Switch Cisco Meraki MS220-8-HW Network Switch
Full specifications (PDF)

Cisco Meraki MS220-8 Ethernet Switch Model Overview

The Cisco Meraki MS Cloud Managed Switches revolutionize enterprise networking with their innovative cloud-managed capabilities. Designed for both simplicity and robust performance, these switches provide unparalleled visibility and control, making them ideal for branch office and large campus deployments. With advanced features like Layer 7 application visibility, powerful QoS, and ease of management through an intuitive web interface, users can effortlessly oversee their networks without the burdens of complex configurations. Experience the future of networking with cost-effective, scalable solutions tailored to your business needs.


Key Features:
  • Cloud Management: Single-pane of glass management across multiple sites.
  • Virtual Stacking: Manage up to tens of thousands of ports instantly.
  • Layer 7 Visibility: Identify and control applications and users seamlessly.
  • Power over Ethernet (PoE): Ideal for powering access points and IP devices.
  • Lifetime Warranty: Comes with next-day advanced replacement support.

Specifications:
  • Management: Cloud-managed via Meraki dashboard.
  • Ports: Options available with 8, 24, 48 ports.
  • Power Supply: Internal and external redundant power options.
  • Power Budget: Ranges from 124W to 740W depending on model.
  • Performance: Non-blocking fabric with up to 176 Gbps switching capacity.
  • Temperature Range: Operates in environments of 32 °F to 104 °F (0 °C to 40 °C).
  • Warranty: Full lifetime warranty with support.
Cisco Meraki MS220-8-HW Network Switch Overview
Overview

 The Meraki MS is the world's first cloud-managed switch bringing the benefits of the cloud: simplified management, reduced complexity, network wide visibility and control, and lower cost for branch and campus deployments.

A Fresh Approach

Meraki switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.

Meraki switches are managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there's no need for complicated configuration files - or pre-staging.

In addition, Meraki's centralized management system gives administrators deep visibility into the network and how it's used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.
Full specifications (PDF)
Interfaces/Ports
Total Number of Network Ports:
8
Token Ring Port:
No
LRE Port:
No
Uplink Port:
Yes
Bypass:
No
Modular:
No
Management Port:
No
USB:
No
Number of Network (RJ-45) Ports:
8
Port/Expansion Slot Details:
  • 8 x Gigabit Ethernet Network
  • 2 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
Twisted Pair
Ethernet Technology:
Gigabit Ethernet
Network Technology:
10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots:
2
Expansion Slot Type:
SFP
Number of SFP Slots:
2
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
Yes
Management:
  • Web-based Management
  • DHCP
  • SNMPD
  • VLAN
  • QoS
Reliability
MTBF:
756000 Hour
Power Description
PoE (RJ-45) Port:
No
Power Source:
Power Supply
Physical Characteristics
Form Factor:
  • Desktop
  • Wall Mountable
Height:
1.8"
Width:
9.1"
Depth:
8.7"
Weight (Approximate):
2.40 lb
Miscellaneous
Package Contents:
  • Cloud-Managed 8 Port Gigabit Switch
  • Desktop-Mountable Feet
Certifications & Standards:
  • CSA (US)
  • IC (Canada)
  • CE (Europe)
  • C-Tick (Australia/New Zealand)
IEEE Standards:
  • 802.3
  • 802.3u
  • 802.3ab
  • 802.1x
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0704660777974, 0710882829421, 8109790116754
UPC: 704660777974, 710882829421
EAN: 0704660777974, 0710882829421, 8109790116754
UNSPSC: 43222612
