M-S Cash Drawer EU-103-KPC-B-Y Cash Drawer
Full specifications (PDF)

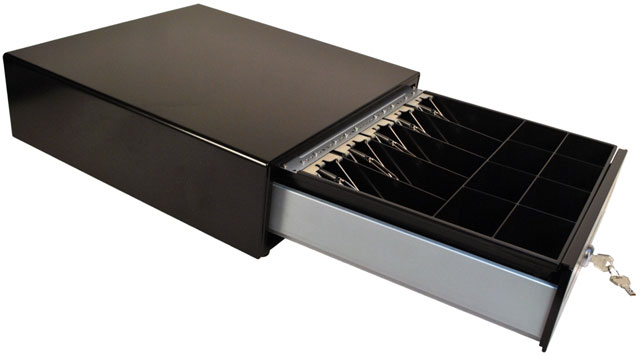

M-S Cash Drawer EU-103 Cash Drawer Model Overview
The EU-103 Compact Media Cash Drawer is designed for efficiency and durability, perfect for retail environments. Crafted from all-steel construction, this cash drawer features a sleek black or off-white powder-coated finish. It offers enhanced security with a three-function center key-lock that allows manual release, electronic release, and secure drawer locking. The standard ABS plastic money tray insert accommodates 8 coins and 5 bills, while a two-level tray design ensures ample space for rolled coins, receipts, and other media items. Durable stainless steel money clips add to its functionality, making it an excellent choice for cash management.
Key Features:
- Compact and sturdy all-steel construction
- Available in black or off-white powder-coated finish
- Three-function center key-lock: manual release, and drawer lock
- Standard ABS plastic money tray with removable 8 coin/5 bill insert
- Two-level money tray with space for rolled coins, and media
- Stainless steel money clips for durability
- Compulsory switch for added security
Specifications:
- Dimensions: 16.1" (W) x 17.7" (L) x 5.63" (H) *5.20" (H) without rubber feet
- Ship Weight: Approx. 26 lbs
- Warranty: 2 years
- Drawer release solenoid: 12v or 24v
- Available wired for any receipt printer, ECR/POS system, or computer interface
- Available Interfaces:
- Receipt Printer Interface
- Dedicated Serial Interface
- Intelligent Parallel Interface
- Intelligent Serial Interface
- USB Interface
- Optional Locking Lids:
- P/N 1051-8C (standard lock)
- P/N 1051-8C(8/4) (standard lock)
- P/N 1051-8CN (random locks)
- Available Money Trays:
- 8 coin/5 bill insert with nesting (removable) - P/N 1051-8
- 8 coin/5 bill insert - P/N 1051-8-FIXED
- 8 coin/4 bill with nesting (removable) - P/N 1051-8(8/4)
