Full specifications (PDF)
Connectivity Technology:
Wireless
LXE VX9B7RCAFF0A0AUS Data Terminal
Part Number:
VX9B7RCAFF0A0AUS
Model:
VX9 Forj

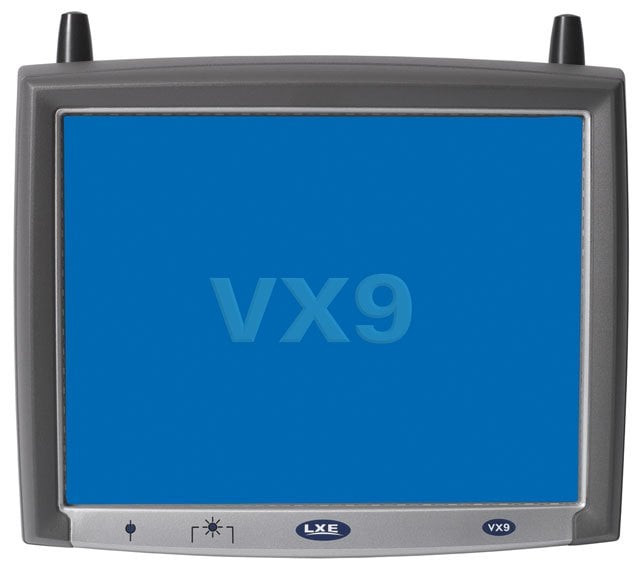

LXE VX9 Forj Data Terminal Model Overview
The LXE VX9 computer is a rugged, wirelessly-enabled Windows XP-based mobile PC with a 12.1" touch-screen display. The slim-line VX9 computer, which is available with an XGA display option, is targeted at users that need a larger screen area. Available with WWAN, WLAN and Bluetooth radios, the VX9 computer is suitable for a range of vehicle-mounted applications in challenging deployment environments, including those on fork-lift trucks, container handling machinery, forestry and construction equipment, and emergency service vehicles.
LXE VX9B7RCAFF0A0AUS Data Terminal Overview

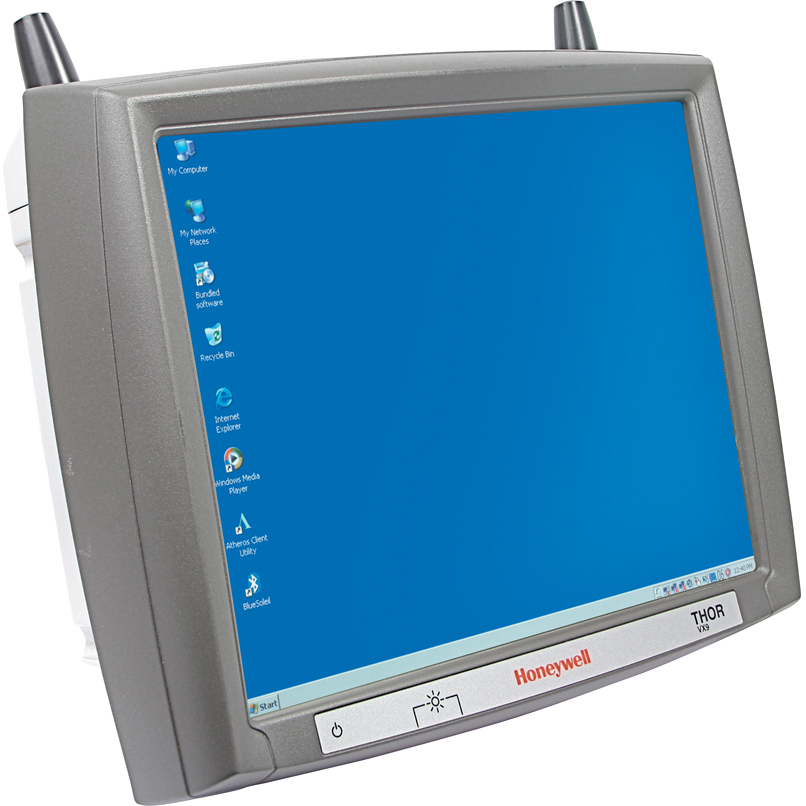

Honeywell's Thor VX9 vehicle-mount computer utilizes the strongest materials to operate in even the most challenging environments. The Thor VX9 harnesses full Microsoft® Windows® computing power in a mobile environment, optimizing application and network management compatibility. It is flexible enough to run multiple advanced applications, with a Microsoft® Windows® 7 Professional MUI, Windows® XP Professional MUI or Windows® Embedded Standard 2009 operating systems.
Technical Information
Processor & Chipset
Processor Manufacturer:
Intel
Processor Type:
Atom
Processor Speed:
1.60 GHz
Memory
Standard Memory:
2 GB
Storage
Hard Drive Capacity:
80 GB
Display & Graphics
Screen Size:
12.1"
Graphics Modes:
XGA
Display Screen Type:
LCD
Touchscreen:
Yes
Display Color:
Color
Display Resolution:
1024 x 768
Network & Communication
Antenna Form Factor:
External
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n
Interfaces/Ports
Network (RJ-45):
Yes
Serial:
Yes
USB:
Yes
Microphone:
Yes
PS/2 Port:
Yes
Physical Characteristics
Height:
9.8"
Width:
12.2"
Depth:
3.5"
Weight (Approximate):
8.16 lb
Miscellaneous
Certifications & Standards:
- IP54
- IEC 60068-2-64
- IEC 60068-2-29
- CE
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC:
43211505
Recommended Accessories
Category
- Antennas (1)
- Cables, Connectors, and Adapters (1)
- General Software (5)
- Keyboards and Front Panels (4)
- Mounting Hardware and Stands (14)
- Power Device (2)
- Scanner Accessories (1)
- Terminal Accessories (1)
Recommended Accessories for Model: LXE VX9B7RCAFF0A0AUS Data Terminal
Top Antennas Purchased With LXE VX9B7RCAFF0A0AUS
-
Honeywell VX89278ANTENNA AntennaGSM WAN Remote Antenna 8 Foot Cable (2.5 Meters) for the VX8/VX9$119.08
Top Cables, Connectors, and Adapters Purchased With LXE VX9B7RCAFF0A0AUS
-
LXE VX89055CABLE Cables, Connectors, and AdaptersCable, power with 90 degree connector, replaces VX89A055CBLPWRRANGLE$222.14
Top General Software Purchased With LXE VX9B7RCAFF0A0AUS
-
$34.21 -
$34.21 -
Honeywell VX9480WESRECOV SoftwareVX9B WINDOWS EMBEDDED STANDRD (WES) RECOVERY DVD FOR ATOM$33.34
Top Keyboards and Front Panels Purchased With LXE VX9B7RCAFF0A0AUS
-
Honeywell VX89153KEYBRD AccessoryWindows laptop style 95 key rugged keyboard with integrated 2 button mouse with Tx700 adapter cable, replaces VX89A153KBDMOUD9ADP$864.58 -
Honeywell VX89154KEYBRD Accessory95 key windows keyboard, 2 button mouse$864.58 -
Honeywell VX89158KEYBRD AccessoryKeyboard, DEKORSY, PS2, 86 key, mouse, UK english, with Tx700 adapter cable, replaces VX89A158KBDDEK86T7$635.66
Top Mounting Hardware and Stands Purchased With LXE VX9B7RCAFF0A0AUS
-
Honeywell VX89A013KIT13 Mounting Hardware and StandsMount Kit (2 Ball Truck Plate with 1 Long Arm, 330mm 13 Inch) for the VX8$392.24 -
LXE VX89A005KIT05 AccessoryTX7/TX8 Mounting Kit (1 Ball Truck Plate with 1 MED.ARM 215mm)$229.21 -
Honeywell VX89A031RAMBALL Mounting Hardware and StandsBall D-Size 2.25 Inch Flat 2.5 Inch Clamp Base (for the VX8 and VX9)In Stock$112.80
Top Power Device Purchased With LXE VX9B7RCAFF0A0AUS
-
LXE VX89351PWRSPLY Power DeviceScreen blanking switch, switchbox, universal for VX8/VX9$160.01 -
Honeywell 9000311PWRSPLY Power DeviceHoneywell Proprietary Power Supply - 9 V DC, 60 V DC Input - 60 WIn Stock$772.68
Top Scanner Accessories Purchased With LXE VX9B7RCAFF0A0AUS
-
LXE VX89A005KIT05 AccessoryTX7/TX8 Mounting Kit (1 Ball Truck Plate with 1 MED.ARM 215mm)$229.21
Top Terminal Accessories Purchased With LXE VX9B7RCAFF0A0AUS
-
LXE VX89A302PSDC48V AccessoryPower Supply (DC/DC, for 18-60V Trucks, 60W) for the VX8/9Please Call for Pricing or to Purchase
Questions? Get Help from
a Mobile Expert!
a Mobile Expert!
The LXE VX9B7RCAFF0A0AUS Data Terminal is also known as
HSM-VX9B7RCAFF0A0AUS
or VX9B7RCAFF0A0AUS.
