Full specifications (PDF)
Connectivity Technology:
Wireless
LXE VX9B7Q1AFF2A0AUS Data Terminal
Part Number:
VX9B7Q1AFF2A0AUS
Model:
VX9 Forj
LXE VX9 Forj Data Terminal Model Overview

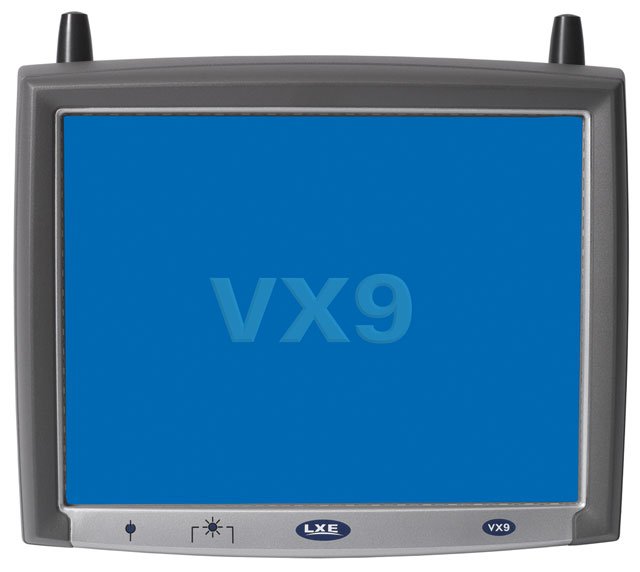

The LXE VX9 computer is a rugged, wirelessly-enabled Windows XP-based mobile PC with a 12.1" touch-screen display. The slim-line VX9 computer, which is available with an XGA display option, is targeted at users that need a larger screen area. Available with WWAN, WLAN and Bluetooth radios, the VX9 computer is suitable for a range of vehicle-mounted applications in challenging deployment environments, including those on fork-lift trucks, container handling machinery, forestry and construction equipment, and emergency service vehicles.
LXE VX9B7Q1AFF2A0AUS Data Terminal Overview

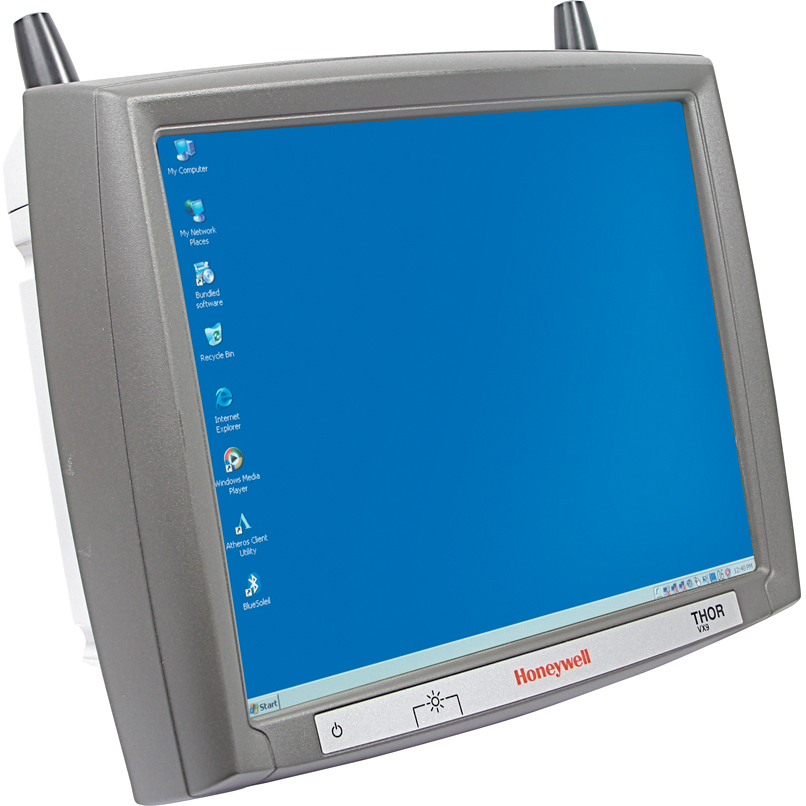

Honeywell's Thor VX9 vehicle-mount computer utilizes the strongest materials to operate in even the most challenging environments. The Thor VX9 harnesses full Microsoft® Windows® computing power in a mobile environment, optimizing application and network management compatibility. It is flexible enough to run multiple advanced applications, with a Microsoft® Windows® 7 Professional MUI, Windows® XP Professional MUI or Windows® Embedded Standard 2009 operating systems.
Technical Information
Processor & Chipset
Processor Manufacturer:
Intel
Processor Type:
Atom
Processor Speed:
1.60 GHz
Memory
Standard Memory:
1 GB
Storage
Hard Drive Capacity:
80 GB
Display & Graphics
Screen Size:
12.1"
Graphics Modes:
SVGA
Display Screen Type:
LCD
Touchscreen:
Yes
Display Color:
Color
Display Resolution:
800 x 600
Network & Communication
Antenna Form Factor:
External
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n
Interfaces/Ports
Network (RJ-45):
Yes
Serial:
Yes
USB:
Yes
Microphone:
Yes
PS/2 Port:
Yes
Software
Operating System:
Windows XP Professional Edition
Physical Characteristics
Height:
9.8"
Width:
12.2"
Depth:
3.5"
Weight (Approximate):
8.16 lb
Miscellaneous
Certifications & Standards:
- IP54
- IEC 60068-2-64
- IEC 60068-2-29
- CE
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC:
43211505
