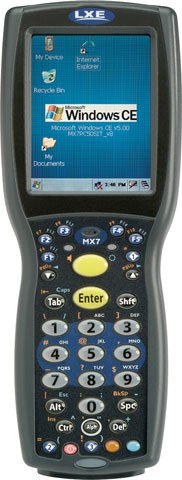

LXE MX7T2B1B1A0US4D Mobile Computer
With natural handgrip ergonomics and a sleek design for an industrial tool, the LXE Tecton delivers its enhanced performance across a wide array of supply chain tasks. The successor to LXE's highly successful MX7, the Tecton features multi-range scanning capabilities that enable barcode reads from four inches to 40 feet, so operators can perform warehouse moves ranging from receiving to full pallet put-aways with the same version of the computer. Scan-intensive picking can be enabled with the Tecton's available easy-grip removable handle with two-finger trigger, and every Tecton comes with LXE's ToughTalk technology for voice-driven processes. Tecton also features a scan vibration signal that can be used to verify successful scans, and multiple built-in data-entry options.
Technical Information
- Connectivity Technology: Wireless
- Light Source: Laser
- Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Contact Discharge
- Drop Specification:
- 59.06" To Concrete
- 70.87"
General Information
- Product Type: Handheld Terminal
- Brand Name: Honeywell
- Manufacturer: Honeywell International, Inc
- Product Model: MX7

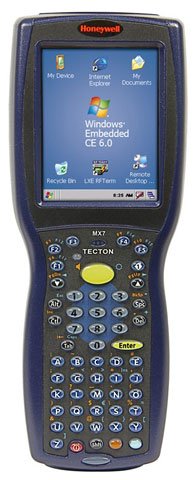

- Product Name: Tecton Mobile Computer
- Product Line: Tecton
Physical Characteristics
- Height: 8.8"
- Width: 3.4"
- Depth: 2"
Network & Communication
- Bluetooth: Yes
- Wireless LAN: Yes
- Wireless LAN Standard: IEEE 802.11a/b/g
- Wireless Security:
- WPA
- WPA2 (Personal and Enterprise)
- 802.11x
- EAP-TLS
- EAP-TTLS/MSCHAPv2
- PEAPv0/EAP-MSCHAPv2
- PEAPv1/EAP-GTC
- WMM
- CWG-RF Profile
- CCX v.4
- WAPI
Other
- Country of Origin: China
- Package Contents:
- Tecton Mobile Computer
- Battery
- Tecton Mobile Computer
- Battery
- Certifications & Standards:
- IP65
- CE
Display & Graphics
- Display Screen Type: LCD
- Screen Mode: VGA
- Screen Size: 3.5"
- Display Color: Color
- Screen Resolution: 240 x 320
Memory
- Flash Memory: 256 MB
- Standard Memory: 256 MB
- Memory Card Slot: Yes
- Memory Card Supported: Secure Digital (SD) Card
Keyboard/Keypad
- Keyboard Type: Alphanumeric
- Number of Keys: 55
Battery Information
- Battery Capacity: 2200 mAh
- Battery Included: Yes
Processor & Chipset
- Processor Speed: 806 MHz
- Processor Type: PXA320
Touchscreen Information
- Touchscreen: Yes
Warranty
- Limited Warranty: 1 Year
Software
- Operating System: Windows CE 6.0
Full specifications (PDF)| Brand | LXE |
| Model | Tecton |
| Style | Full-size |
|
