Full specifications (PDF)
System Components:
- Camera
- Monitor
LOREX L15LD404-161 CCTV Camera System
Part Number:
L15LD404-161
Model:
L15LD404-161
LOREX L15LD404-161 CCTV Camera System Model Overview
Don't be mislead by the attractive brushed aluminum finish and a modern design. The L15LD400 Series observation system is one of the most sophisticated video security systems on the market today with many of the same advanced features you will find in "high security" systems used in banks and casinos. Perfect for any upscale home or office, the L15LD400 is a complete packaged system that includes everything you need; LCD Monitor with built-in 160GB Digital video recorder, cameras, brackets, cables and power supplies.
LOREX L15LD404-161 CCTV Camera System Overview
Professional Grade security has never looked so good. Don't be mislead by the attractive brushed aluminum finish and a modern design. The L15LD400 Series observation system is one of the most sophisticated video security systems on the market today with many of the same advanced features you will find in 'high security' systems used in banks and casinos. Perfect for any upscale home or office, the L15LD400 is a complete packaged system that includes everything you need; LCD Monitor with built-in 160GB Digital video recorder, cameras, brackets, cables and power supplies.
Technical Information
Storage
Hard Drive Capacity:
160 GB
Display & Graphics
Screen Size:
15"
Screen Type:
Active Matrix TFT Color LCD
Video
Video Formats:
Motion JPEG
Video Signal Format:
- NTSC
- PAL
Maximum Resolution:
704 x 288
Maximum Frame Rate:
120 fps
Camera
Image Sensor Type:
CCD
Minimum Illumination:
0 lux
Maximum Illumination:
0.1 lux
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Interfaces/Ports
USB:
Yes
USB Standard:
USB 2.0
Network (RJ-45):
Yes
Composite Video Out:
Yes
Alarm Connector:
Yes
Serial:
Yes
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Camera Height:
5.98"
Camera Width:
2.56"
Camera Depth:
3.15"
Monitor Height:
15.39"
Monitor Width:
15.55"
Monitor Depth:
6.26"
Camera Weight:
14.11 oz
Monitor Weight:
17.64 lb
Miscellaneous

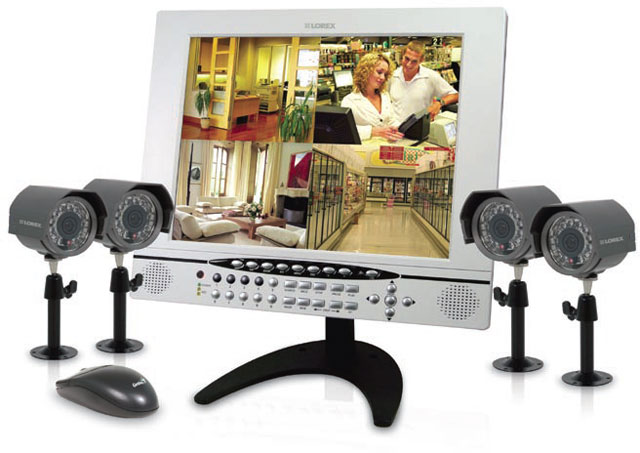

Package Contents:
- 15" LCD with Built-in 4 Channel DVR
- 4 x Night Vision CCD Cameras & Stand
- Camera 4 in 1 Power Adaptor
- 4 x Extension cable 60 ft (20m)
- Ethernet cable 10 ft (3m)
- Remote Control
- Mouse
- Software CD
Additional Information:
Monitor:
- Wall mountable
- Mouse control interface
- Trilingual interface (English, Spanish and French)
- Supports DDNS (Dynamic Domain Name Server)
- Commercial grade monitor stand
- 15" High Resolution LCD Monitor with built in DVR
- Recording Mode: Continuous, Motion, Schedule, Alarm
- A full range of LOREX Pro Series CCTV cameras available for use with this system
Built-In DVR:
- HDD cradle - easy to remove/upgrade/archive
- 160GB HDD Designed for Surveillance
- Network Interface for remote viewing over the internet
- USB (Device) port for Firmware Upgrade, Backup and Image Transfer
- Triplex Technology allows for recording, playback or viewing simultaneously
Camera:
- Day/Night Mode
- Lens/ Lens Mount: 3.6mm Fixed
- Camera powered by the monitor
- Industry standard BNC connector
- Professional Grade Weather Resistant cameras
- 12 IR LEDs provides effective night vision range of 30ft (10m)
- Versatile Camera stand allows the camera to be mounted on the Wall or Ceiling
- 4 in 1 Power adaptor powers all four cameras from one power source
Item Numbers
GTIN:
0778597154047
UPC:
778597154047
EAN:
0778597154047
UNSPSC:
46171621
