System Components:
- Monitor
- Camera

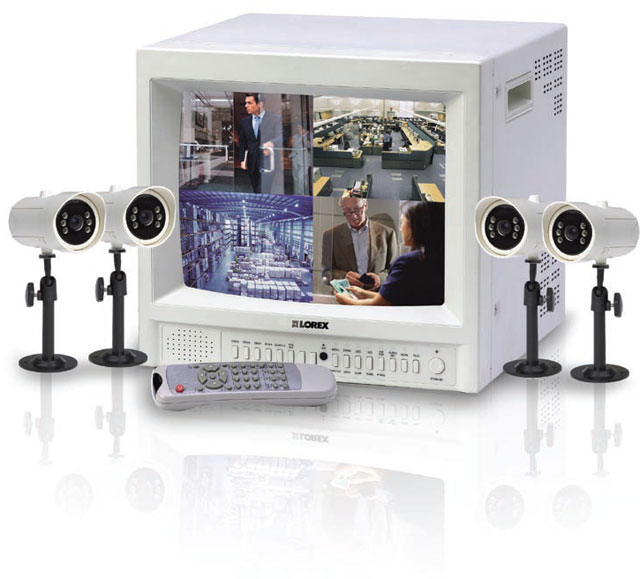

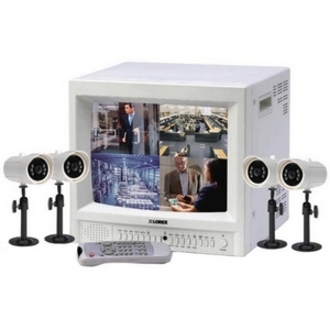

LOREX L14Q684C Video Multiplexer
Part Number:
L14Q684C
Model:
L14Q684C
LOREX L14Q684C Video Multiplexer Model Overview
The LOREX L14Q684C features Internet Viewing - View Live Video with Secure Internet Connection; View up to 4 Camera locations Simultaneously in Real Time (30 fps); Selectable or Sequential PIP viewing options; Two way Audio; Remote Control or Main Panel operation; Professional Grade 14" Color Monitor with Metal Cabinet; Includes Remote Viewing Software
LOREX L14Q684C Video Multiplexer Overview
- View Live Video with Secure Internet Connection
- View up to 4 Camera locations Simultaneously in Real Time (30 fps)
- Selectable or Sequential PIP viewing options
- Two way Audio
- Remote Control or Main Panel operation
- Professional Grade 14" Color Monitor with Metal Cabinet
- Includes Remote Viewing Software
Technical Information
Display & Graphics
Screen Size:
14"
Screen Type:
CRT
Camera
Image Sensor Type:
CMOS
Minimum Illumination:
2 lux
Maximum Illumination:
2 lux
Interfaces/Ports
Alarm Connector:
Yes
Power Description
Input Voltage:
- 220 V AC
- 240 V AC
Physical Characteristics
Product Color:
White
Camera Height:
2"
Camera Width:
2.50"
Camera Depth:
3"
Monitor Height:
12.50"
Monitor Width:
12.70"
Monitor Depth:
12.50"
Monitor Weight:
10 oz
Miscellaneous
Package Contents:
- 14" Color Quad Monitor
- 4 x Color Night Vision Cameras
- Software CD-ROM (Remote Viewing Software)
Additional Information:
Monitor Features:
- Camera Capable: Up to 8 (8 DIN/8 BNC)
- Quad Speed: 30 fps
- Network Interface: DDNS (Dynamic IP Support)
Camera Features:
- Picture Element: 510 H x 492 V
- Power Requirement: Powered from monitor via cable
- Housings: White ABS
Item Numbers
GTIN:
0778597146844
UPC:
778597146844
EAN:
0778597146844
UNSPSC:
46171621
