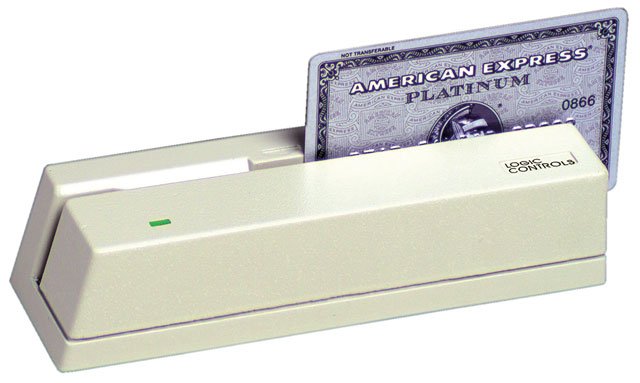

The MR3000 Magnetic Stripe Reader (MSR) family features a built-in decoder to read tracks 1 and/or 2. The housing is made of a specially designed, heavy die cast steel for unsurpassed stability. Stainless steel card guides give cards an extra smooth ride. The bi-directional reading head uses a highly durable material not found in most units today. A two color LED indicates a Good/Bad reading. This unit can operate with or without the conventional 101 keyboard being attached. Wedge and RS-232 interfaces available.
Technical Information
- Magnetic Stripe Track Configuration: Dual Track
- Minimum Swipe Speed: 3.93 in/s
- Maximum Swipe Speed: 47.24 in/s
- Magnetic Stripe Track Number:
- Magnetic Head Life: 1000 Swipe
General Information
- Product Type: Magnetic Stripe Reader
- Brand Name: Logic Controls
- Manufacturer: Bematech
- Product Model: MR3000
- Product Name: MR3000 Magnetic Stripe Reader
Physical Characteristics
- Height: 1.3"
- Width: 5.7"
- Depth: 1.8"
- Color: Black
- Weight (Approximate): 1.20 lb
Interfaces/Ports
- Interfaces/Ports: Keyboard Wedge
Other
- Package Contents:
- MR3000 Magnetic Stripe Reader
- PS/2 Cable
- Manual
- MR3000 Magnetic Stripe Reader
- PS/2 Cable
- Manual
Environmental Conditions
- Humidity:
- 10% to 95% Non-condensing Operating
- 10% to 95% Non-condensing Non-operating
- Temperature:
- 14°F (-10°C) to 131°F (55°C) Operating
- -22°F (-30°C) to 158°F (70°C) Storage
Full specifications (PDF)
Full specifications (PDF)
