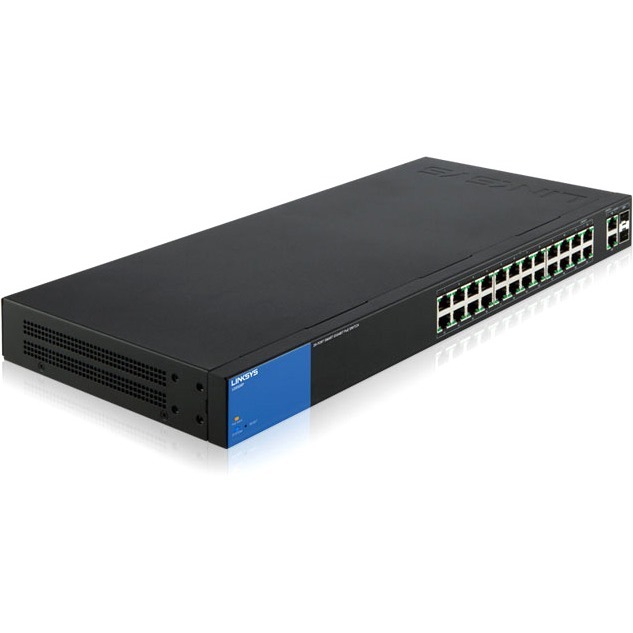

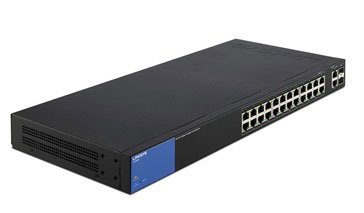

Linksys LGS326P Network Switch

The Linksys LGS326P Network Switch has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Linksys LGS326P - Linksys Business 24-Port Gigabit PoE+ (192W) Smart Managed Switch with 2 Gigabit and 2 SFP Ports - 26 Ports - Manageable - 2 Layer Supported - PoE Ports - 1U High - Rack-mountable - Lifetime Limited Warranty

Features 26 networking ports to establish large network
With PoE+ Port, transfer data and up to 25.5 W of power on a single cable to places where a power outlet is not present
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Gigabit Ethernet port for ultra-fast network speeds
Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
Managed switch provides a reliable foundation for your network
Rack mounting enables you to organize wires & secure cables for professional installation

Need a different version? See all Linksys LGS326P Network Switches

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

Linksys LGS326P Network Switch Model Overview

The LGS326P has numerous QoS features that ensure traffic is prioritized properly to deliver the best possible user experience for real-time applications like voice and video along with bandwidth-intensive graphic/video file uploads and downloads. IGMP snooping limits IP multicast traffic to the ports that requested it, enabling the rest of the network to operate at peak efficiency. Linksys smart switches support the latest 802.3at (PoE+) standards and provide up to double the power budget per Gigabit Ethernet port while offering 802.3af (PoE) backward-compatibility Power over Ethernet reduces electrical wiring costs, simplifies installation, and supports network devices such as IP cameras and wireless access points in optimal indoor and outdoor locations

Linksys LGS326P Network Switch Overview

Designed for business-class management, security, speed, and quality of service, Linksys Smart PoE+ Gigabit Switches provide a network your business can grow on.

Quality of Service (QoS)
Numerous QoS features ensure that traffic is prioritized properly to deliver the best possible user experience for real-time applications like voice and video along with bandwidth-intensive graphic/video file uploads and downloads. IGMP snooping limits IP multicast traffic to the ports that requested it, enabling the rest of the network to operate at peak efficiency.

Power over Ethernet Plus (PoE+)
Linksys smart switches support the latest 802.3at (PoE+) standards and provide up to double the power budget per Gigabit Ethernet port while offering 802.3af (PoE) backward-compatibility. Power over Ethernet reduces electrical wiring costs, simplifies installation, and supports network devices such as IP cameras and wireless access points in optimal indoor and outdoor locations.

More from the Manufacturer

Detailed Specs

Full specifications (PDF)

Interfaces/Ports

Total Number of Network Ports:

Token Ring Port:

LRE Port:

Uplink Port:

Bypass:

Modular:

Management Port:

USB:

Number of PoE+ (RJ-45) Ports:

Stack Port:

Number of Network (RJ-45) Ports:

Port/Expansion Slot Details:

26 x Gigabit Ethernet Network
2 x Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported:

Twisted Pair

Ethernet Technology:

Gigabit Ethernet

Network Technology:

10/100/1000Base-T

I/O Expansions

Number of Total Expansion Slots:

Expansion Slot Type:

SFP

Shared SFP Slot:

Yes

Number of SFP Slots:

Network & Communication

Layer Supported:

Management & Protocols

Manageable:

Yes

Management:

Web-Based Management
Telnet
DHCP
sFlow
SNMP 1/2c
RMON
QoS
VLAN
CLI

Memory

Standard Memory:

128 MB

Memory Technology:

DRAM

Power Description

PoE (RJ-45) Port:

Yes

Input Voltage:

110 V AC
220 V AC

Power Source:

Power Supply

Physical Characteristics

Color:

Black
Blue

Compatible Rack Unit:

Form Factor:

Rack-mountable

Height:

1.7"

Width:

17.3"

Depth:

7.9"

Weight (Approximate):

6.81 lb

Miscellaneous

Certifications & Standards:

IEEE Standards:

802.3ad
802.1d
802.1w
802.3u
802.3ab
802.3z
802.3x
802.1q
802.1x
802.3af
802.3at
802.3az
802.1p

Security

802.1x Radius Authentication
DHCP Snooping
IP-MAC Binding
Port Security supports Limited Dynamic Lock and Locked MAC Address
Management Access Control

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0745883634811, 4973163141407, 4973163141506

UPC: 745883634811

EAN: 0745883634811, 4973163141407, 4973163141506

UNSPSC: 43222612
