Device Supported:
- Notebook
- Ultra Mobile PC
- Tablet PC
Lind Electronics PA1555I-2194 Accessory
Part Number:
PA1555I-2194
Lind Electronics Power Supplies and Accessories Accessory Model Overview
Lind Electronics specializes in providing leading-edge mobile power solutions to the Military, Public Safety, Warehousing industries and other industries where high-grade power solution products are required. Lind offers AC/DC and DC/DC power adapters, shutdown timers, auxiliary power packs, battery chargers, stock and custom cables and other products that are designed to meet a wide variety of power and application requirements.
Lind Electronics PA1555I-2194 Accessory Overview

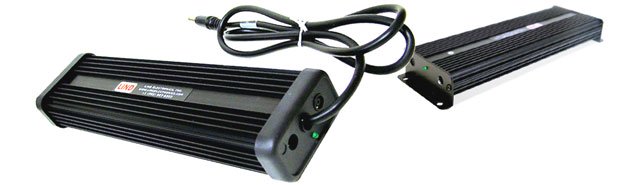

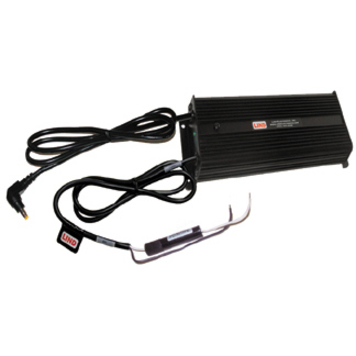

This Lind DC-DC Power Adapter provides a regulated DC output to power laptops and peripherals from a DC voltage source. Electrical isolation between input and output prevents ground loops and allows the output to be used as a negative voltage if required. The rugged design of Lind laptop power adapters make them ideally suited for use in harsh mobile environments. The adapter electronics is protected by a rugged Aluminum housing which is filled and sealed with epoxy that protects the electronics from damage due to shock, vibration and spilled liquids.
Technical Information
Power Description
Input Voltage Range:
20 V DC - 60 V DC
Output Voltage:
15.6 V DC
Maximum Output Current:
5.50 A
Physical Characteristics
Height:
9.3"
Width:
3"
Depth:
1.2"
Weight (Approximate):
1.56 lb
Miscellaneous
Package Contents:
- PA1555I-2194 DC Converter
- Bare Wire Input Cable 72" Fused 10A,Hardwired to Adapter (CBLIP-F01016)
- Output Cable to Computer 72" Hardwired to Adapter(CBLIO-F00528)
Compatibility:
- Panasonic U1 Ultra Mobile PC Series
- Panasonic 19 Toughbook Convertible Tablet PC
Panasonic Toughbook Notebook Series:
- C1
- F8
- F9
- H1
- R1
- R4
- R5
- T1
- T2
- T4
- T5
- T7
- T8
- W2
- W4
- W5
- W7
- W8
- Y2
- Y4
- Y5
- 18
- 29
- 30
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
0767377006591, 0818263273747, 0996590554811, 0997249314794
UPC:
767377006591, 818263273747, 996590554811, 997249314794
EAN:
0767377006591, 0818263273747, 0996590554811, 0997249314794
UNSPSC:
39121006
